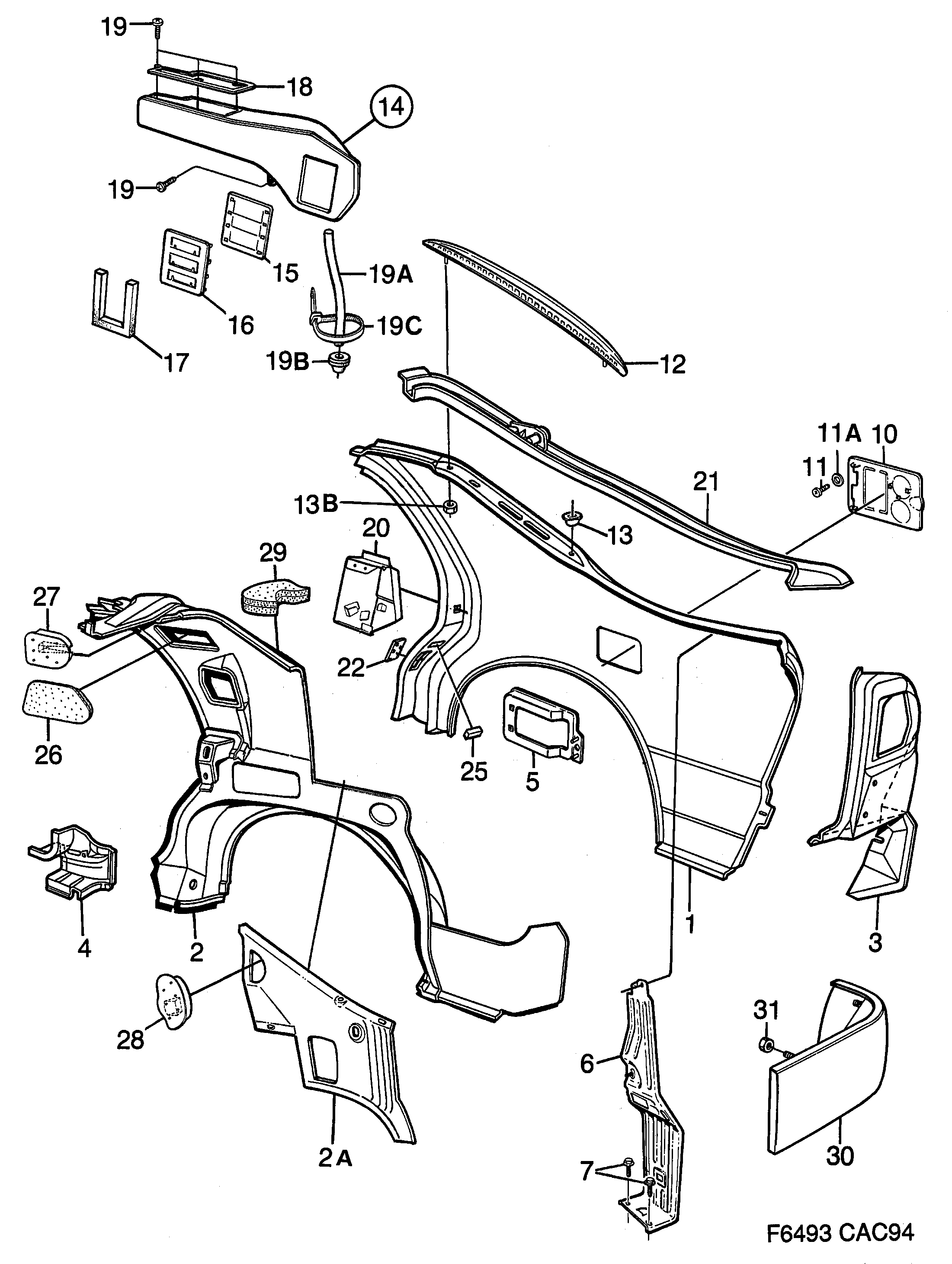

360: Carrosserie, extérieur - Corps de carrosserie - Tôle latérale
(1994 - 1998 | 5CS) | Pour 9000 (1997)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 4293130 30542775 Tôle latérale Extérieur | LH | 1 | |||
| 1 | 4293122 30542776 Tôle latérale Extérieur | RH | 1 | |||
| 2 | 4293114 Tôle latérale Intérieur | LH | 1 | |||
| 2 | 4293106 Tôle latérale Intérieur | RH | 1 | |||
| 2A | 4294716 30545646 Tôle support LH | 1 | |||
| 2A | 4294708 Tôle support RH | 1 | |||
| 3 | 4293171 30542779 Coin LH | 1 | |||
| 3 | 4293163 30542780 Coin RH | 1 | |||
| 4 | 4293478 Prolongement LH | 1 | |||
| 4 | 4293460 Prolongement RH | 1 | |||
| 5 | 4293791 30542783 Tôle fixation RH | 1 | |||
| 6 | 1 | ||||
| 6 | 4269759 Tôle support RH | 1 | |||
| 7 | 7978091 11900353 Vis | 3 | |||
| 10 | 4306171 Porte réservoir | 1 | |||
| 11 | 7978091 11900353 Vis | 2 | |||
| 11A | 8029951 Rondelle | 1 | |||
| 12 | 4383667 Grille d'évacuation LH | 1 | |||
| 12 | 4383659 Grille d'évacuation RH | 1 | |||
| 13 | 9630526 Pince serrage | 4 | |||
| 13B | 7974298 92153044 Ecrou | 2 | |||
| 14 | 4635264 Caisse 1996-1998 | LH | 1 | |||
| 14 | 4635256 Caisse 1996-1998 | RH | 1 | |||
| 15 | 4072062 Soupape | 1 | |||
| 16 | 4072070 Support | 1 | |||
| 17 | 4072104 Joint | 1 | |||
| 18 | 4072120 Joint | 1 | |||
| 19 | 4087938 Vis 1996-1998 | 8 | |||
| 19A | 4382990 Durit drainage | 2 | |||
| 19B | 9254707 Passe-câble | 2 | |||
| 19C | 7971864 Ruban serrage | 2 | |||
| 20 | 4293197 Support LH | 1 | |||
| 20 | 4293189 Support RH | 1 | |||
| 21 | 4293155 Gouttière LH | 1 | |||
| 21 | 4293148 Gouttière RH | 1 | |||
| 22 | 9267527 Couvercle | 2 | |||
| 25 | 4101721 Joint | 2 | |||
| 26 | 4101358 Joint LH | 1 | |||
| 26 | 4101366 Joint RH | 1 | |||
| 27 | 4293676 30541919 Joint LH | 1 | |||
| 27 | 4293668 30541918 Joint RH | 1 | |||
| 28 | 4101374 Joint LH | 1 | |||
| 28 | 4101341 Joint RH | 1 | |||
| 29 | 4101606 Joint | 2 | |||
| 30 | 4295119 Coin 1995- | LH | 1 | |||
| 30 | 4295101 30561313 Coin 1995- | RH | 1 | |||
| 31 | 7977929 11900451 Ecrou | 8 | |||
