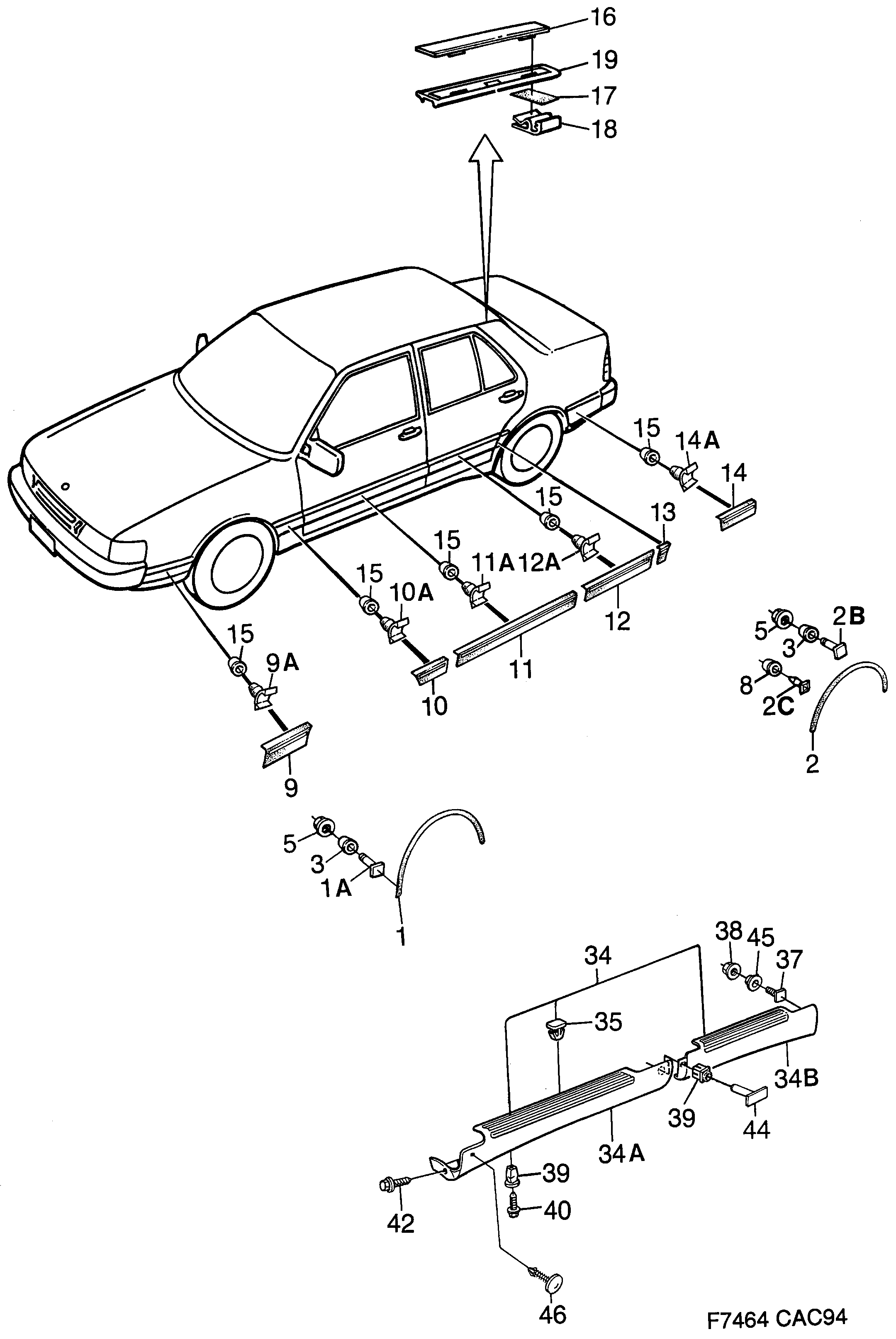

870: Carrosserie, extérieur - Eléments extérieurs - Enjoliveur
(1995 - 1997 | 4D) | Pour 9000 (1997)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9089632 Baguette de passage roue LH | 1 | |
| 1 | 9089624 Baguette de passage roue RH | 1 | |
| 1A | 7399470 Vis | 7 | |
| 2 | 4484291 Baguette de passage roue LH | 1 | |
| 2 | 4484283 Baguette de passage roue RH | 1 | |
| 2B | 7399470 Vis | 2 | |
| 2C | 9253329 Clip | 4 | |
| 3 | 9278151 30521853 Bague | 14 | |
| 5 | 7399488 Ecrou | 22 | |
| 8 | 7373269 Bague | X | |
| 9 | 9088550 Enjoliveur LH | 1 | |
| 9 | 9088543 Enjoliveur RH | 1 | |
| 9A | 9083312 Clip | 3 | |
| 10 | 9083254 Enjoliveur LH | 1 | |
| 10 | 9083247 Enjoliveur RH | 1 | |
| 10A | 9083312 Clip | 2 | |
| 11 | 9083098 Enjoliveur LH | 1 | |
| 11 | 9083080 Enjoliveur RH | 1 | |
| 11A | 9083312 Clip | 7 | |
| 12 | 9083130 Enjoliveur LH | 1 | |
| 12 | 9083122 Enjoliveur RH | 1 | |
| 12A | 9083312 Clip | 5 | |
| 13 | 4343976 Enjoliveur LH | 1 | |
| 13 | 4343968 Enjoliveur RH | 1 | |
| 14 | 4343190 Enjoliveur LH | 1 | |
| 14 | 4343182 Enjoliveur RH | 1 | |
| 14A | 9083312 Clip | 4 | |
| 15 | 7373269 Bague | 46 | |
| 16 | 4674016 Enjoliveur LH | 1 | |
| 16 | 4674008 Enjoliveur RH | 1 | |
| 17 | 9288127 Ruban | 2 | |
| 18 | 9269697 Clip | 4 | |
| 19 | 9277336 Enjoliveur LH | 1 | |
| 19 | 9277344 Enjoliveur RH | 1 | |
| 34 | 8284705 Jeu LH | 1 | |
| 34A | 6962138 Protection seuil | 1 | |
| 34B | 6962153 Protection seuil | 1 | |
| 35 | 4102000 Pince serrage | 7 | |
| 34 | 8284713 Jeu RH | 1 | |
| 34A | 6962120 Protection seuil | 1 | |
| 34B | 6962146 Protection seuil | 1 | |
| 35 | 4102000 Pince serrage | 7 | |
| 37 | 6959464 Vis | 4 | |
| 38 | 7399488 Ecrou | 4 | |
| 39 | 4008504 Ecrou | 12 | |
| 40 | 7982325 92153216 Vis | 10 | |
| 42 | 7982325 92153216 Vis | 4 | |
| 44 | 4447967 Rivet expansif | 2 | |
| 45 | 4089934 Bague | 4 | |
| 46 | 9668153 92152407 Clip | 2 | |
7496029 Kit montage baguette de passage roue | 1 | ||
7496037 Kit montage baguette de passage roue | 1 |
