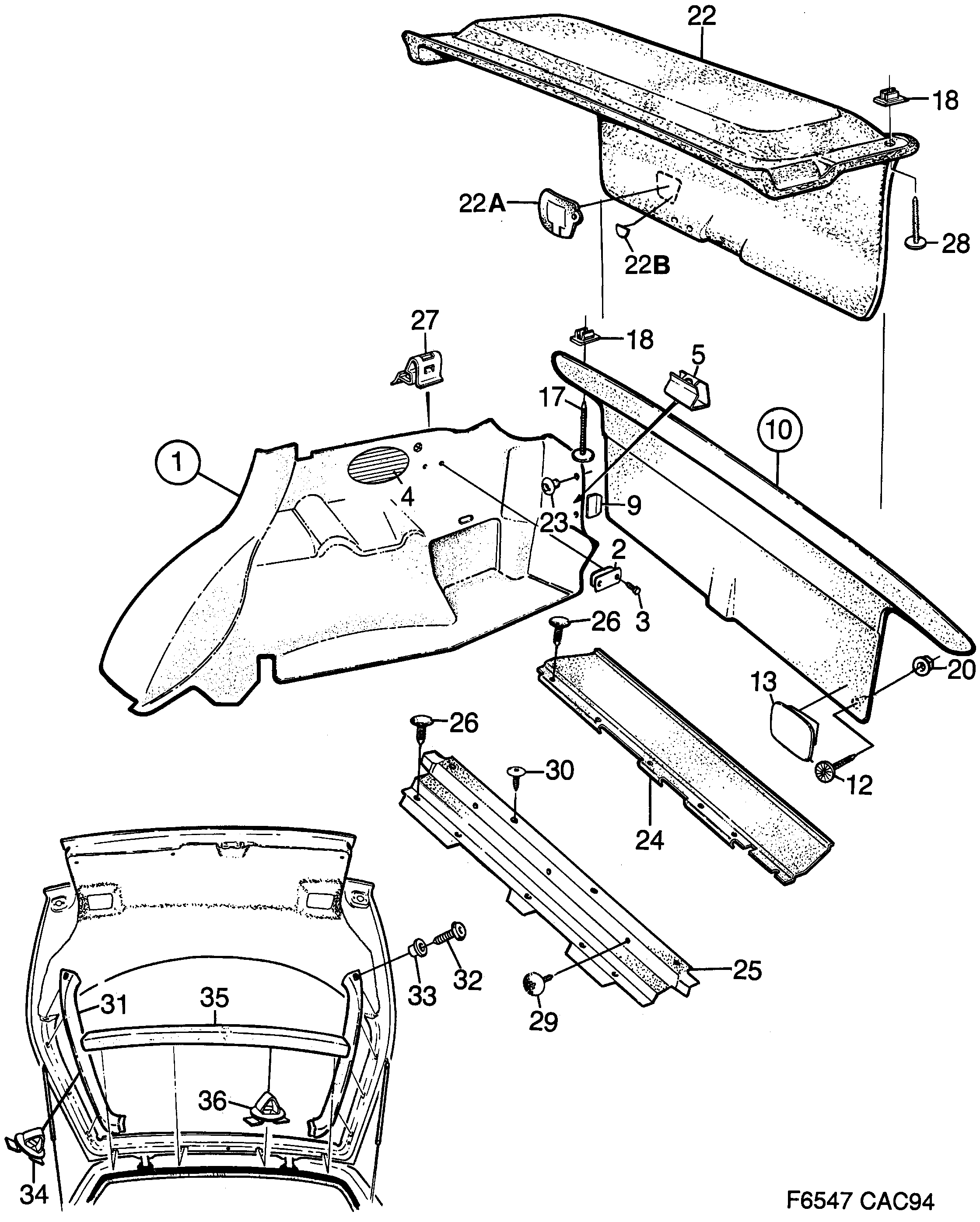

1050: Carrosserie, intérieur - Garnitures - Coffre à bagages
(1994 - 1998) | Pour 9000 (1998)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 4705547 30561331 Garniture habitacle 1995- | LH | 1 | |||
| 1 | 4705554 30561332 Garniture habitacle 1995- | RH | 1 | |||
| 2 | 1 | ||||
| 3 | 2 | ||||
| 4 | 1 | ||||
| 5 | 4140315 Pince serrage | 1 | |||
| 9 | 4269874 Tôle | 1 | |||
| 10 | 9083395 Garniture habitacle | 1 | |||
| 12 | 9491689 Vis rapide | 2 | |||
| 13 | 9084633 Capot | 2 | |||
| 17 | 9491689 Vis rapide | X | |||
| 18 | 8452898 Ecrou rapide | X | |||
| 20 | 9473877 Douille | 6 | |||
| 23 | 4741211 Ecrou poussoir 1995- | 4 | |||
| 25 | 9088659 Protection seuil | 1 | |||
| 25 | 9087057 Protection seuil | 1 | |||
| 26 | 9668153 92152407 Clip | 3 | |||
| 30 | 9771320 Vis | 4 | |||
| 31 | 9087412 Anti-chocs LH | 1 | |||
| 31 | 9087404 Anti-chocs RH | 1 | |||
| 32 | 9771320 Vis | 1 | |||
| 33 | 4262242 Douille | 1 | |||
| 34 | 9087438 Clip | 3 | |||
| 35 | 9087420 Anti-chocs | 1 | |||
| 36 | 9087438 Clip | 4 | |||
| 39 | 9591637 Couvercle | 3 | |||
