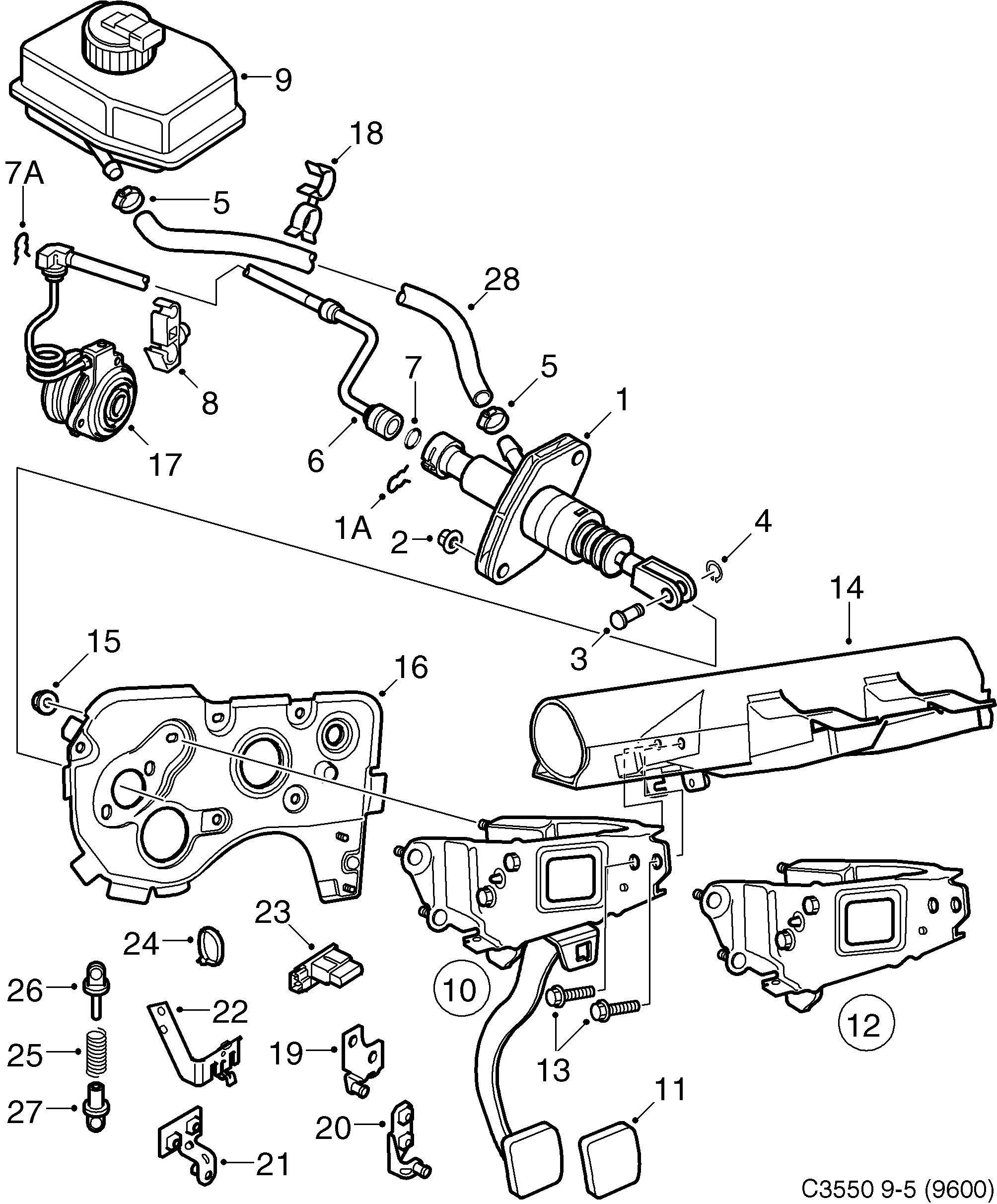

130: Transmission - Commande d'embrayage - Pédale, maître-cylindre
(1998 - 2001 | M) | Pour 9-5 (9600) (2000)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 4926952 Cylindre embrayage 1999-2001, LHD | 1 | |||
| 1 | 5163480 90490740 Cylindre embrayage 1999-, RHD | 1 | |||
| 1A | 4940722 Anneau verrouillage | 1 | |||
| 2 | 7971922 92150143 Ecrou | X | |||
| 3 | 4345435 90222680 Clavette | 1 | |||
| 4 | 4345443 90278102 Clip | 1 | |||
| 5 | 7977697 90530642 Collier serrage | 2 | |||
| 6 | 4926960 Flexible 1999-2001, LHD | 1 | |||
| 6 | 4926978 Flexible 1999-2001, RHD | 1 | |||
| 7 | 4940706 Joint torique | 1 | |||
| 7A | 4940714 Anneau verrouillage | 1 | |||
| 8 | 4579363 90189770 Collier de serrage RHD | 1 | |||
| 9 | |||||
| 10 | 5063649 24405518 Console 2000-2001, LHD | 1 | |||
| 10 | 4687638 90539467 Console RHD | 1 | |||
| 10 | 4839692 Console LHD | 1 | |||
| 11 | 4688586 90468789 Patin caoutchouc de pédale | 1 | |||
| 12 | 4565610 90495678 Console LHD | 1 | |||
| 12 | 4565628 Console 1998-2000, RHD | 1 | |||
| 13 | 7978190 55566034 Vis 2000-2001, LHD | 4 | |||
| 13 | 7978190 55566034 Vis 2000-2001, RHD | 2 | |||
| 14 | |||||
| 15 | 4345419 90191908 Ecrou | 3 | |||
| 16 | |||||
| 17 | |||||
| 18 | 7399652 Collier serrage RHD | 1 | |||
| 19 | 4686713 Console 2000-2001, LHD | B235R | 1 | |||
| 20 | 4686705 Console 2000-2001, LHD | B235R | 1 | |||
| 21 | 4686721 Console 2000-2001, RHD | B235R | 1 | |||
| 22 | 4839684 Fixation LHD | 1 | |||
| 23 | |||||
| 24 | 11900513 Ruban serrage LHD | 1 | |||
| 25 | 4686747 Ressort 2000-2001 | B235R | 1 | |||
| 26 | 4687901 Coupelle ressort 2000-2001 | B235R | 1 | |||
| 27 | 4000394 Coupelle ressort 2000-2001 | B235R | 1 | |||
| 28 | 5163498 Flexible 1998-2001, LHD | 1 | |||
| 28 | 5163506 Flexible RHD | 1 | |||
