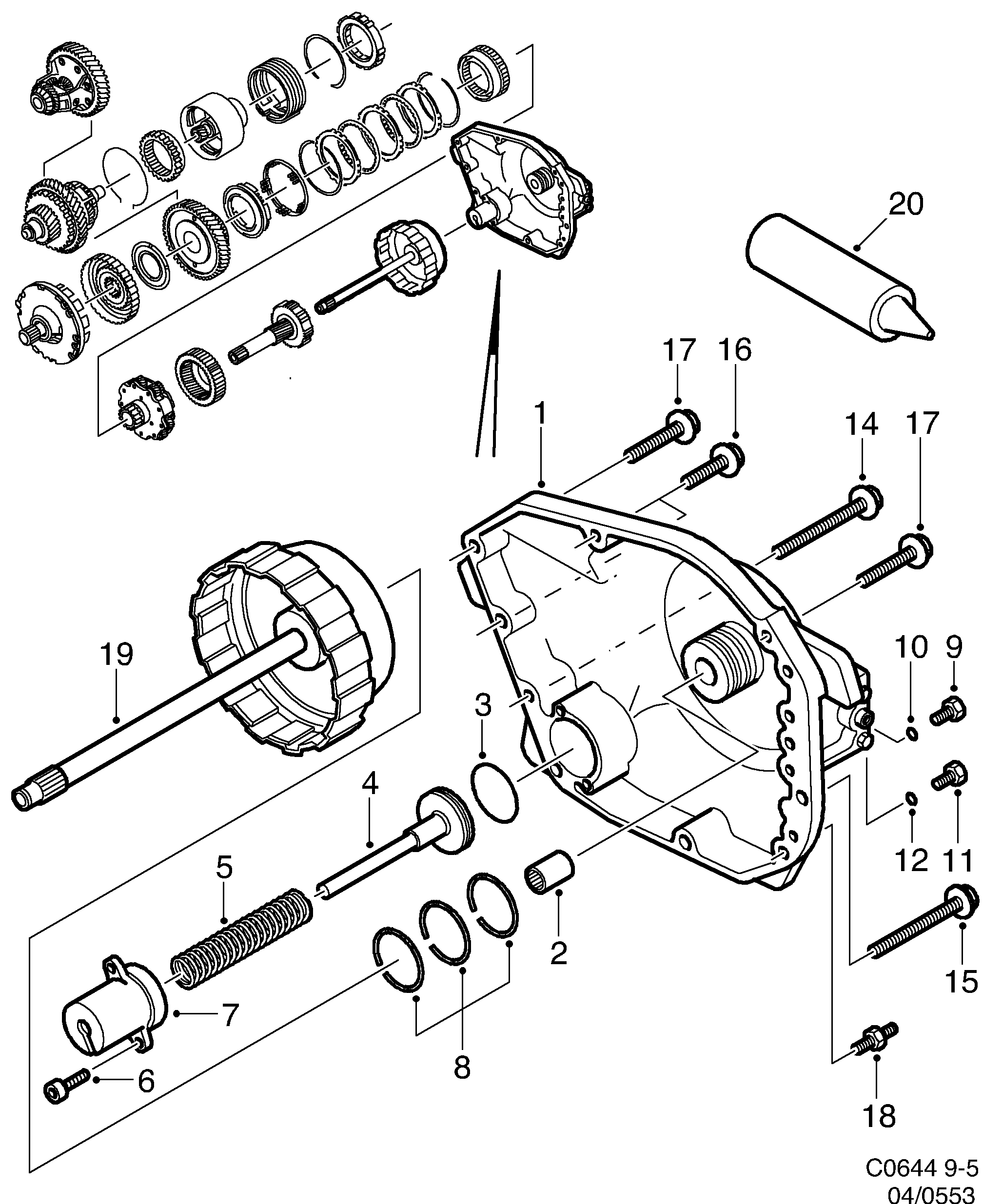

553: Transmission - Boîte de vitesses, automatique - Couvercle extrémité
(1998 - 2001 | A) | Pour 9-5 (9600) (2000)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 5164918 Couvercle | 1 | |||
| 2 | 5447255 Roulement aiguilles | 1 | |||
| 3 | 5164926 93188441 Joint torique | 1 | |||
| 4 | 5164934 Piston | 1 | |||
| 5 | 5164942 Ressort pression | 1 | |||
| 6 | 5255351 90399357 Vis | 2 | |||
| 7 | 5164959 Capot | 1 | |||
| 8 | 5164967 90512224 Joint torique | 3 | |||
| 9 | 4491155 5164975 Tampon | 1 | |||
| 10 | 4491163 Joint torique | 1 | |||
| 11 | 4491072 90007874 Tampon | 4 | |||
| 12 | 4491080 90007873 Joint torique | 4 | |||
| 14 | 5164868 90399339 Vis M8 x 45 | 3 | |||
| 15 | 5250030 90399340 Vis M8 x 48 | X | |||
| 16 | 5250014 90541805 Vis M6 x 16 | 2 | |||
| 17 | 5250022 Vis M8 x 25 | 2 | |||
| 18 | 5250006 55352223 Vis M8 x 48 | 1 | |||
| 19 | |||||
| 20 | 5164637 93165267 Instajoint | X | |||
