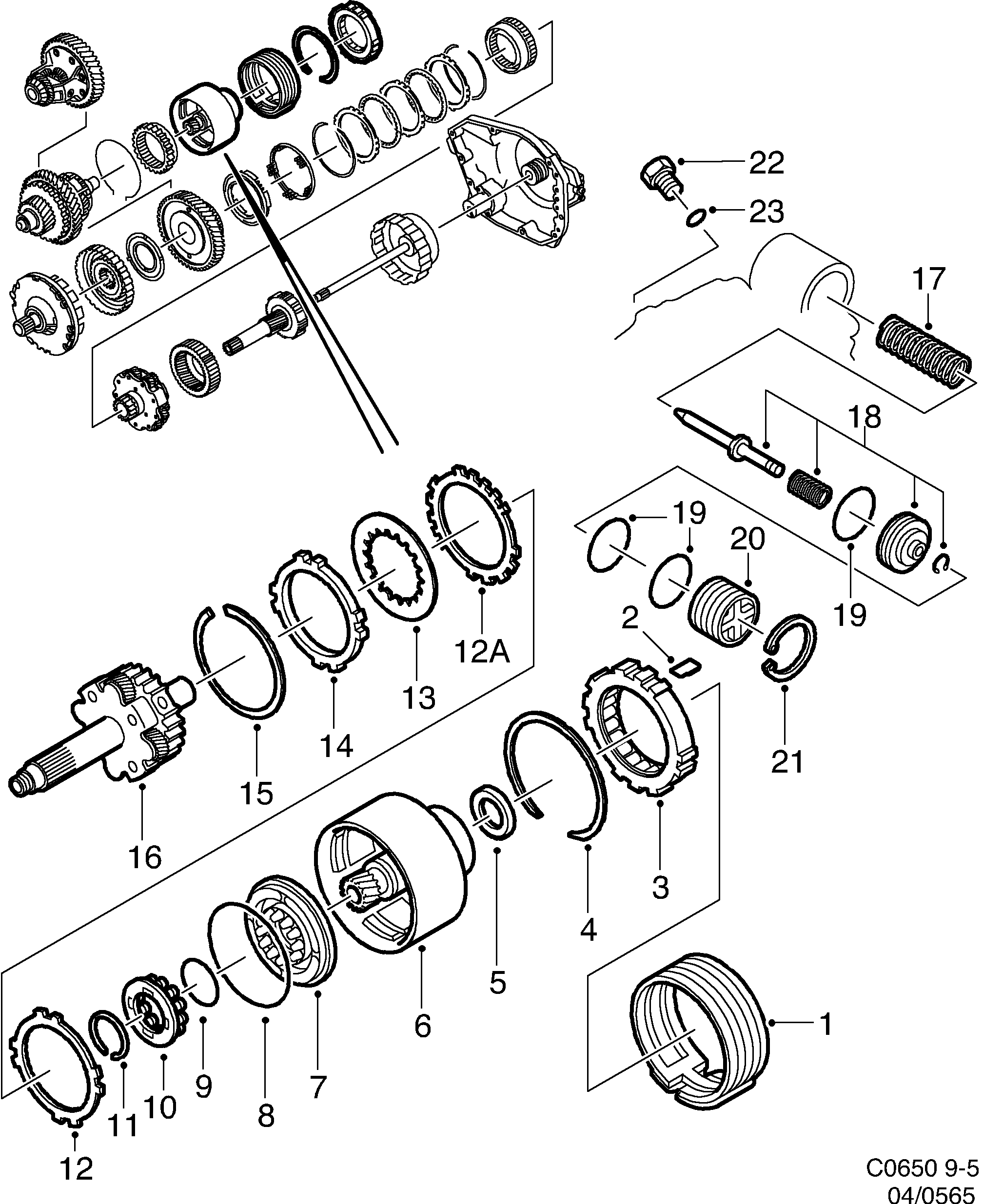

565: Transmission - Boîte de vitesses, automatique - Coupleur C3 et roue libre F3 - Frein B4
(1998 - 2001 | A, M) | Pour 9-5 (9600) (2001)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 5251210 Ruban frein | 1 | |||
| 2 | 5251194 Retenue | 1 | |||
| 3 | 5251202 Embrayage | 1 | |||
| 4 | 5251186 Anneau verrouillage | 1 | |||
| 5 | 5251061 Rondelle d'angl | 1 | |||
| 6 | 5250931 93166901 Tambour | 1 | |||
| 6 | 93166901 Tambour | 1 | |||
| 7 | 5250964 Piston | 1 | |||
| 8 | 5250949 Joint torique | 1 | |||
| 9 | 5253612 93178241 Joint torique | 1 | |||
| 10 | 5250980 90348847 Ressort rappel | 1 | |||
| 11 | 5250972 90348849 Anneau verrouillage | 1 | |||
| 12 | 5251004 Plaque | 1 | |||
| 12A | 5250998 90541983 Plaque | 4 | |||
| 13 | 5251012 Disque | 4 | |||
| 14 | 5251020 Disque | 1 | |||
| 14 | 5251038 Disque | 1 | |||
| 14 | 5251046 Disque | 1 | |||
| 15 | 5251053 Anneau verrouillage | 1 | |||
| 16 | 1 | ||||
| 17 | 5251251 Ressort pression | 1 | |||
| 18 | 5251236 Piston L=70.5MM | 1 | |||
| 18 | 5251244 Piston L=72MM | 1 | |||
| 19 | 5251228 90542004 Joint torique | 3 | |||
| 20 | 5251269 Couvercle | 1 | |||
| 21 | 5251277 90542006 Anneau verrouillage | 1 | |||
| 22 | 5251285 93185203 Tampon | 1 | |||
| 23 | 5164421 90348863 Joint torique | 1 | |||
