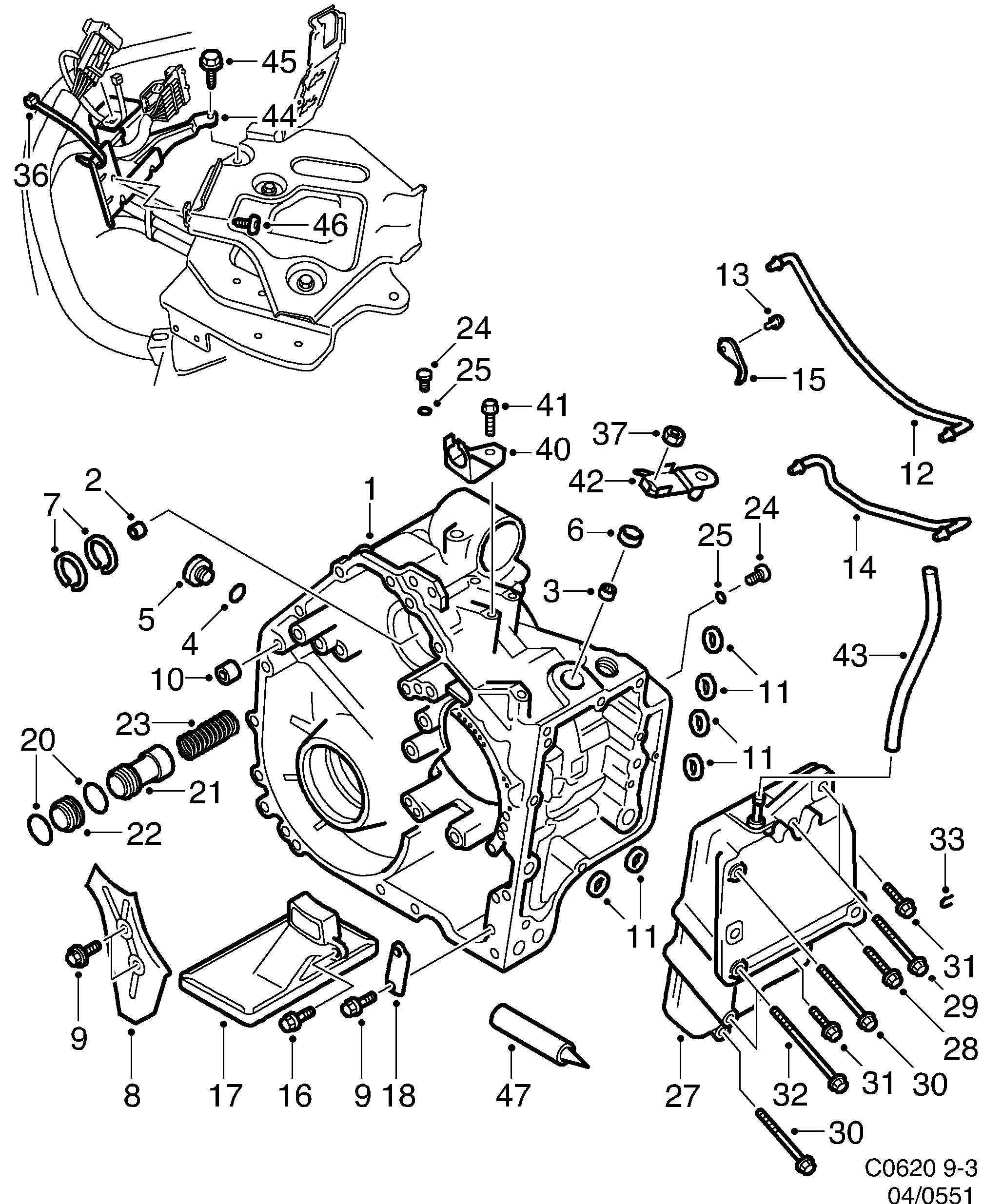

551: Transmission - Boîte de vitesses, automatique - Carter de boîte vitesses, couvercle
(1998 - 2003 | A) | Pour 9-3 (9400) (1998)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 5253117 Carter boîte vitesses | 1 | |||
| 2 | 5255047 90369298 Roulement aiguilles | 1 | |||
| 3 | 5259536 90348717 Roulement aiguilles | 1 | |||
| 4 | 5164421 90348863 Joint torique | 1 | |||
| 5 | 5448451 Tampon | 1 | |||
| 6 | 4491064 90348718 Joint | 1 | |||
| 7 | 5164454 Bague étanchéité | 1 | |||
| 8 | 5164462 Anti-éclaboussures | 1 | |||
| 9 | 5164470 55352202 Vis | 4 | |||
| 10 | 5164488 90369297 Joint | 1 | |||
| 11 | 5164496 90348723 Joint | 6 | |||
| 12 | 5164504 90512194 Tuyau | 1 | |||
| 13 | 5255351 90399357 Vis | 1 | |||
| 14 | 5253042 Tuyau | 1 | |||
| 15 | 5164538 90348727 Pince serrage | 1 | |||
| 16 | 5164546 Vis | 1 | |||
| 17 | 5164553 90541934 Crépine d'huile | 1 | |||
| 18 | 5164561 90348729 Plaque | 1 | |||
| 20 | 5164579 90007861 Joint torique | 2 | |||
| 21 | 5253067 Piston | 1 | |||
| 22 | 5164595 90348731 Capot | 1 | |||
| 23 | 5164603 90348732 Ressort pression | 1 | |||
| 24 | 4491072 90007874 Tampon | 2 | |||
| 25 | 4491080 90007873 Joint torique | 2 | |||
| 27 | 5164413 30587477 Couvercle | 1 | |||
| 28 | 4491106 90399336 Vis M8 x 40 | 1 | |||
| 29 | 4491114 90399342 Vis M8 x 57 | 2 | |||
| 30 | 4491122 90399343 Vis M8 x 72 | 2 | |||
| 31 | 4491130 90399359 Vis M8 x 28 | 2 | |||
| 32 | 5164686 Vis M8 x 105 | 2 | |||
| 33 | 5164694 Collier serrage 4-CYL TURBO | 1 | |||
| 36 | 92150191 11900513 Ruban serrage | X | |||
| 37 | 8074288 11900440 Ecrou | X | |||
| 40 | 4626222 Support | 1 | |||
| 41 | 8082935 Vis | 2 | |||
| 42 | 4387437 Tige changement vitesse | 1 | |||
| 43 | 4238242 Durit purge -2002 | 1 | |||
| 44 | 4625828 Console | 1 | |||
| 45 | 7978091 11900353 Vis | 1 | |||
| 46 | 8441503 Vis | 1 | |||
| 47 | 5164637 93165267 Instajoint | X | |||
