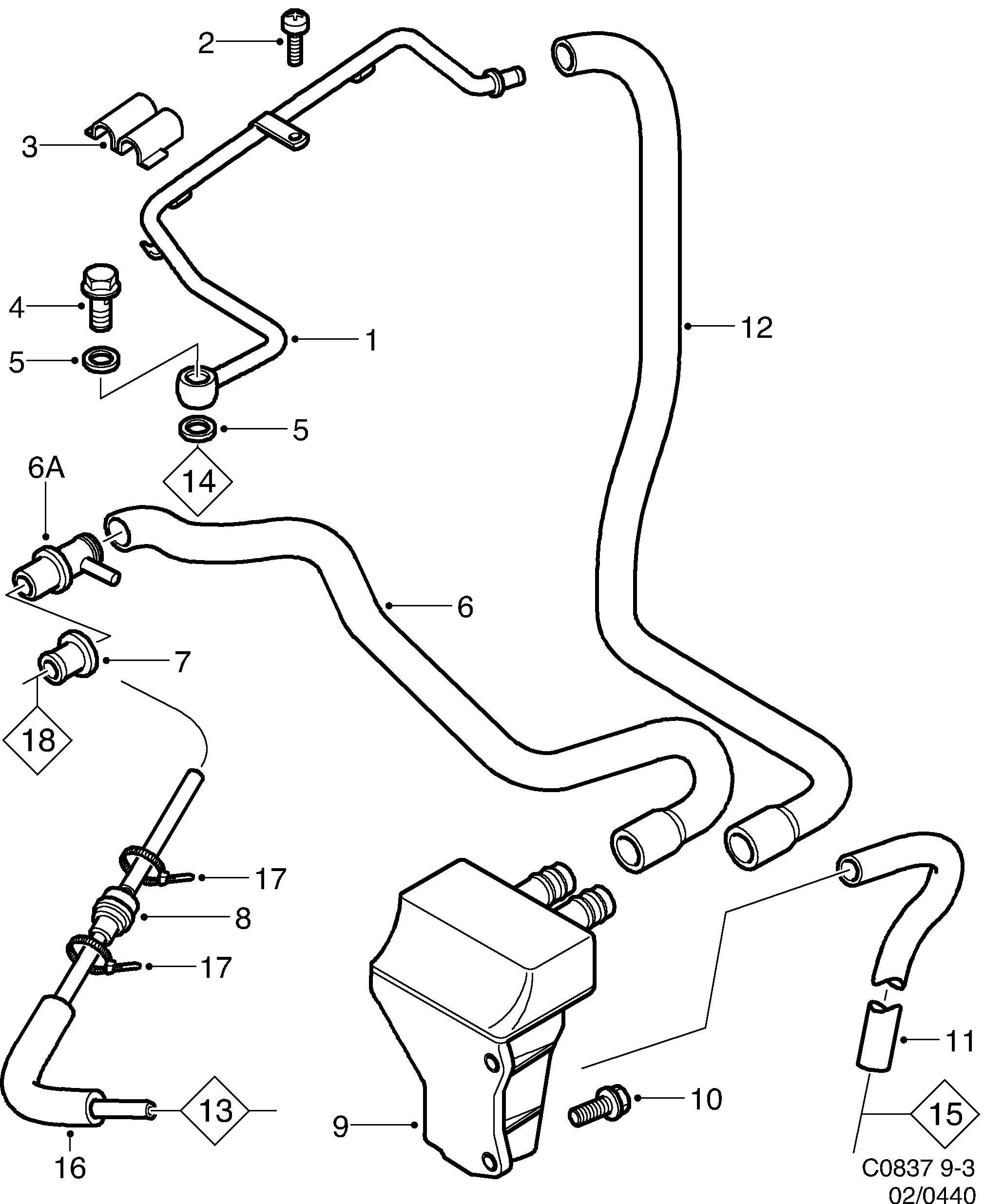

440: Moteur - Système de graissage - Ventilation de carter supérieur
(1999 - 2003 | B205E, B205L, B205R, B235E, B235R) | Pour 9-3 (9400) (2000)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 9183849 30567027 Tuyau | 1 | |||
| 2 | 9145764 30551902 Vis | 1 | |||
| 3 | 4685905 90344674 Pince serrage | 1 | |||
| 4 | 7583628 Vis 1999-2000 | B205 | 1 | |||
| 4 | 5125067 5125224 Vis 1999-2000 | B235 | 1 | |||
| 5 | 8124158 Joint | 2 | |||
| 6 | 55560463 Flexible | 1 | |||
| 6A | 30588567 55560443 Raccord 1999- | (91 92 949) | 1 | |||
| 7 | 7515190 9549593 Bague -2001 | 1 | |||
| 8 | 9197740 9399973 Flexible 2000-2000 | 1 | |||
| 8 | 9399973 Flexible 2000- | 1 | |||
| 9 | 9187790 Capteur huile 1999-2000 | 1 | |||
| 10 | 7978190 55566034 Vis | 2 | |||
| 11 | 9172115 55560445 Flexible | 1 | |||
| 12 | 55560462 Flexible | 1 | |||
| 13 | |||||
| 14 | |||||
| 15 | |||||
| 16 | 9187998 Flexible | 1 | |||
| 17 | 7971864 Ruban serrage | 2 | |||
| 18 | |||||
