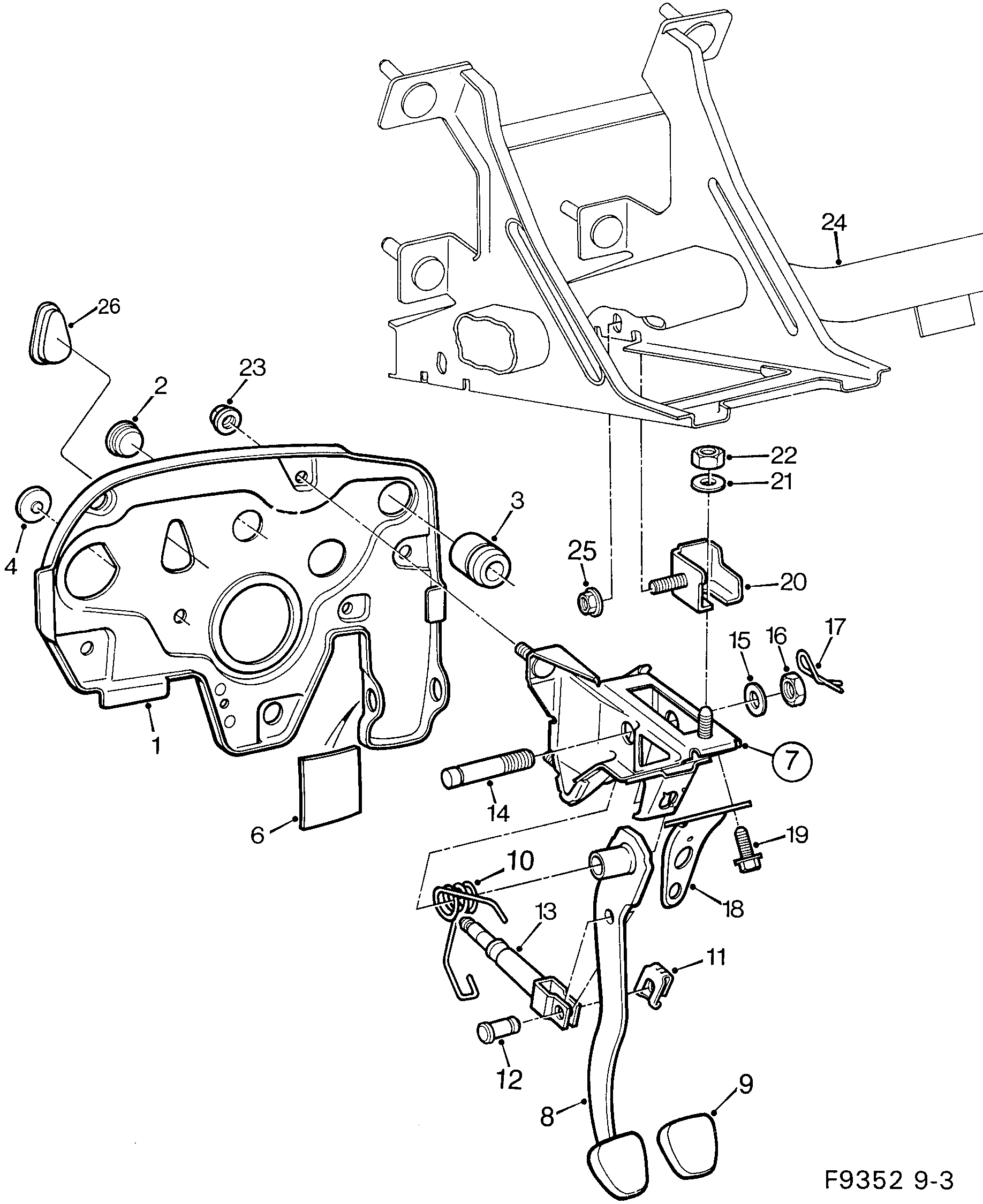

250: Freins - Circuit de frein au pied - Commande du frein au pied
(1998 - 2003) | Pour 9-3 (9400) (2000)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 4647996 Tôle auvent LHD | 1 | |||
| 1 | 4647988 Tôle auvent RHD | 1 | |||
| 3 | 4245635 90156374 Joint | 1 | |||
| 4 | 4345724 Joint | X | |||
| 6 | 4242087 Plaque entretoise | 1 | |||
| 7 | 4398897 Console LHD | 1 | |||
| 7 | 4398939 Console LHD | 1 | |||
| 7 | 4398905 Console RHD | 1 | |||
| 7 | 5058805 Console 1998-, RHD | 1 | |||
| 8 | 4244547 90288481 Pédale frein LHD | 1 | |||
| 8 | 4244570 90288482 Pédale frein LHD | 1 | |||
| 8 | 90288483 Pédale frein RHD | (42 41 840) | 1 | |||
| 8 | 90538473 Pédale frein 1998-, RHD | (50 58 813) | 1 | |||
| 9 | 4241832 90105172 Patin caoutchouc de pédale | 1 | |||
| 9 | 4244612 4688594 Patin caoutchouc de pédale LHD | 1 | |||
| 9 | 4244612 4688594 Patin caoutchouc de pédale 1998-, RHD | 1 | |||
| 10 | 90304944 Ressort rappel | 1 | |||
| 11 | 4345443 90278102 Clip | 1 | |||
| 12 | 4345435 90222680 Clavette | 1 | |||
| 13 | 90468840 Tige piston (46 88 610) | 1 | |||
| 14 | 4241865 Vis | 1 | |||
| 15 | 8073108 Rondelle | 1 | |||
| 16 | 4345047 Ecrou | 1 | |||
| 17 | 4241881 90373365 Ressort verrouillage | 1 | |||
| 18 | 4246591 Console LHD | 1 | |||
| 18 | 4247003 Console RHD | 1 | |||
| 19 | 7985138 Vis | 3 | |||
| 20 | 4212148 90193008 Support de pédale | 1 | |||
| 21 | 4345344 Rondelle | 1 | |||
| 22 | 7971922 92150143 Ecrou | 1 | |||
| 23 | 4345419 90191908 Ecrou | 4 | |||
| 24 | |||||
| 25 | 7971922 92150143 Ecrou | 1 | |||
| 26 | 4838025 Obturateur en caoutchouc | 1 | |||
