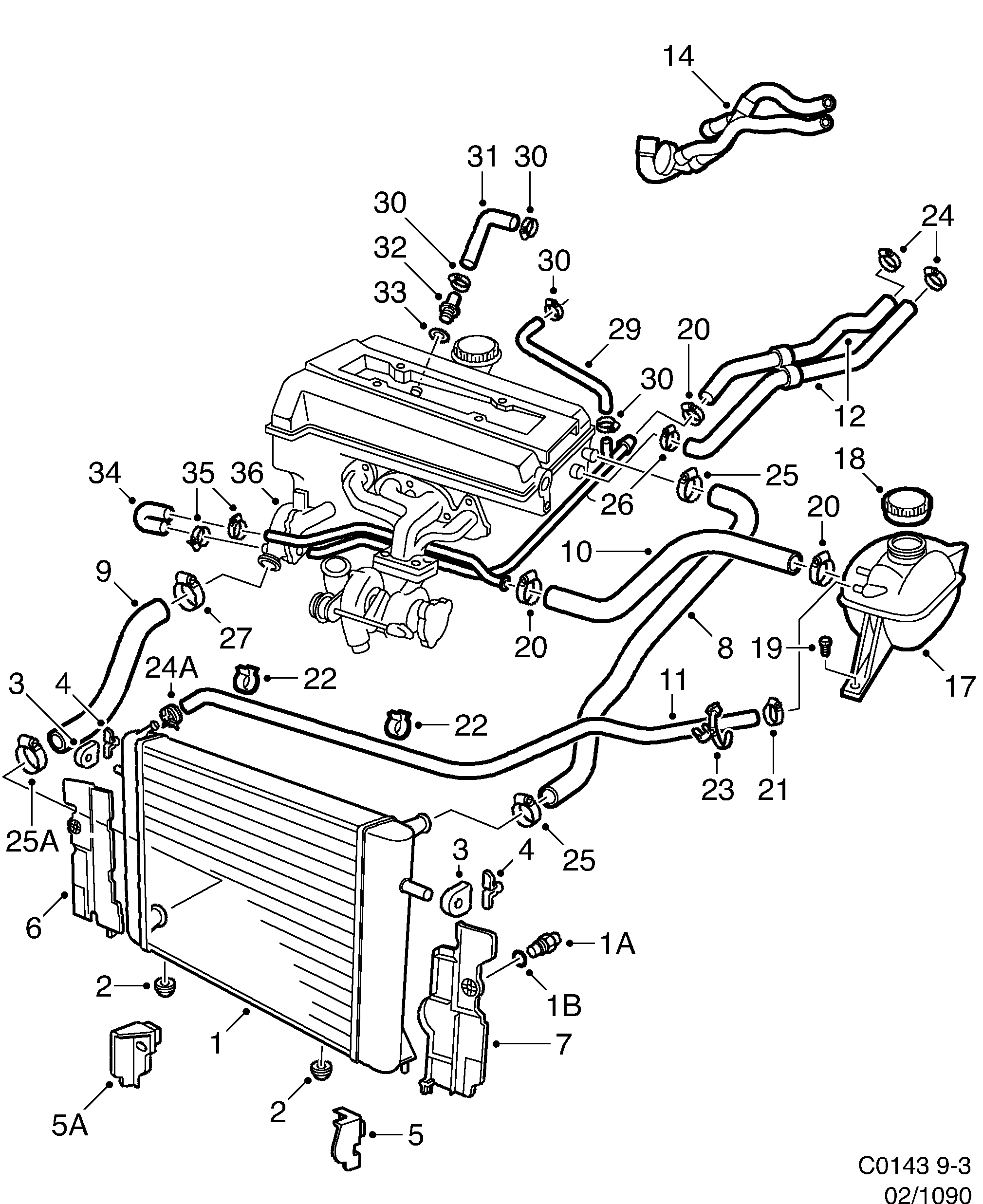

1090: Moteur - Système de refroidissement
(1998 - 2003 | B205E, B205L, B205R, B235E, B235R) | Pour 9-3 (9400) (2003)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 4729562 Radiateur TURBO | 1 | |||
| 1 | 4729596 Radiateur TURBO | 1 | |||
| 1A | 4356408 Bouchon drainage | 1 | |||
| 1B | 4356416 Joint torique | 1 | |||
| 2 | 4727871 Bague caoutchouc | 2 | |||
| 3 | 4727863 Bague caoutchouc | 2 | |||
| 4 | 4283586 Clip | 2 | |||
| 5 | 4728937 Ecran air LH | 1 | |||
| 5A | 4728945 Ecran air RH | 1 | |||
| 6 | 4729463 Ecran air AC,ACC | 1 | |||
| 7 | 4729455 Ecran air | 1 | |||
| 8 | 4964789 Durit radiateur 2000-2003 | 1 | |||
| 9 | 4963872 Durit radiateur 1999-2003 | 1 | |||
| 10 | 4961363 Durit radiateur 2000-2003 | 1 | |||
| 11 | 4876603 Durit radiateur | 1 | |||
| 12 | 4961074 Kit durits radiateur 2000-2003, LHD | ALT. SEE POS 14 | 1 | |||
| 12 | 4961090 Kit durits radiateur 2000-2003, RHD | ALT. SEE POS 14 | 1 | |||
| 14 | 4961116 Kit durits radiateur 2000-2003, LHD | Pour marché tropical; ME, LA, AU, HK, SG, TH, CY | 1 | |||
| 14 | 4961132 Kit durits radiateur 2000-2003, RHD | Pour marché tropical; ME, LA, AU, HK, SG, TH, CY | 1 | |||
| 17 | 4356382 Vase expansion Sans alarme de niveau | 1 | |||
| 17 | 4356390 Vase expansion Avec alarme de niveau | 1 | |||
| 18 | 4395513 Couvercle | 1 | |||
| 19 | 7978661 Vis à tête hexagonale | 1 | |||
| 20 | 4685947 Collier serrage | 3 | |||
| 21 | 4348231 Collier serrage | 1 | |||
| 22 | 92150209 11900515 Collier serrage | 2 | |||
| 23 | 7539984 Collier serrage | 1 | |||
| 24 | 4940326 Collier serrage | 2 | |||
| 24A | 4940334 90490543 Collier serrage | 1 | |||
| 25 | 7970106 Collier serrage | 2 | |||
| 25A | 13136147 Collier serrage | 2 | |||
| 26 | 4940318 Collier serrage | 1 | |||
| 27 | 90490542 Collier serrage (48 97 757) | 1 | |||
| 29 | 9186883 55558930 Flexible 2001-2003 | 1 | |||
| 30 | 4348231 Collier serrage 2001-2003 | 4 | |||
| 31 | 9138587 Flexible | 1 | |||
| 32 | 7486806 Raccord | 1 | |||
| 33 | 8326712 4161162 Joint | 1 | |||
| 34 | 9178849 55558952 Flexible | 1 | |||
| 35 | 4685947 Collier serrage | 2 | |||
| 36 | |||||
