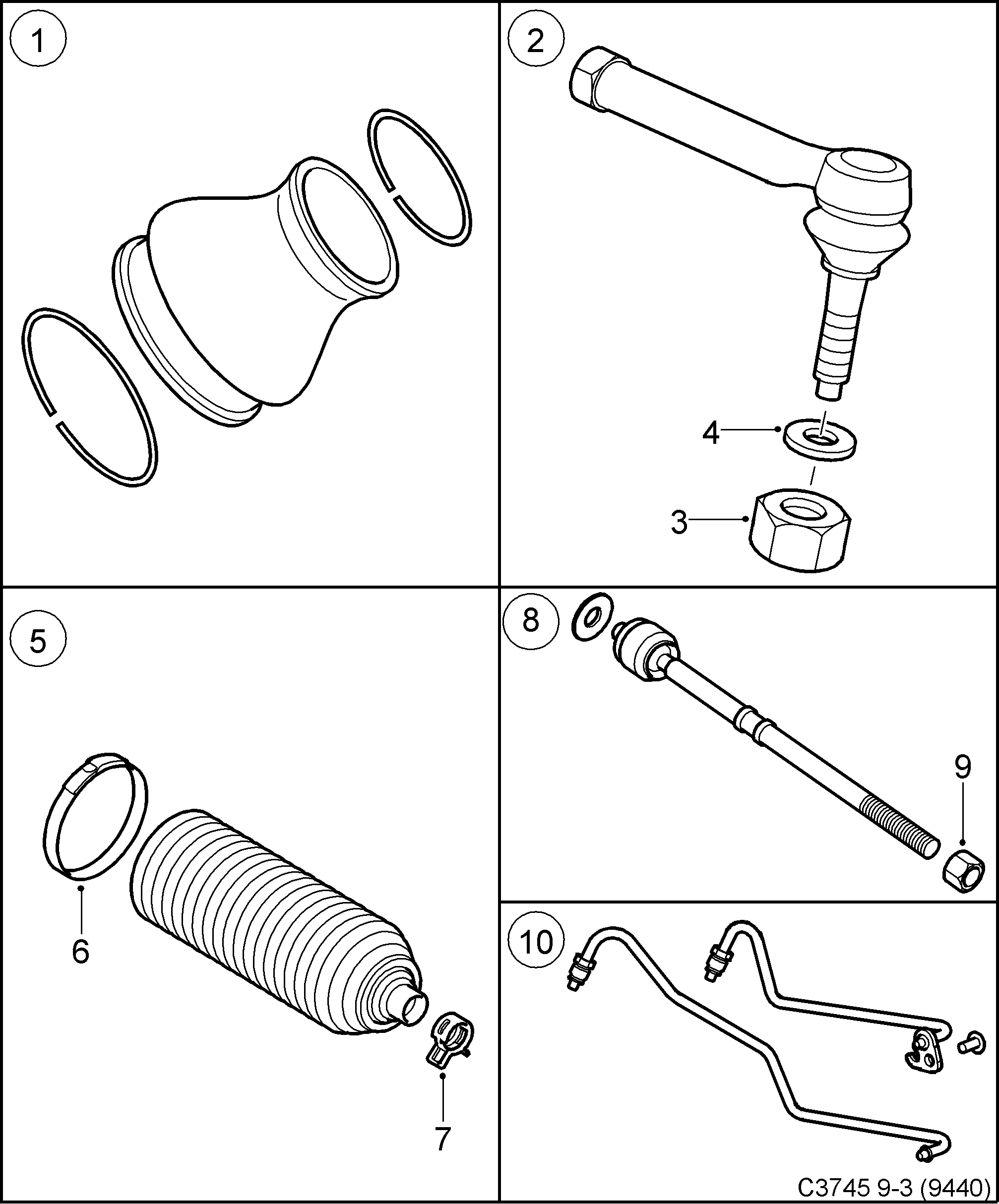

2000: Train avant - Jeux - Train avant - Direction
(2003 - 2011 | 4D, CV, 5D) | Pour 9-3 (9440) (2004)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 12799814 Jeu soufflet | 2 | |
| 2 | 12801423 Bout barre direction 2003-2005 | LH | 1 | |
| 3 | 90304096 Ecrou | 1 | |
| 4 | 92150260 11011199 Rondelle | 1 | |
| 2 | 12801424 Bout barre direction 2003-2005 | RH | 1 | |
| 3 | 90304096 Ecrou | 1 | |
| 4 | 92150260 11011199 Rondelle | 1 | |
| 3 | 13136972 Ecrou | 1 | |
| 3 | 13136972 Ecrou | 1 | |
| 3 | 13136972 Ecrou M12 | 1 | |
| 3 | 90539048 Ecrou M14 | 1 | |
| 3 | 13136972 Ecrou M12 | 1 | |
| 3 | 90539048 Ecrou M14 | 1 | |
| 3 | 13136972 Ecrou | 1 | |
| 3 | 13136972 Ecrou | 1 | |
| 3 | 13136972 Ecrou | 1 | |
| 3 | 13136972 Ecrou | 1 | |
| 5 | 12802043 Jeu soufflet B207 | 2 | |
| 6 | 12801827 Collier serrage | 1 | |
| 7 | 12801828 Collier serrage | 1 | |
| 5 | 93172342 93191675 Jeu soufflet 2003-2007 | Z18XE, Z19DT, Z19DTH, B284 | 2 | |
| 6 | 12801827 Collier serrage | 1 | |
| 7 | 12801828 Collier serrage | 1 | |
| 8 | 12804238 Barre direction 2003-2006 | B207, D223L | 2 | |
| 9 | 92152389 12774389 Ecrou | 1 | |
| 9 | 13136972 Ecrou M12 | 1 | |
| 9 | 90539048 Ecrou M14 | 1 | |
| 8 | 93191672 95507450 Kit réparation 2004-2006 | Z18XE, Z19DT, Z19DTH | 2 | |
| 9 | 13136972 Ecrou M12 | 1 | |
| 9 | 90539048 Ecrou M14 | 1 | |
| 9 | 12774389 Ecrou | 1 | |
| 10 | 93172343 Kit réparation LHD | B284 | Kit tuyaux Sans transmission intégrale (XWD) | 1 | |
| 10 | 93172344 Kit réparation RHD | Z19DT, B284, Z19DTH, Z19DTR, Z18XE, A19DTR | Kit tuyaux Sans transmission intégrale (XWD) | 1 |
