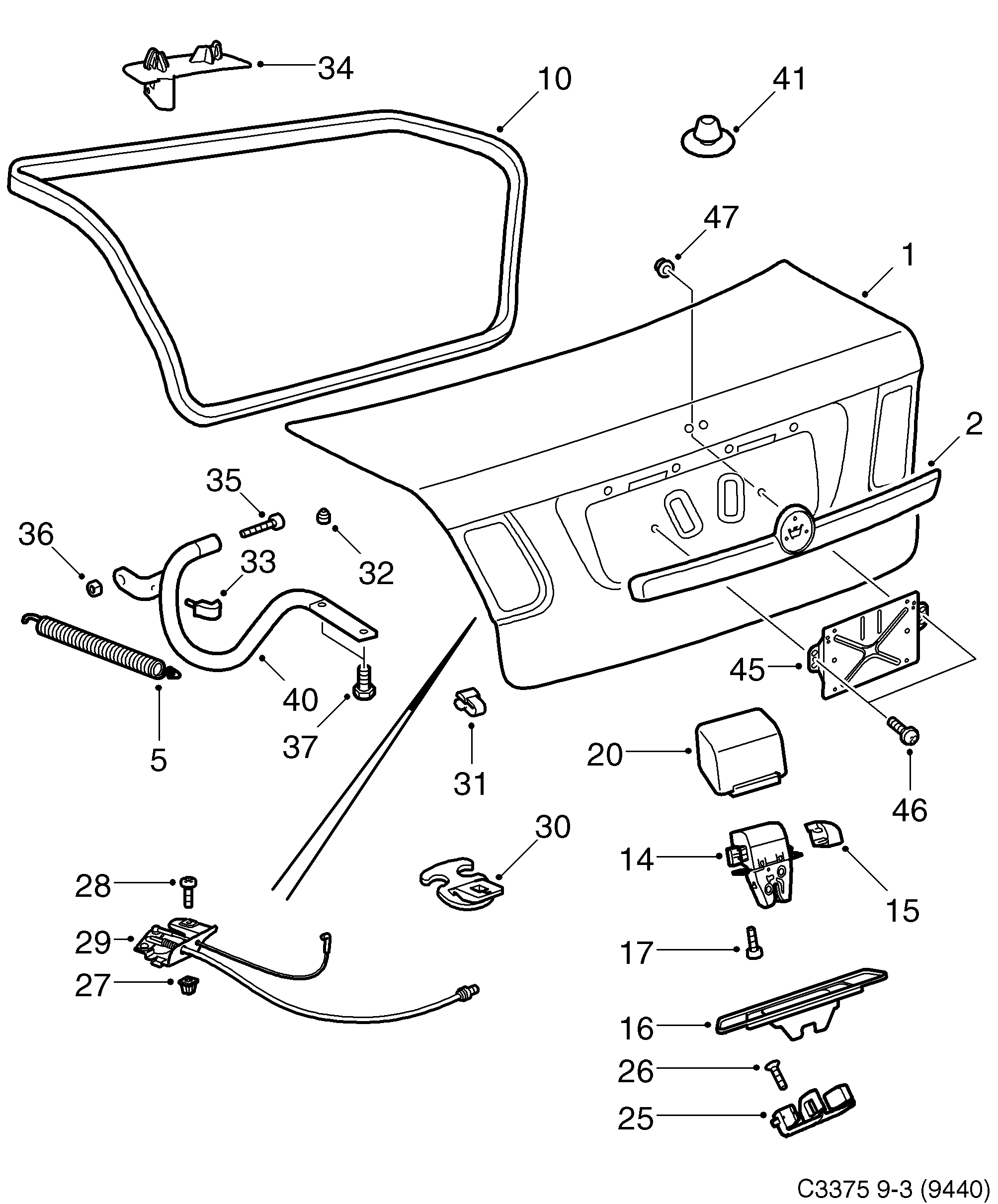

1070: Carrosserie, extérieur - Portes, hayon - Porte coffre arrière - serrure
(2003 - 2011 | 4D) | Pour 9-3 (9440) (2011)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 12771536 Porte coffre arrière 2008-2011 | 1 | |||
| 2 | |||||
| 5 | 12799609 12778382 Ressort | 2 | |||
| 10 | 12755659 Joint 2005-2011 | 1 | |||
| 14 | 12785002 Serrure | 1 | |||
| 15 | 12799560 Couverture 2006-2011 | 1 | |||
| 17 | 92150065 92151601 Vis | 2 | |||
| 17 | 92151601 Vis 2007-2011 | X | |||
| 17 | 92150065 92151601 Vis LHD | 3 | |||
| 20 | 12791956 Protection | 1 | |||
| 25 | 12785003 Lame connexion | 1 | |||
| 26 | 92152010 Vis | 2 | |||
| 27 | 92150170 Ecrou de compression LHD | 1 | |||
| 28 | 92151994 Vis 2008-2011, LHD | 1 | |||
| 29 | 12797351 Câble LHD | 1 | |||
| 30 | 12798514 Poignée LHD | 1 | |||
| 31 | 92152052 Bouchon drainage | 4 | |||
| 32 | 92152133 Tampon | 2 | |||
| 33 | 12764941 Arrêt 2006- | 2 | |||
| 34 | 12799085 Couverture LH | 1 | |||
| 34 | 12799361 Couverture RH | 1 | |||
| 35 | 11900375 Vis à bride | 2 | |||
| 36 | 11900452 Ecrou | 2 | |||
| 37 | 92152018 Vis | 4 | |||
| 40 | 12798564 12778243 Charnière LH | 1 | |||
| 40 | 12798565 12778244 Charnière RH | 1 | |||
| 41 | 90120284 Tampon Charnière | RH | 2 | |||
| 45 | 24417127 Joint amortisseur 2010-2011 | 1 | |||
| 45 | 12786338 Support LHD | 1 | |||
| 46 | 92151601 Vis 2006-2011 | X | |||
| 47 | 92150375 9130829 Ecrou LHD | 2 | |||
