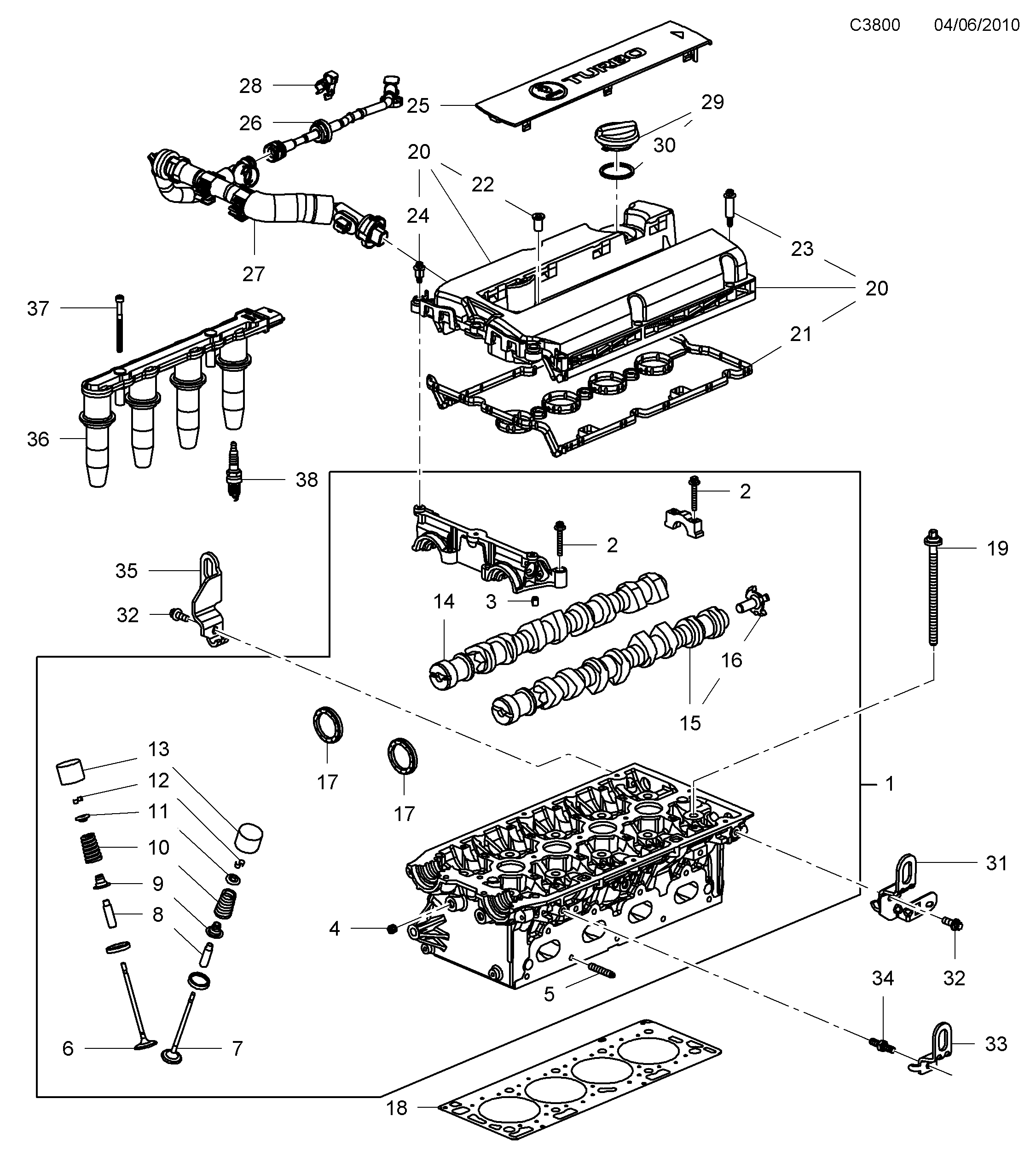

190: Moteur - Corps de moteur - Couvre-culasse
(2011 | A20NFT, A16LET) | Pour 9-5 (650) (2011)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 55355566 Culasse | 1 | |
| 2 | 11093782 Goujon M6X40 | 20 | |
| 3 | 90351709 Douille | 2 | |
| 4 | 11095512 Obturateur à vis | 5 | |
| 5 | 55355571 Goujon M8x40 | 9 | |
| 6 | 55557741 Soupape admission | 8 | |
| 7 | 55355572 Soupape d'échappement | 8 | |
| 8 | 24405805 Guide soupape STANDARD | 16 | |
| 8 | 24438044 Guide soupape OVERSIZE | 16 | |
| 9 | 24405819 Joint de tige de soupape | 16 | |
| 10 | 55567950 Ressort soupape | 16 | |
| 11 | 24405817 Disque | 16 | |
| 12 | 90529533 Taquet | 32 | |
| 13 | 24465260 Poussoir soupape 3.030-3.050MM | CODE=04 | 16 | |
| 13 | 24438041 Poussoir soupape 3.070-3.090MM | CODE=08 | 16 | |
| 13 | 24438146 Poussoir soupape 3.110-3.130MM | CODE=12 | 16 | |
| 13 | 24438148 Poussoir soupape 3.150-3.170MM | CODE=16 | 16 | |
| 13 | 24438150 Poussoir soupape 3.190-3.210MM | CODE=20 | 16 | |
| 13 | 55353764 Poussoir soupape 3.230-3.244MM | CODE=24X | 16 | |
| 13 | 55353766 Poussoir soupape 3.258-3.272MM | CODE=27X | 16 | |
| 13 | 55353768 Poussoir soupape 3.286-3.300MM | CODE=30X | 16 | |
| 13 | 55353770 Poussoir soupape 3.314-3.328MM | CODE=32X | 16 | |
| 13 | 55353772 Poussoir soupape 3.342-3.356MM | CODE=35X | 16 | |
| 13 | 55353774 Poussoir soupape 3.370-3.384MM | CODE=38X | 16 | |
| 13 | 55353776 Poussoir soupape 3.398-3.412MM | CODE=41X | 16 | |
| 13 | 55353778 Poussoir soupape 3.426-3.440MM | CODE=43X | 16 | |
| 13 | 55353780 Poussoir soupape 3.460-3.480MM | CODE=47 | 16 | |
| 13 | 55353782 Poussoir soupape 3.500-3.520MM | CODE=51 | 16 | |
| 13 | 55353784 Poussoir soupape 3.540-3.560MM | CODE=55 | 16 | |
| 13 | 55353786 Poussoir soupape 3.580-3.600MM | CODE=59 | 16 | |
| 14 | 55355574 Arbre cames INLET | 1 | |
| 15 | 55355577 Arbre cames EXHAUST | 1 | |
| 16 | 55557686 Disque | 1 | |
| 17 | 55563374 Bague d'étanchéité ondulée | 2 | |
| 18 | 93186222 Joint culasse | 1 | |
| 19 | 90412701 Vis | 10 | |
| 20 | 55564395 Cache-soupapes | 1 | |
| 21 | 55354237 Joint | 1 | |
| 22 | 24460807 Entretoise | 2 | |
| 23 | 24440095 Vis Torx M6X30 | 8 | |
| 24 | 55355420 Vis Torx M6x21 | 3 | |
| 25 | 55558216 Emblème | 1 | |
| 26 | 55563097 Tuyau Ventilateur du carter en circuit ferme | 1 | |
| 27 | 55567962 Tuyau Ventilateur du carter en circuit ferme | 1 | |
| 28 | 55566911 Agrafe | 1 | |
| 29 | 55566555 Bouchon de remplissage d'huile | 1 | |
| 30 | 90448217 Joint | 1 | |
| 31 | 55559205 Anneau accouplement Oeillet levage | 1 | |
| 32 | 11097651 Vis M8X18 | 2 | |
| 33 | 55559362 Anneau accouplement Oeillet levage | FRONT | 1 | |
| 34 | 55562299 Goujon | 1 | |
| 35 | 24438214 Anneau accouplement Oeillet levage | REAR | 1 | |
| 32 | 11097651 Vis M8X18 | 1 | |
| 36 | 10458316 Bobine allumage | 1 | |
| 37 | 11102371 Vis à tête bombée | 2 | |
| 38 | 55564763 Bougie | 4 |
