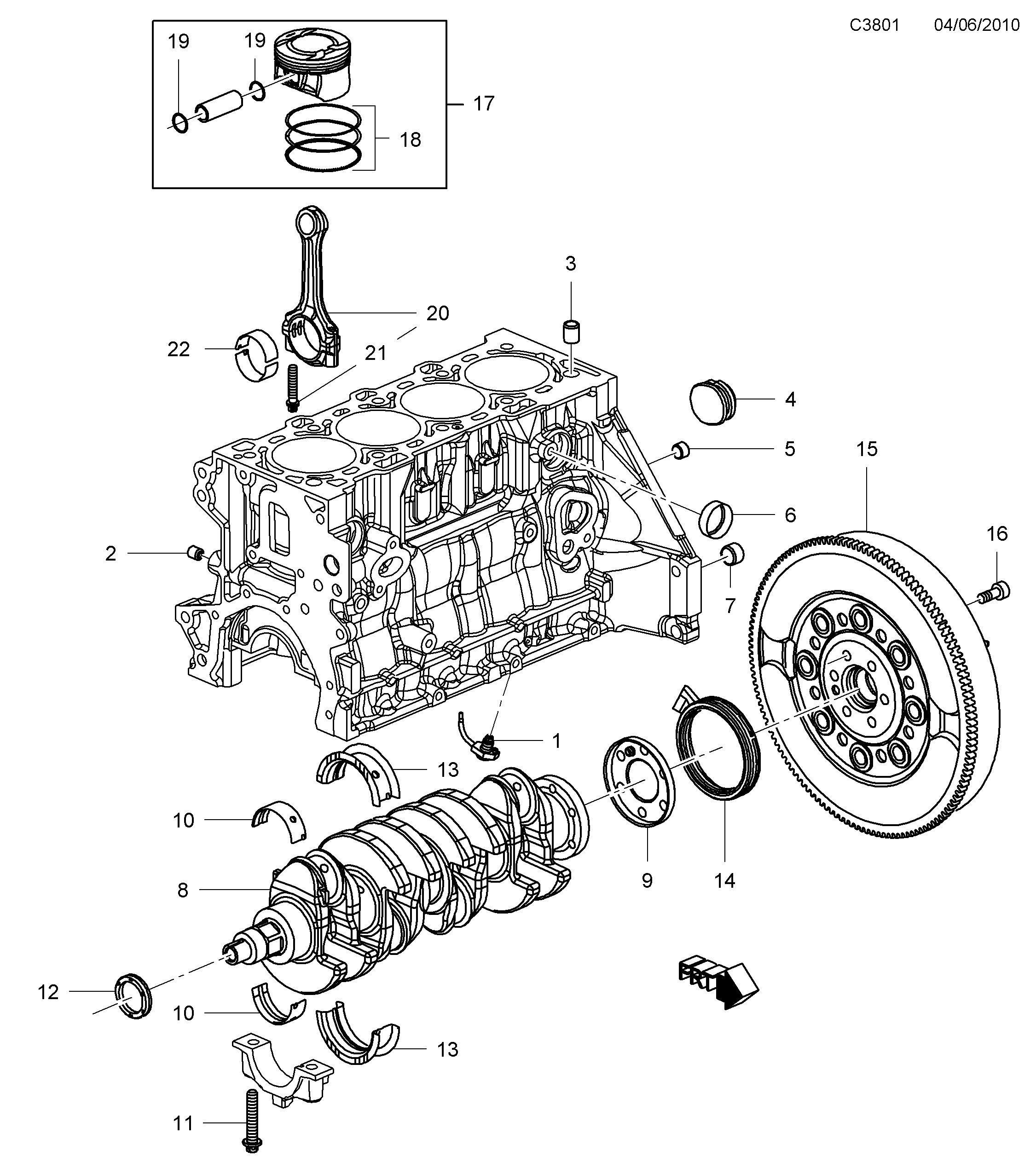

290: Moteur - Corps de moteur - Bloc-cylindres - Vilebrequin et piston
(2011 | A20NFT, A16LET) | Pour 9-5 (650) (2011)

| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 55564441 Gicleur | 4 | |
| 2 | 93180107 Valve antiretour | 1 | |
| 3 | 90351710 Douille | 2 | |
| 4 | 55566841 Obturateur à vis | 1 | |
| 5 | 11056321 Obturateur à vis M14 | 2 | |
| 6 | 11070803 Tampon verrouillage Ø36MM | X | |
| 6 | 11056093 Tampon verrouillage Ø34MM | 2 | |
| 7 | 90351708 Douille | 2 | |
| 8 | 55569766 Vilebrequin | 1 | |
| 9 | 55555803 55574780 Disque | 1 | |
| 10 | 93184596 Roulement de vilebrequin, jeu STD | 4 | |
| 10 | 93184597 Roulement de vilebrequin, jeu 0.25MM U/S | 4 | |
| 10 | 93184598 Roulement de vilebrequin, jeu 0.50 MM U/S | 4 | |
| 11 | 24418414 Vis Torx M10X52 | 10 | |
| 12 | 24465791 Joint vilebrequin Avant | 1 | |
| 13 | 93184599 Palier de guidage, jeu STD | 1 | |
| 13 | 93184600 Palier de guidage, jeu 0.25MM U/S | 1 | |
| 13 | 93184601 Palier de guidage, jeu 0.50 MM U/S | 1 | |
| 14 | 55555805 Bague d'étanchéité ondulée vilebrequin Arrière | 1 | |
| 15 | 55564555 Volant | 1 | |
| 16 | 93186900 Vis Torx | 6 | |
| 17 | 55561413 Piston 78.992-79.008 MM | CODE=0 | 4 | |
| 17 | 55571126 Piston 79.042-79.058 MM | CODE=01 | 4 | |
| 18 | 93186225 Jeu segments piston 78.992-79.008 MM | CODE=0 | 4 | |
| 19 | 12992353 Anneau de blocage | 8 | |
| 17 | 55561415 Piston 0.5MM O/S | 4 | |
| 18 | 93188426 Jeu segments piston 0.5MM O/S | 4 | |
| 19 | 12992353 Anneau de blocage | 8 | |
| 20 | 55568467 Bielle, kit | 1 | |
| 21 | 12992338 Boulon bielle | 8 | |
| 22 | 55568638 Jeu coussinets bielles STD | 4 | |
| 22 | 55568639 Jeu coussinets bielles 0.25MM U/S | 4 | |
| 22 | 55568640 Jeu coussinets bielles 0.50 MM U/S | 4 |
