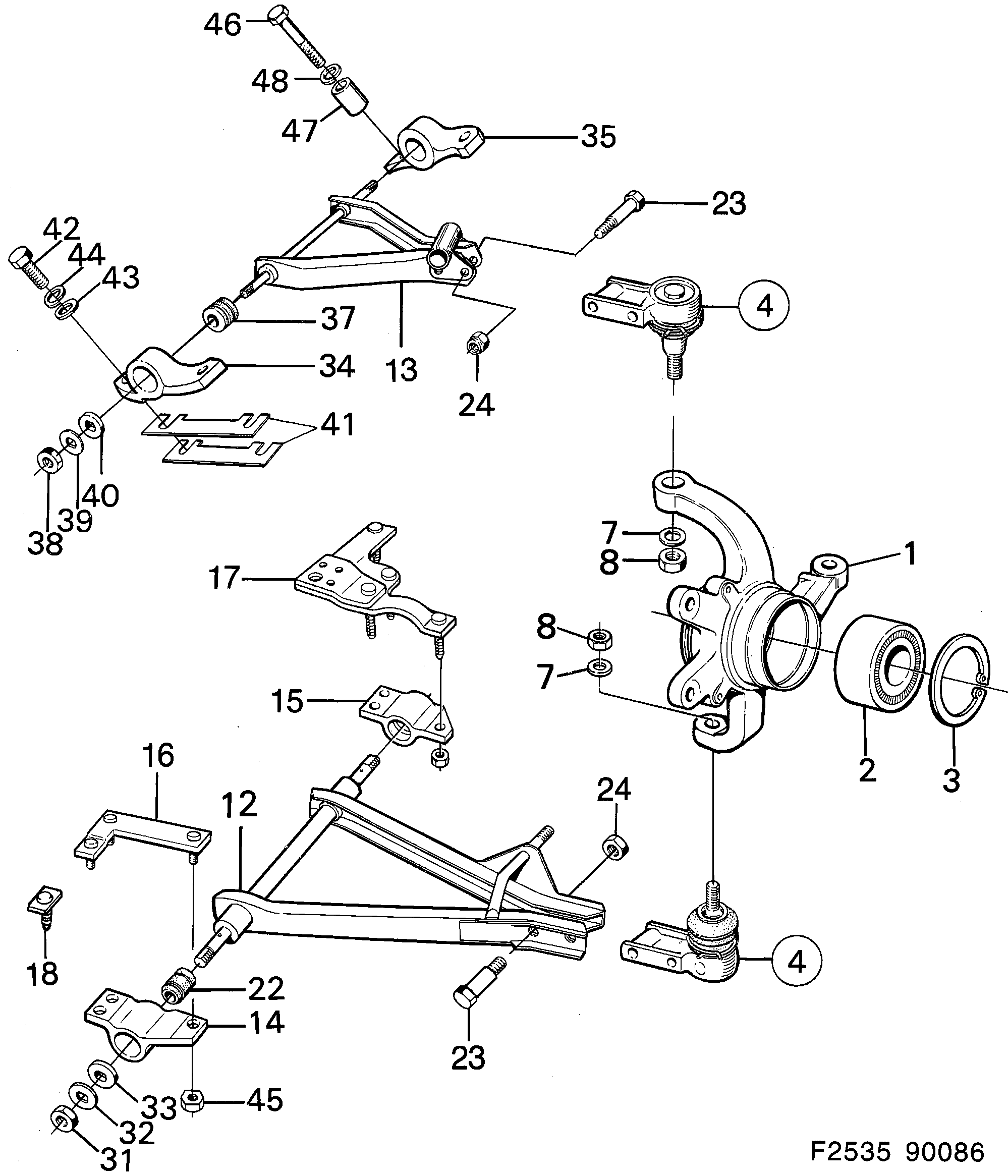

| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 8941858 Moyeu direction Usage: 1986-1987 | LH | 1 | |
| 1 | 8941866 Moyeu direction Usage: 1986-1987 | RH | 1 | |
| 1 | 9101031 Moyeu direction Usage: 1988-1989 | LH | 1 | |
| 1 | 9101049 Moyeu direction Usage: 1988-1989 | RH | 1 | |
| 1 | 9102096 Moyeu direction Usage: LH ABS | 1 | |
| 1 | 9102104 Moyeu direction Usage: RH ABS | 1 | |
| 2 | 8942765 30520278 Palier Usage: 1986-1987 | 2 | |
| 2 | 9104209 30520278 Roulement billes contact angulaire Usage: 1988-1989 | 2 | |
| 3 | 7972581 Circlip | 4 | |
| 4 | 8993321 Pièce extrémité | 4 | |
| 7 | 8073124 Rondelle | 4 | |
| 8 | 7918733 Contre-écrou | 4 | |
| 12 | 8934788 Bras pivotant Usage: Inférieur | LH | 1 | |
| 12 | 8934796 Bras pivotant Usage: Inférieur | RH | 1 | |
| 13 | 8941015 Bras pivotant Usage: Supérieur | LH | 1 | |
| 13 | 8941023 Bras pivotant Usage: Supérieur | RH | 1 | |
| 14 | 8933970 Fixation palier Usage: Avant. | LH | 1 | |
| 14 | 8933988 Fixation palier Usage: Avant. | RH | 1 | |
| 15 | 8934002 Fixation palier Usage: Arrière. | LH | 1 | |
| 15 | 8934010 Fixation palier Usage: Arrière. | RH | 1 | |
| 16 | 8939274 Fixation Usage: Avant. | LH | 1 | |
| 16 | 8939282 Fixation Usage: Avant. | RH | 1 | |
| 17 | 8935736 Fixation Usage: Arrière. | LH | 1 | |
| 17 | 8935744 Fixation Usage: Arrière. | RH | 1 | |
| 18 | 8262941 6938823 Fixation Usage: 1986-1986 | Avant. | LH | 1 | |
| 18 | 8267908 Fixation Usage: 1986-1986 | Avant. | RH | 1 | |
| 18 | 6938823 Fixation Usage: 1987-1989 | Avant. | LH | 1 | |
| 18 | 6938856 Fixation Usage: 1987-1989 | Avant. | RH | 1 | |
| 22 | 7184443 Bague | 4 | |
| 23 | 8990012 Vis | 8 | |
| 24 | 7969306 Contre-écrou | 8 | |
| 31 | 7904113 Ecrou | 4 | |
| 32 | 7071939 Rondelle verrouillage | 4 | |
| 33 | 7070642 Rondelle | 4 | |
| 34 | 7175441 Fixation palier Usage: Avant. | LH | 1 | |
| 35 | 7175433 Fixation palier Usage: Arrière. | LH | 1 | |
| 35 | 7337330 Fixation palier Usage: Arrière. | LH,ALT. TO 7175433 | 1 | |
| 34 | 7175433 Fixation palier Usage: Avant. | RH | 1 | |
| 35 | 7175441 Fixation palier Usage: Arrière. | RH | 1 | |
| 35 | 7337348 Fixation palier Usage: Arrière. | RH,ALT. TO 7175441 | 1 | |
| 37 | 7163603 Bague | 4 | |
| 38 | 7904097 Ecrou | 4 | |
| 39 | 7070626 Rondelle verrouillage | 4 | |
| 40 | 7070667 Rondelle | 4 | |
| 41 | 7071061 Cale réglage Usage: 0,5 MM | X | |
| 41 | 7071079 Cale réglage Usage: 1,0 MM | X | |
| 41 | 7071087 Cale réglage Usage: 2,0 MM | X | |
| 42 | 8083180 7978794 Vis Usage: 1986-1988 | 7 | |
| 42 | 7978794 Vis Usage: 1989-1989 | Valable aussi pour SE 1988B. | 7 | |
| 43 | 8073108 Rondelle | 7 | |
| 44 | 8802175 Rondelle élastique | 7 | |
| 45 | 7971765 92153201 Ecrou | 12 | |
| 46 | 8083222 92151521 Vis | 1 | |
| 47 | 8941403 Tube entretoise | 1 | |
| 48 | 8802175 Rondelle élastique | 1 |
