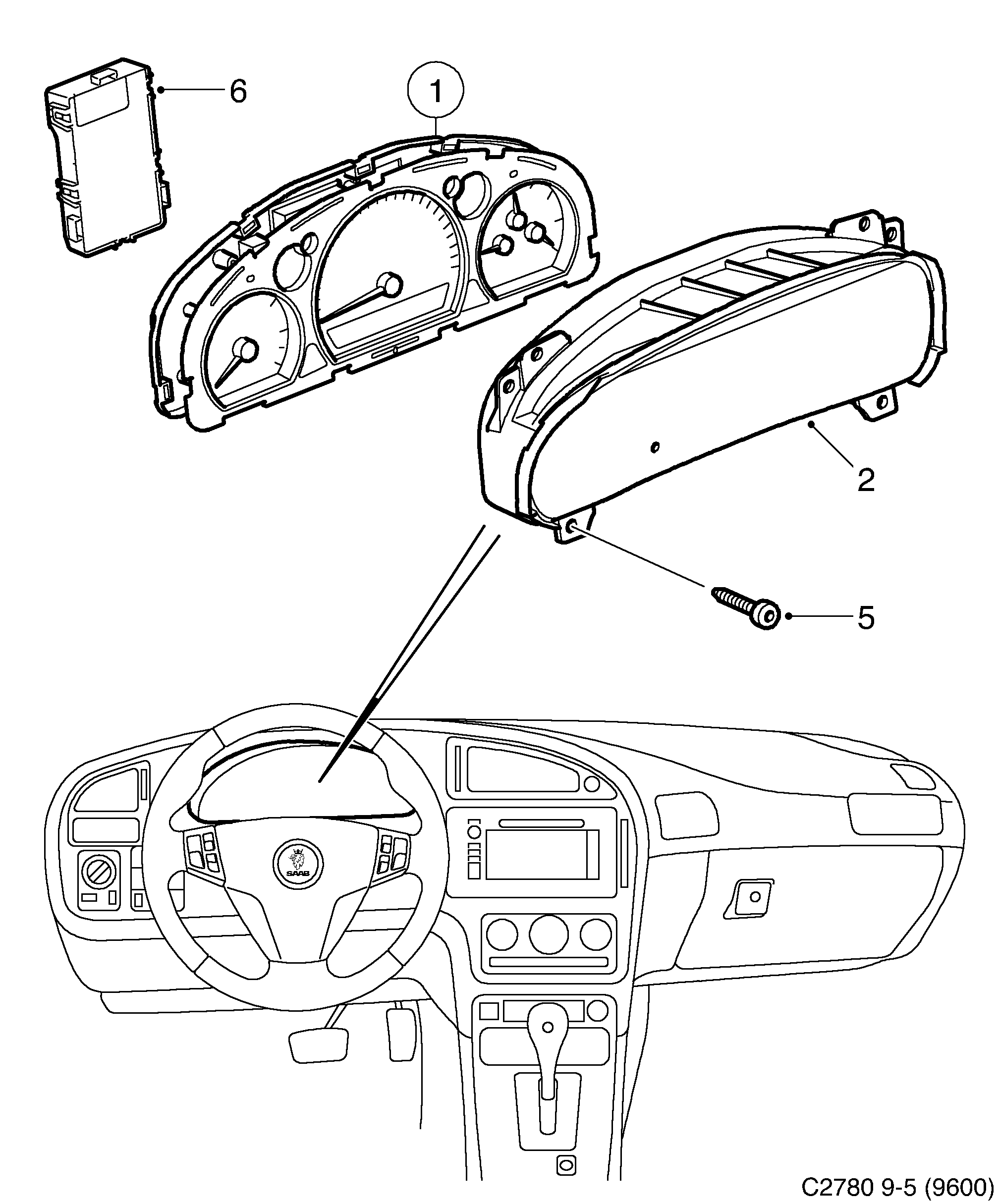

1012: Système électrique, généralités - Conduites et fusibles - Tableau bord
(2006 - 2010)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 12767384 12775653 Instrument principal Usage: 2006-2006 | Z19DTH | KM/H | 1 | |
| 1 | 12775653 Instrument principal Usage: 2007-2010 | Z19DTH | KM/H | 1 | |
| 1 | 12767385 12775652 Instrument principal Usage: 2006-2006 | Z19DTH | MPH | 1 | |
| 1 | 12775652 Instrument principal Usage: 2007-2010 | Z19DTH | MPH | 1 | |
| 1 | 12767380 12775651 Instrument principal Usage: 2006-2006 | B205E | KM/H | 1 | |
| 1 | 12775651 Instrument principal Usage: 2007-2010 | B205E | KM/H | 1 | |
| 1 | 12767381 12775650 Instrument principal Usage: 2006-2006 | B205E | MPH | 1 | |
| 1 | 12775650 Instrument principal Usage: 2007-2010 | B205E | MPH | 1 | |
| 1 | 12767382 12775649 Instrument principal Usage: 2006-2006 | B235 | KM/H | 1 | |
| 1 | 12775649 Instrument principal Usage: 2007-2010 | B235 | KM/H | 1 | |
| 1 | 12782046 Tableau bord Usage: 2008-2010 | B235R | KM/H | 1 | |
| 1 | 12767383 12775648 Instrument principal Usage: 2006-2006 | B235 | MPH | 1 | |
| 1 | 12775648 Instrument principal Usage: 2007-2010 | B235 | MPH | 1 | |
| 1 | 12782045 Tableau bord Usage: 2008-2009 | B235R | MPH | 1 | |
| 2 | 12765903 Couvercle en verre | 1 | |
| 5 | 92150386 92153006 Vis Usage: 2006-2007 | 4 | |
| 5 | 92153220 Vis Usage: 2008-2010 | 4 | |
| 6 | 12767386 Unité électronique Usage: 2006-2006 | 1 | |
| 6 | 12772937 Unité électronique Usage: 2007-2010 | 1 |
