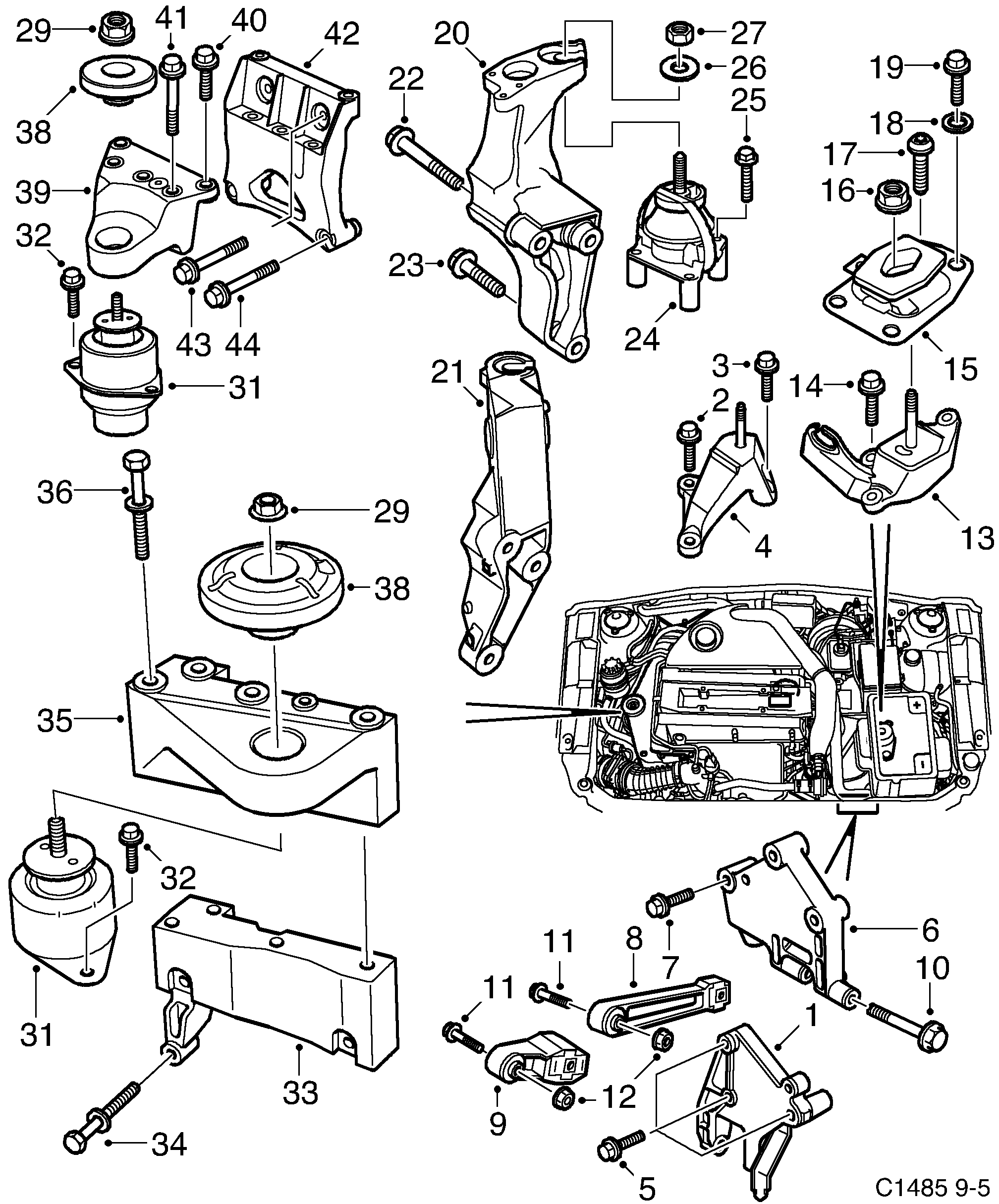

115: Moteur - Corps de moteur - Suspension du moteur
(2002 - 2005 | 4-CYL,DIESEL, 6-CYL,DIESEL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 5236393 Console moteur | 1 | |
| 2 | 7982549 92151521 Vis | 2 | |
| 3 | 7982572 92150036 Vis | 1 | |
| 4 | 5063268 Console moteur | 1 | |
| 5 | 7978315 92153207 Vis | 3 | |
| 6 | 5063334 Console moteur Usage: 2003-2005 | D223L | 1 | |
| 7 | 7982549 92151521 Vis Usage: 2003-2005 | D223L | 3 | |
| 8 | 5230685 Barre de torsion | 1 | |
| 9 | 5530258 Barre de torsion Usage: 2003-2005 | D223L | 1 | |
| 10 | 4348561 Vis à tête hexagonale | 1 | |
| 11 | 4347514 Vis | 1 | |
| 12 | 4348009 Ecrou | 1 | |
| 13 | 5063284 Console moteur Usage: 2003-2005 | D223L | 1 | |
| 14 | 7986102 92153210 Vis Usage: 2003-2005 | D223L | 3 | |
| 15 | 5063714 Amortisseur vibrations Usage: D308L | LH | 1 | |
| 15 | 5063714 Amortisseur vibrations Usage: 2003-2005 | D223L | LH | 1 | |
| 16 | 7987100 11900431 Ecrou accouplement | 1 | |
| 17 | 5125539 Vis | 1 | |
| 18 | 4685129 Rondelle | 2 | |
| 19 | 5235551 Vis | 4 | |
| 20 | 5063292 Console moteur | 1 | |
| 21 | 5063300 Console moteur Usage: 2003-2005 | D223L | 1 | |
| 22 | 7986136 92153211 Vis | 2 | |
| 23 | 7986185 92151541 Vis | 1 | |
| 24 | 5237219 Amortisseur vibrations Usage: D308L | 1 | |
| 24 | 5237219 Amortisseur vibrations Usage: 2003-2005 | D223L | 1 | |
| 25 | 7985807 Vis | 3 | |
| 26 | 4685129 Rondelle | 1 | |
| 27 | 11900426 Ecrou hexagonal | 1 | |
| 29 | 7987100 11900431 Ecrou accouplement | 1 | |
| 31 | 5239140 12770367 Amortisseur vibrations Usage: RH | 1 | |
| 32 | 5235551 Vis Usage: RH | 3 | |
| 33 | 5236773 Console moteur Usage: D223L | RH | 1 | |
| 34 | 7982598 Vis à tête hexagonale Usage: D223L | RH | 3 | |
| 35 | 5236781 Console moteur Usage: D223L | RH | 1 | |
| 36 | 7982598 Vis à tête hexagonale Usage: D223L | RH | 4 | |
| 38 | 5235247 Amortisseur vibrations Usage: RH | 1 | |
| 39 | 5063672 Console moteur Usage: D308L | 1 | |
| 40 | 7978307 92153206 Vis Usage: D308L | 2 | |
| 41 | 7982598 Vis à tête hexagonale Usage: D308L | 3 | |
| 42 | 5063680 Silentbloc moteur Usage: D308L | 1 | |
| 43 | 7982549 92151521 Vis Usage: D308L | 2 | |
| 44 | 5125513 Vis Usage: D308L | 2 |
