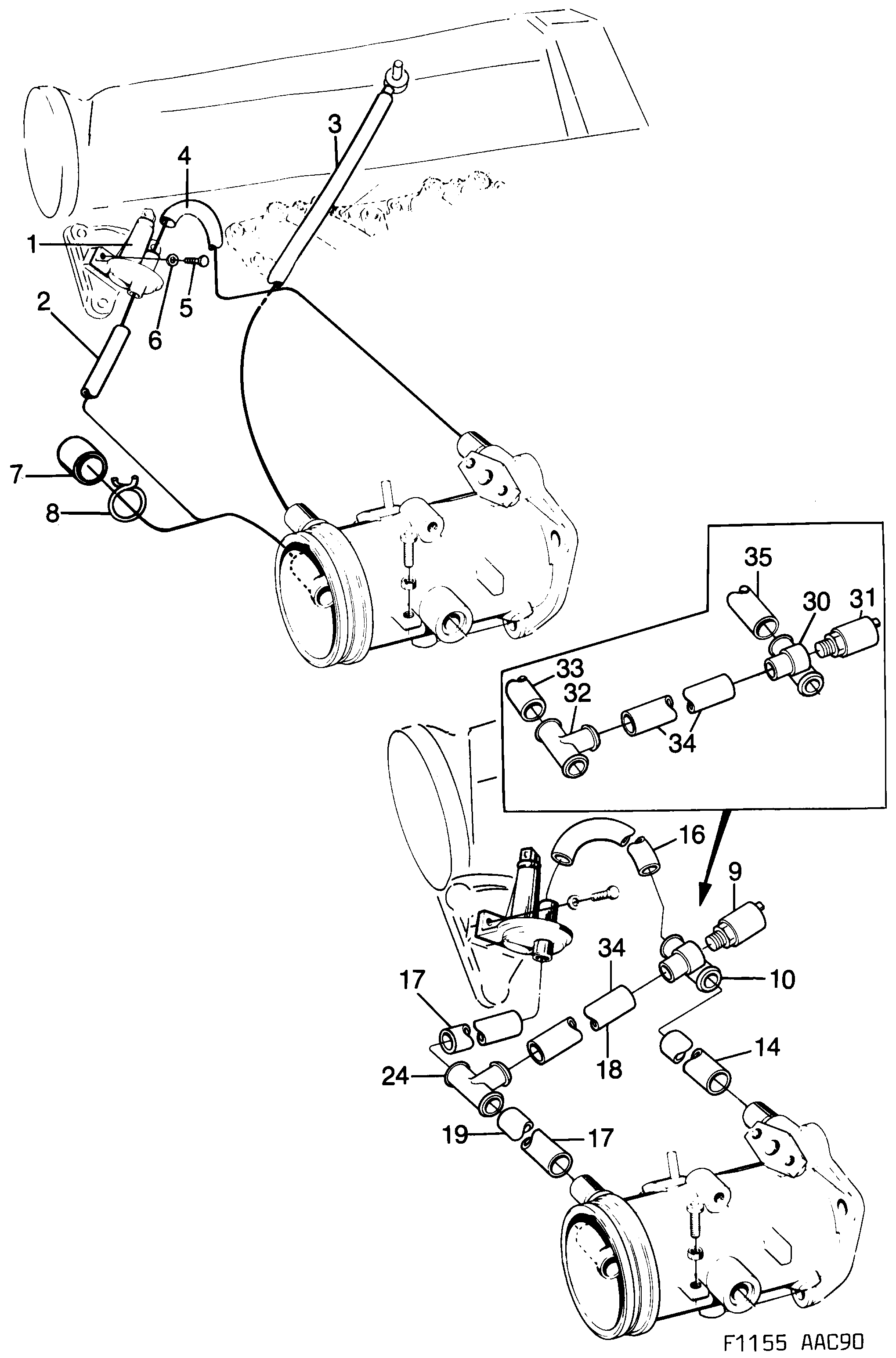

1160: Moteur - Système d'admission et d'échappement - Tiroir d'air additionnel
(1990 - 1993)
Concerne aussi CV 1994
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9114869 30520410 Valve air | 1 | |
| 2 | 9308982 Flexible | 1 | |
| 3 | 8360414 Flexible | 1 | |
| 4 | 9308941 Flexible | 1 | |
| 5 | 9350653 Vis | 2 | |
| 6 | 8029951 Rondelle Usage: 1990-1992 | 2 | |
| 6 | 9166364 Rondelle Usage: 1993-1993 | 2 | |
| 7 | 9300625 Tampon | 1 | |
| 8 | 7935208 Collier serrage | 1 | |
| 9 | 8334005 Vanne électromagnétique Usage: AC | 1 | |
| 10 | 7528144 Tuyau-T | 1 | |
| 14 | 7526049 Flexible Usage: AC | 1 | |
| 14 | 7527591 Flexible | 1 | |
| 16 | 7526031 Flexible Usage: AC | 1 | |
| 17 | 7526056 Flexible Usage: AC | 1 | |
| 17 | 7526056 Flexible | 2 | |
| 18 | 9367525 Flexible Usage: AC | 1 | |
| 19 | 7526064 Flexible Usage: AC | 1 | |
| 24 | 8317828 Raccord Usage: AC | 1 | |
| 30 | 7528144 Tuyau-T | 1 | |
| 31 | 8334005 Vanne électromagnétique | 1 | |
| 32 | 8317828 Raccord | 1 | |
| 33 | 9367483 Flexible | 1 | |
| 34 | 9367525 Flexible | 2 | |
| 35 | 7527583 Flexible | 1 |
