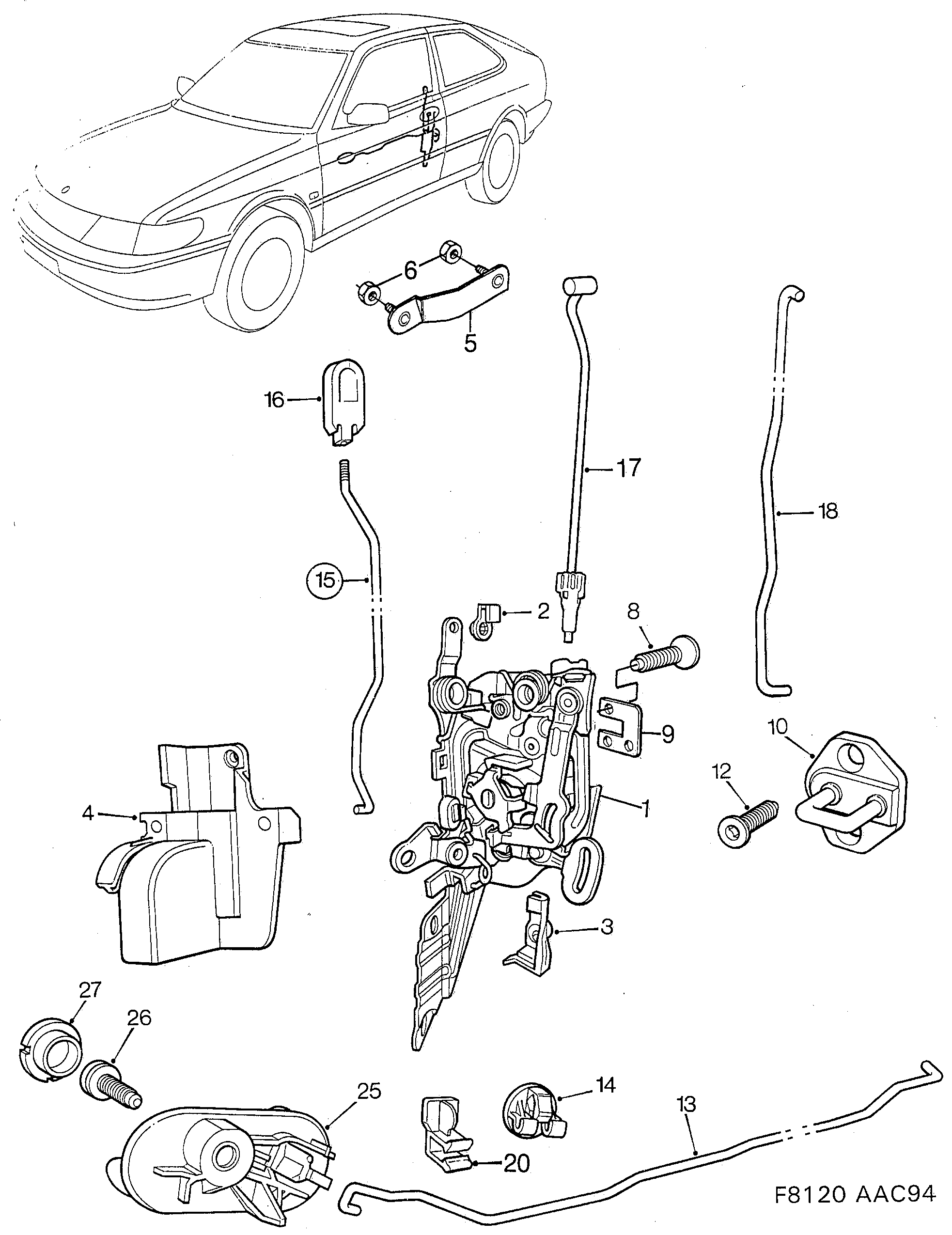

1170: Carrosserie, extérieur - Portes, hayon - Serrure porte - Porte avant
(1994 - 1998 | 4D, CV)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 4326690 4766812 Serrure porte Usage: -1994, LHD | LH | 1 | |
| 1 | 4326724 4550745 Serrure porte Usage: -1994, LHD | RH | 1 | |
| 1 | 4326716 4766838 Serrure porte Usage: -1994, RHD | LH | 1 | |
| 1 | 4326708 Serrure porte Usage: -1994, RHD | RH | 1 | |
| 1 | 4550711 4766812 Serrure porte Usage: 1994-1995, LHD | LH | 1 | |
| 1 | 4550745 Serrure porte Usage: 1994-1995, LHD | RH | 1 | |
| 1 | 4550737 4766838 Serrure porte Usage: 1994-1995, RHD | LH | 1 | |
| 1 | 4550729 Serrure porte Usage: 1994-1995, RHD | RH | 1 | |
| 1 | 4766812 Serrure porte Usage: 1996-1996, LHD | LH | 1 | |
| 1 | 4766820 Serrure porte Usage: 1996-1996, LHD | RH | 1 | |
| 1 | 4766838 Serrure porte Usage: 1996-1996, RHD | LH | 1 | |
| 1 | 4766846 Serrure porte Usage: 1996-1996, RHD | RH | 1 | |
| 1 | 4852596 4858577 Serrure porte Usage: 1997-1997, LHD | LH | 1 | |
| 1 | 4852638 4858601 Serrure porte Usage: 1997-1997, LHD | RH | 1 | |
| 1 | 4852620 4858593 Serrure porte Usage: 1997-1997, RHD | LH | 1 | |
| 1 | 4852604 4858585 Serrure porte Usage: 1997-1997, RHD | RH | 1 | |
| 1 | 4858577 Serrure porte Usage: 1998-1998, LHD | LH | 1 | |
| 1 | 4858601 Serrure porte Usage: 1998-1998, LHD | RH | 1 | |
| 1 | 4858593 Serrure porte Usage: 1998-1998, RHD | LH | 1 | |
| 1 | 4858585 Serrure porte Usage: 1998-1998, RHD | RH | 1 | |
| 1 | 4852596 4858577 Serrure porte Usage: -1998, LHD | LH | 1 | |
| 1 | 4852638 4858601 Serrure porte Usage: -1998, LHD | RH | 1 | |
| 1 | 4852620 4858593 Serrure porte Usage: -1998, RHD | LH | 1 | |
| 1 | 4852604 4858585 Serrure porte Usage: -1998, RHD | RH | 1 | |
| 1 | 4858577 Serrure porte Usage: 1998-, LHD | LH | 1 | |
| 1 | 4858601 Serrure porte Usage: 1998-, LHD | RH | 1 | |
| 1 | 4858593 Serrure porte Usage: 1998-, RHD | LH | 1 | |
| 1 | 4858585 Serrure porte Usage: 1998-, RHD | RH | 1 | |
| 2 | 4326732 Clip Usage: LH | 1 | |
| 2 | 4326740 Clip Usage: RH | 1 | |
| 3 | 4326757 Clip Usage: LH | 1 | |
| 3 | 4326765 Clip Usage: RH | 1 | |
| 4 | 4323192 Capot protection Usage: -1994, LHD | LH | 1 | |
| 4 | 4323200 4550588 Capot protection Usage: -1994, LHD | RH | 1 | |
| 4 | 4326831 4550596 Capot protection Usage: -1994, RHD | LH | 1 | |
| 4 | 4326849 4550604 Capot protection Usage: -1994, RHD | RH | 1 | |
| 4 | 4550570 Capot protection Usage: 1994-, LHD | LH | 1 | |
| 4 | 4550588 Capot protection Usage: 1994-, LHD | RH | 1 | |
| 4 | 4550596 Capot protection Usage: 1994-, RHD | LH | 1 | |
| 4 | 4550604 Capot protection Usage: 1994-, RHD | RH | 1 | |
| 5 | 4494316 Tôle jointure Usage: LH | 1 | |
| 5 | 4494324 Tôle jointure Usage: RH | 1 | |
| 6 | 7977929 11900451 Ecrou | 4 | |
| 8 | 4346193 4347431 Vis Usage: 1994-1994 | 6 | |
| 8 | 4347431 Vis Usage: 1995-1998 | 6 | |
| 9 | 4550356 Entretoise Usage: 1996- | LH | 1 | |
| 9 | 4550364 Entretoise Usage: 1996- | RH | 1 | |
| 10 | 4322996 Lame connexion Usage: 1994-1997 | 2 | |
| 10 | 4855979 Lame connexion Usage: 1998-1998 | 2 | |
| 10 | 4557831 4855979 Lame connexion Usage: 1994-1997 | 2 | |
| 10 | 4855979 Lame connexion Usage: 1998-1998 | 2 | |
| 12 | 4346136 92152010 Vis Usage: 1994-1994 | 4 | |
| 12 | 4347423 92152010 Vis Usage: 1995-1996 | 4 | |
| 12 | 4685624 92152010 Vis Usage: 1997-1998 | 4 | |
| 13 | 4325437 Tige Usage: LH | 1 | |
| 13 | 4325445 Tige Usage: RH | 1 | |
| 14 | 4346102 Clip | 4 | |
| 15 | 4325452 Tige Usage: LH | 1 | |
| 15 | 4325460 Tige Usage: RH | 1 | |
| 16 | 4037735 Bouton verrouillage | 1 | |
| 17 | 4325478 Tige Usage: LH | 1 | |
| 17 | 4325486 Tige Usage: RH | 1 | |
| 17 | 4493599 5116512 Tige commande Usage: LH | 1 | |
| 17 | 4493607 5116520 Tige commande Usage: RH | 1 | |
| 18 | 4325411 Tige Usage: LH | 1 | |
| 18 | 4325429 Tige Usage: RH | 1 | |
| 20 | 4421046 Clip | 2 | |
| 25 | 4605952 Manivelle d'ouverture Usage: LH | 1 | |
| 25 | 4605960 Manivelle d'ouverture Usage: RH | 1 | |
| 25 | 4821807 Manivelle d'ouverture Usage: 1997-1998 | LH,CHROME | 1 | |
| 25 | 4821815 Manivelle d'ouverture Usage: 1997-1998 | RH,CHROME | 1 | |
| 26 | 7978422 Vis | 2 | |
| 27 | 4420600 Couvercle | 2 |
