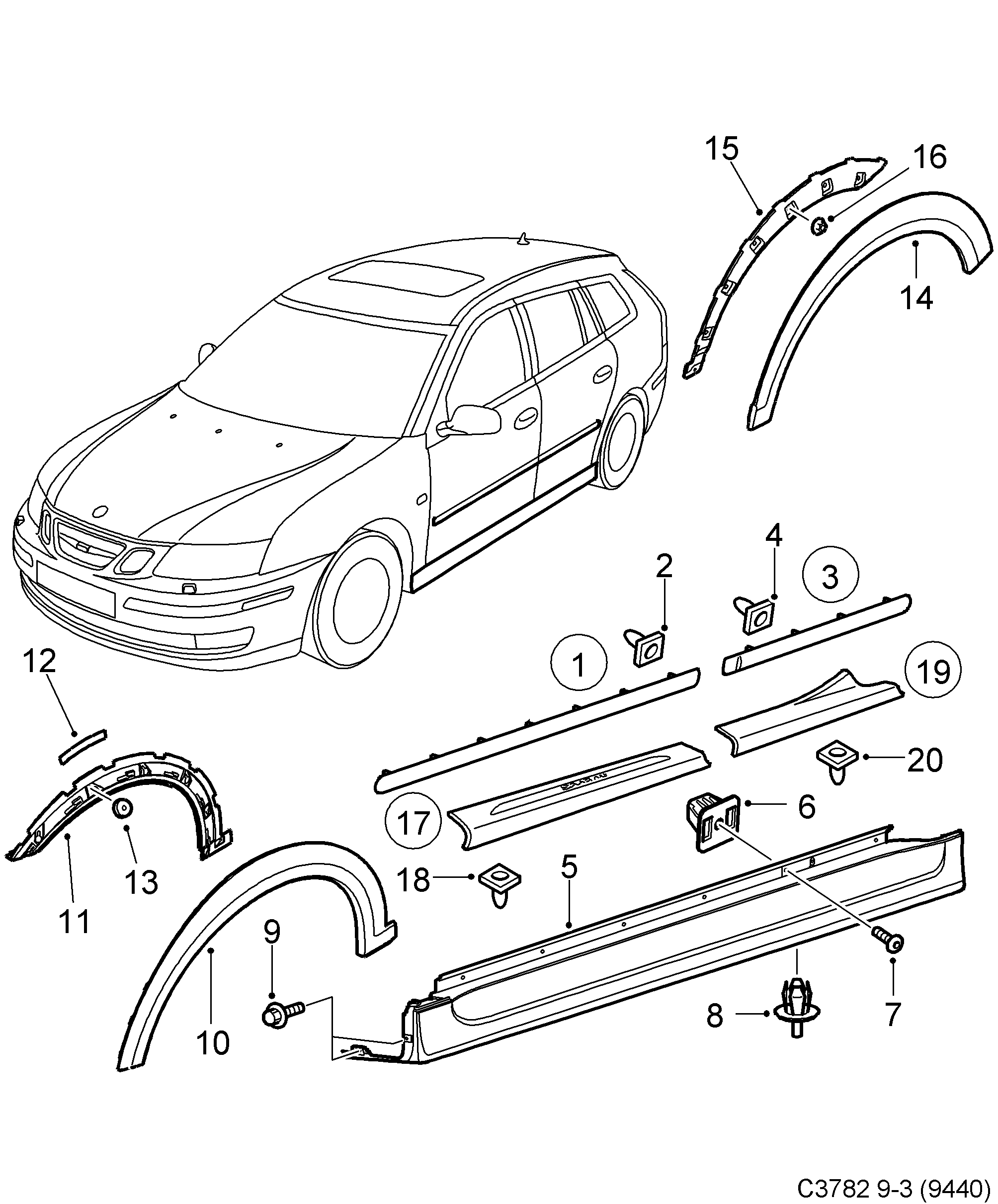

1192: Carrosserie, extérieur - Eléments extérieurs - Enjoliveur - Inférieur
(2006 - 2011 | 5D)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 12786316 Enjoliveur Usage: 2006-2007 | LH | 1 | |
| 1 | 12786317 Enjoliveur Usage: 2006-2007 | RH | 1 | |
| 2 | 92152204 Clip | 7 | |
| 3 | 12786324 Enjoliveur Usage: 2006-2007 | LH | 1 | |
| 3 | 12786325 Enjoliveur Usage: 2006-2007 | RH | 1 | |
| 4 | 92152204 Clip | 4 | |
| 5 | 12785877 Protection seuil Usage: 2006-2007 | Noir | LH | 1 | |
| 5 | 12785878 Protection seuil Usage: 2006-2007 | Noir | RH | 1 | |
| 5 | 12800621 Protection seuil Usage: 2006-2007 | Revêtue d'une couche fond | LH | 1 | |
| 5 | 12800622 Protection seuil Usage: 2006-2007 | Revêtue d'une couche fond | RH | 1 | |
| 5 | 12800623 Protection seuil Usage: 2006-2007 | Revêtue d'une couche fond | LH, Aero | 1 | |
| 5 | 12800623 Protection seuil Usage: 2008-2011 | Revêtue d'une couche fond | LH | 1 | |
| 5 | 12800624 Protection seuil Usage: 2006-2007 | Revêtue d'une couche fond | RH, Aero | 1 | |
| 5 | 12800624 Protection seuil Usage: 2008-2011 | Revêtue d'une couche fond | RH | 1 | |
| 5 | 12781608 Protection seuil Usage: 2010-2011 | 9-3X | LH | 1 | |
| 5 | 12781609 Protection seuil Usage: 2010-2011 | 9-3X | RH | 1 | |
| 6 | 92152040 Bague | 6 | |
| 7 | 92150386 92153006 Vis | 6 | |
| 8 | 90138810 Rivet | 6 | |
| 9 | 92150086 Vis à tête hexagonale Usage: 2006-2007 | 3 | |
| 9 | 92153149 Vis Usage: 2008-2011 | 3 | |
| 10 | 12841667 Plaque Usage: 2010-2011 | 9-3X | FRONT,LH | 1 | |
| 10 | 12841668 Plaque Usage: 2010-2011 | 9-3X | FRONT,RH | 1 | |
| 11 | 12841666 Retenue Usage: 2010-2011 | N'est pas une pièce de rechange distincte. 9-3X | FRONT,LH | 1 | |
| 11 | 12841665 Retenue Usage: 2010-2011 | N'est pas une pièce de rechange distincte. 9-3X | FRONT,RH | 1 | |
| 12 | 12849751 Clinquant de protection Usage: 9-3X | 2 | |
| 13 | 12845011 Agrafe Usage: 2010-2011 | 9-3X | FRONT | X | |
| 14 | 12841664 Plaque Usage: 2010-2011 | 9-3X | REAR,LH | 1 | |
| 14 | 12841663 Plaque Usage: 2010-2011 | 9-3X | REAR,RH | 1 | |
| 15 | 12841662 Retenue Usage: 2010-2011 | 9-3X | REAR,LH | 1 | |
| 15 | 12841661 Retenue Usage: 2010-2011 | 9-3X | REAR,RH | 1 | |
| 16 | 11089471 Ecrou Usage: 2010-2011 | 9-3X | 14 | |
| 17 | 12786332 Protection seuil Usage: LH, Linear | 1 | |
| 17 | 12786333 Protection seuil Usage: RH, Linear | 1 | |
| 17 | 12803114 Protection seuil Usage: 2006-2007 | LH, Arc | 1 | |
| 17 | 12803117 Protection seuil Usage: 2006-2007 | RH, Arc | 1 | |
| 17 | 12803115 Protection seuil Usage: LH, Vector | 1 | |
| 17 | 12803118 Protection seuil Usage: RH, Vector | 1 | |
| 17 | 12803116 Protection seuil Usage: LH, Aero | 1 | |
| 17 | 12803119 Protection seuil Usage: RH, Aero | 1 | |
| 17 | 12781860 Protection seuil Usage: 2008-2008 | Turbo X | LH | 1 | |
| 17 | 12781861 Protection seuil Usage: 2008-2008 | Turbo X | RH | 1 | |
| 17 | 12783600 Protection seuil Usage: 2010-2011 | 9-3X | LH | 1 | |
| 17 | 12783601 Protection seuil Usage: 2010-2011 | 9-3X | RH | 1 | |
| 18 | 92152182 Clip | X | |
| 19 | 12786334 Protection seuil Usage: LH | 1 | |
| 19 | 12786335 Protection seuil Usage: RH | 1 | |
| 20 | 92152182 Clip | X |
