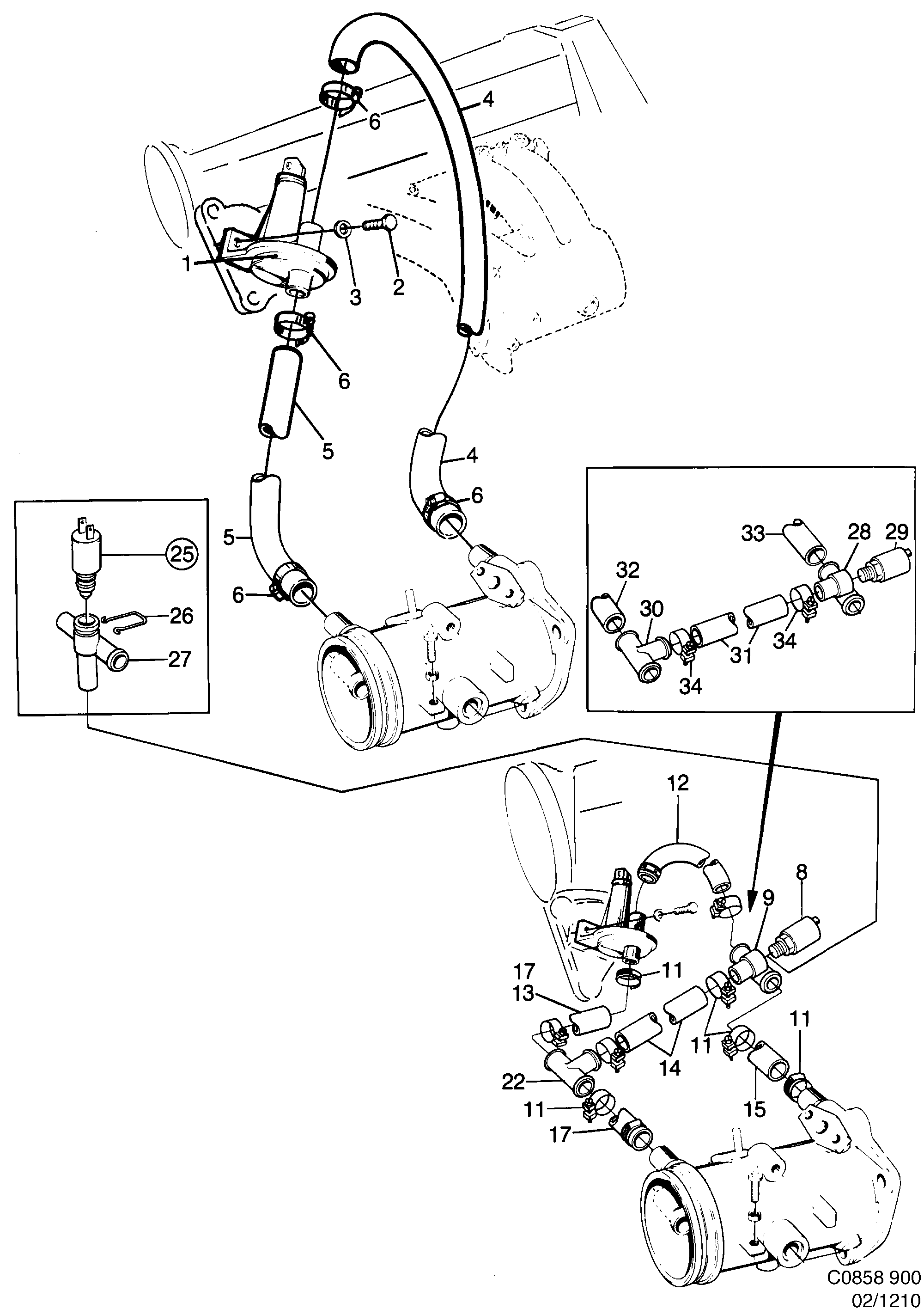

1210: Moteur - Système d'admission et d'échappement - Tiroir d'air additionnel
(1986 - 1989)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 8357832 Valve air | 1 | |
| 1 | 9313909 Valve air | 1 | |
| 2 | 9350653 Vis | 2 | |
| 3 | 8029951 Rondelle | 2 | |
| 4 | 9308974 Flexible | 1 | |
| 5 | 7517915 Flexible | 1 | |
| 6 | 7970064 Collier serrage | 4 | |
| 8 | 8334005 Vanne électromagnétique Usage: AC | 1 | |
| 9 | 7528144 Tuyau-T Usage: AC | 1 | |
| 11 | 7975543 Collier serrage | 6 | |
| 12 | 7526031 Flexible Usage: AC | 1 | |
| 12 | 7527559 Flexible | 1 | |
| 13 | 7526056 Flexible Usage: AC | 1 | |
| 14 | 9367525 Flexible Usage: AC | 1 | |
| 15 | 7526049 Flexible Usage: AC | 1 | |
| 15 | 7527575 Flexible | 1 | |
| 17 | 7526064 Flexible Usage: AC | 1 | |
| 17 | 7526056 Flexible | 2 | |
| 22 | 8317828 Raccord Usage: AC | 1 | |
| 25 | 8820722 Vanne électromagnétique Usage: 1986-1986 | AC CLARION | 1 | |
| 26 | 8820748 Clip Usage: 1986-1986 | AC CLARION | 1 | |
| 27 | 8820755 Tuyau-T Usage: 1986-1986 | AC CLARION | 1 | |
| 28 | 7528144 Tuyau-T | 1 | |
| 29 | 8334005 Vanne électromagnétique | 1 | |
| 30 | 8317828 Raccord | 1 | |
| 31 | 9367525 Flexible | 1 | |
| 32 | 9367483 Flexible | 1 | |
| 33 | 7527567 Flexible | 1 | |
| 34 | 7975543 Collier serrage | 6 |
