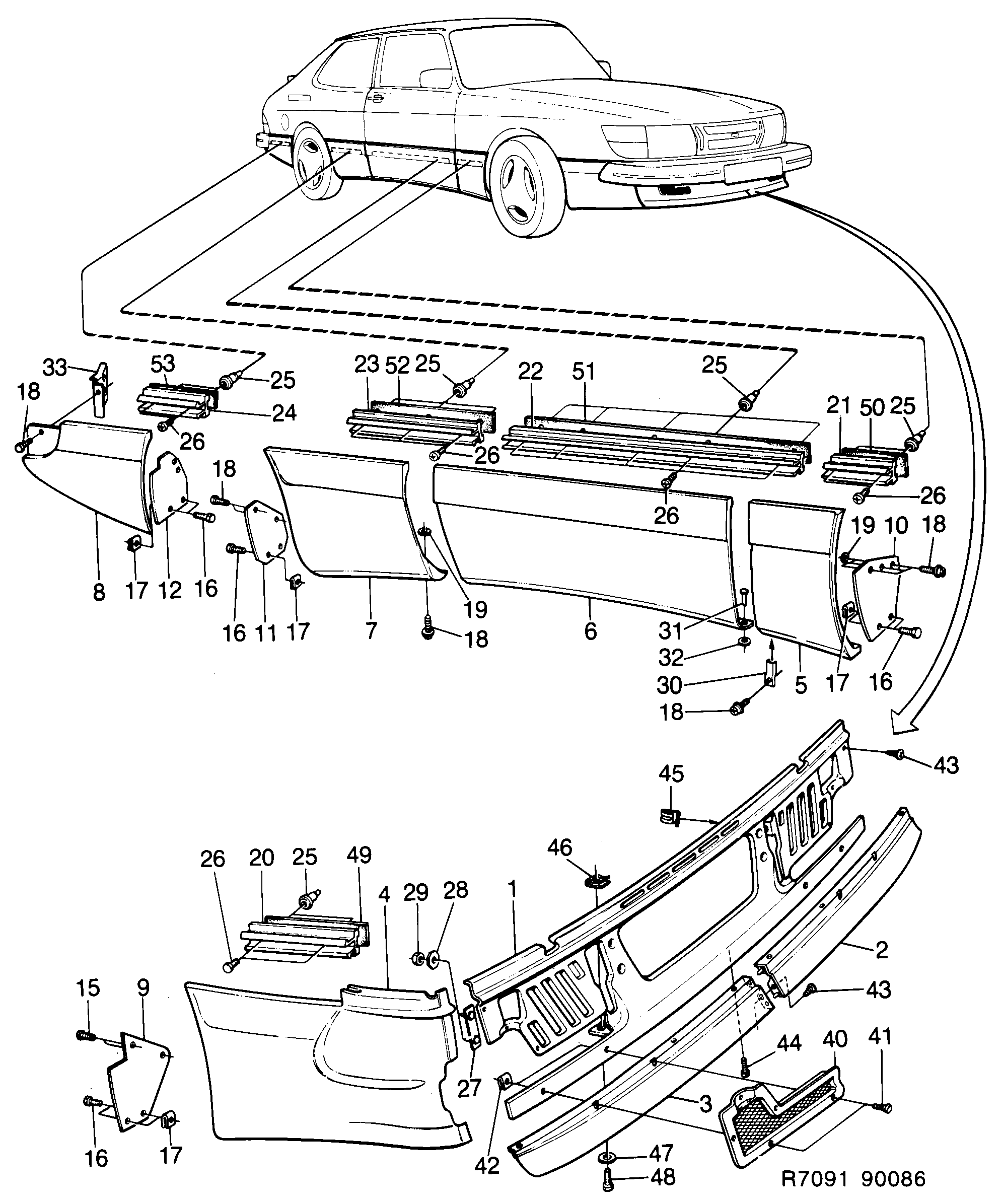

1240: Carrosserie, extérieur - Eléments extérieurs - Kit Aero
(1986 | AERO)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 6913651 Spoiler | 1 | |
| 2 | 6913636 Spoiler Usage: LH | 1 | |
| 3 | 6913644 Spoiler Usage: RH | 1 | |
| 4 | 6911093 Bouclier Usage: LH | 1 | |
| 4 | 6911101 Bouclier Usage: RH | 1 | |
| 5 | 6912430 Bouclier Usage: LH | 1 | |
| 5 | 6912448 Bouclier Usage: RH | 1 | |
| 6 | 6912539 Bouclier Usage: LH | 1 | |
| 6 | 6912547 Bouclier Usage: RH | 1 | |
| 7 | 6911176 Bouclier Usage: LH | 1 | |
| 7 | 6911184 Bouclier Usage: RH | 1 | |
| 8 | 6911135 Bouclier Usage: LH | 1 | |
| 8 | 6911143 Bouclier Usage: RH | 1 | |
| 9 | 9293630 Pièce extrémité Usage: LH | 1 | |
| 9 | 9293648 Pièce extrémité Usage: RH | 1 | |
| 10 | 9285875 Pièce extrémité | 2 | |
| 11 | 9285867 Pièce extrémité | 2 | |
| 12 | 9285859 Pièce extrémité | 2 | |
| 15 | 7975790 Vis | 4 | |
| 16 | 7975774 92153149 Vis | 16 | |
| 17 | 7968001 Ecrou d'agrafe | 16 | |
| 18 | 7975782 Vis | 20 | |
| 19 | 9230293 Rondelle | 20 | |
| 20 | 6910855 Profile fixation Usage: LH | 1 | |
| 20 | 6910863 Profile fixation Usage: RH | 1 | |
| 21 | 9293697 Profile fixation Usage: LH | 1 | |
| 21 | 6915201 Profile fixation Usage: RH | 1 | |
| 22 | 6910830 Profile fixation Usage: LH | 1 | |
| 22 | 6910848 Profile fixation Usage: RH | 1 | |
| 23 | 9293739 Profile fixation | 2 | |
| 24 | 6910871 Profile fixation Usage: LH | 1 | |
| 24 | 6910889 Profile fixation Usage: RH | 1 | |
| 25 | 6911804 Bague | 28 | |
| 26 | 7922354 92153219 Vis | 28 | |
| 27 | 8266884 Fixation | 2 | |
| 28 | 8266835 Rondelle | 4 | |
| 29 | 8029555 8151227 Ecrou | 4 | |
| 30 | 6921415 Etrier | 2 | |
| 31 | 6916977 Rivet borgne | 12 | |
| 32 | 8073090 Rondelle | 12 | |
| 33 | 9285891 Fixation Usage: LH | 1 | |
| 33 | 9285909 Fixation Usage: RH | 1 | |
| 40 | 9291121 Châssis Usage: LH | 1 | |
| 40 | 9291139 Châssis Usage: RH | 1 | |
| 41 | 7977036 Vis | 10 | |
| 42 | 9266545 Clip | 10 | |
| 43 | 7970601 92153219 Vis | 5 | |
| 44 | 8059255 7972789 Vis | 6 | |
| 45 | 8268500 Clip | 2 | |
| 46 | 9236753 Clip | 3 | |
| 47 | 8266835 Rondelle | 3 | |
| 48 | 7973621 Vis | 3 | |
| 49 | 6919518 Cale | 2 | |
| 50 | 6919195 Cale | 2 | |
| 51 | 6919849 Cale | 2 | |
| 52 | 6919542 Cale | 2 | |
| 53 | 6919559 Cale | 2 | |
9288812 Kit montage Usage: SPOILER | 1 | ||
6914352 Lisse Usage: 1028 MM | X |
