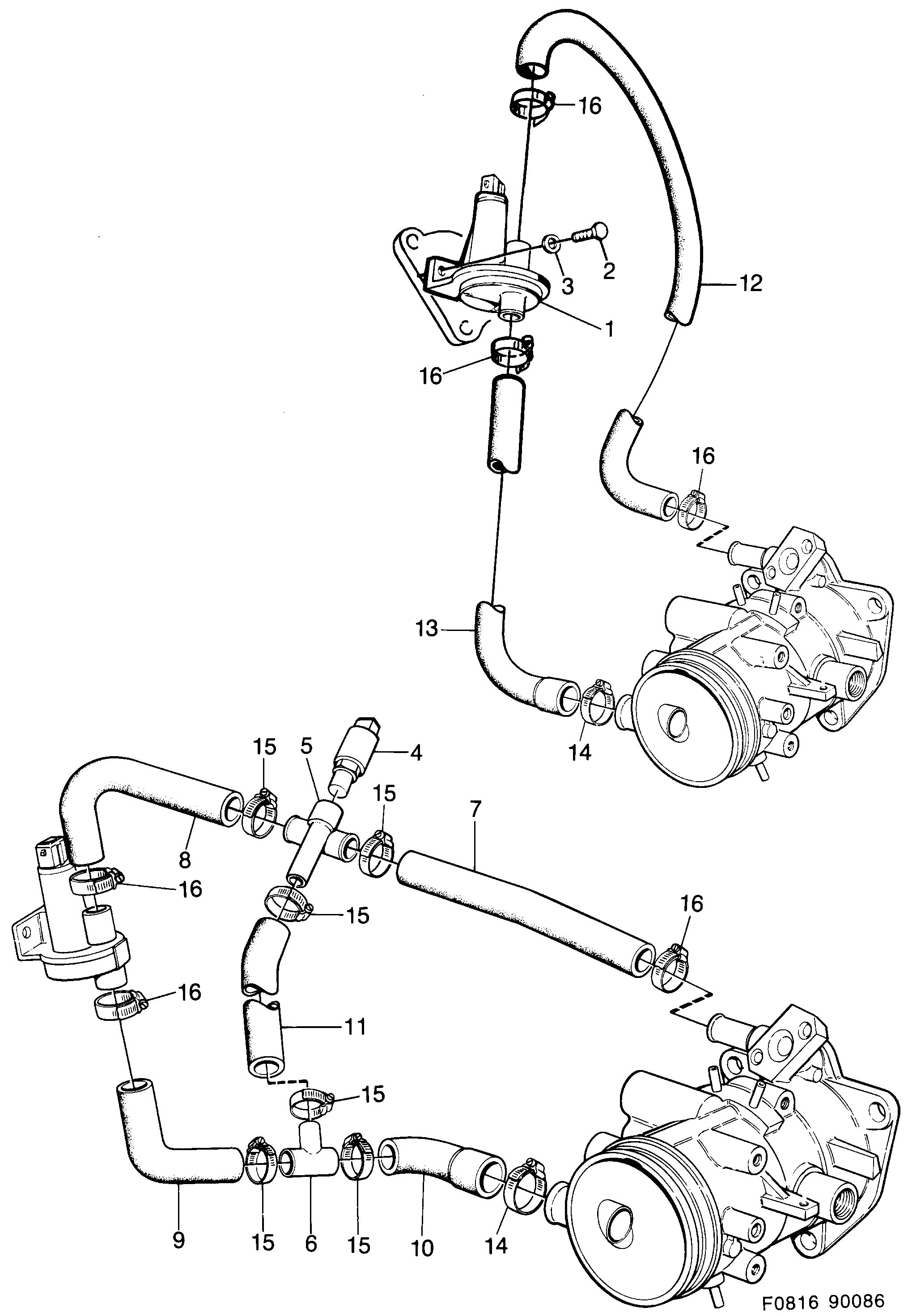

1270: Moteur - Système d'admission et d'échappement - Tiroir d'air additionnel
(1986 - 1989)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 8357832 Valve air | 1 | |
| 1 | 9313909 Valve air Usage: 1989-1989 | I | Sans catalyseur. | 1 | |
| 2 | 9350653 Vis | 2 | |
| 3 | 8029951 Rondelle | 2 | |
| 4 | 8334005 Vanne électromagnétique Usage: AC | 1 | |
| 5 | 7528144 Tuyau-T Usage: AC | 1 | |
| 6 | 8317828 Raccord Usage: AC | 1 | |
| 7 | 7526361 Flexible Usage: AC | 1 | |
| 8 | 7526379 Flexible Usage: AC | 1 | |
| 9 | 7526346 Flexible Usage: AC | 1 | |
| 10 | 7526353 Flexible Usage: AC | 1 | |
| 11 | 7526338 Flexible Usage: AC | 1 | |
| 12 | 7502800 Flexible | 1 | |
| 13 | 7502818 Flexible | 1 | |
| 14 | 7970072 Collier serrage | 1 | |
| 15 | 7975543 Collier serrage Usage: AC | 6 | |
| 16 | 7970064 Collier serrage | 3 | |
8605081 Jeu comp ralent Usage: 1988-1989 | B202TURBO | Sans catalyseur. | 1 |
