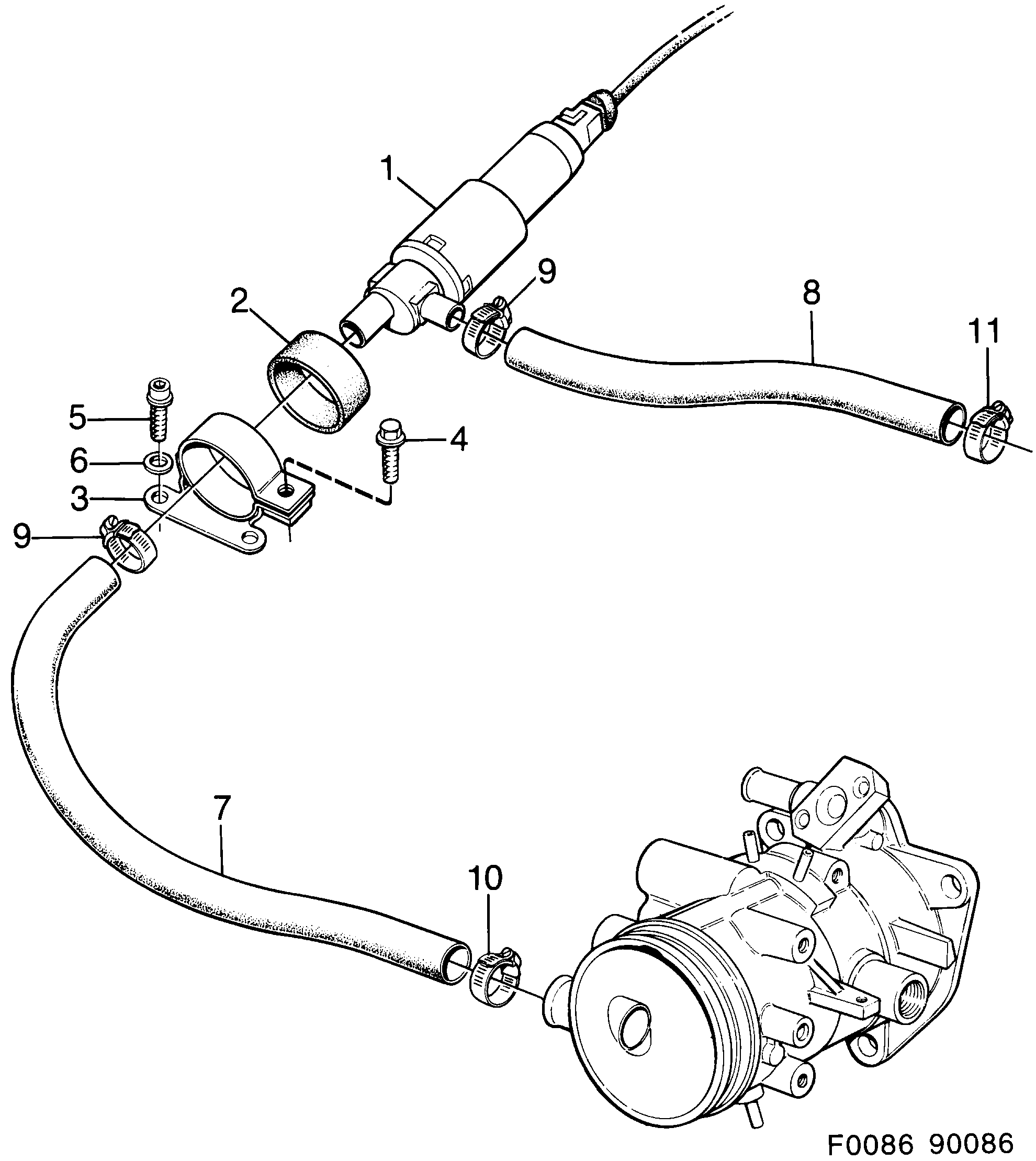

1300: Moteur - Système d'admission et d'échappement - Régulation automatique du ralenti - Commande
(1986 - 1989 | A)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7516792 Valve commande Usage: 1986-1987 | 1 | |
| 1 | 7586019 Valve commande Usage: 1988-1988 | I | 1 | |
| 1 | 7516792 Valve commande Usage: 1988-1988 | TURBO | 1 | |
| 1 | 7586019 Valve commande Usage: 1989-1989 | Valable aussi pour SE 1988B. | 1 | |
| 2 | 7565351 Anneau Usage: 1986-1987 | 1 | |
| 2 | 7569056 Bague caoutchouc Usage: 1988-1988 | I | 1 | |
| 2 | 7565351 Anneau Usage: 1988-1988 | TURBO | 1 | |
| 2 | 7569056 Bague caoutchouc Usage: 1989-1989 | Valable aussi pour SE 1988B. | 1 | |
| 3 | 7517733 Fixation Usage: 1986-1987 | 1 | |
| 3 | 7480916 Fixation Usage: 1988-1988 | I | 1 | |
| 3 | 7517733 Fixation Usage: 1988-1988 | TURBO | 1 | |
| 3 | 7480916 Fixation Usage: 1989-1989 | Valable aussi pour SE 1988B. | 1 | |
| 4 | 8125023 Vis | 1 | |
| 5 | 9350653 Vis | 2 | |
| 6 | 8029951 Rondelle | 2 | |
| 7 | 7517923 Flexible Usage: 1986-1987 | 1 | |
| 7 | 7583867 Flexible Usage: 1988-1988 | I | 1 | |
| 7 | 7517923 Flexible Usage: 1988-1988 | TURBO | 1 | |
| 7 | 7583867 Flexible Usage: 1989-1989 | Valable aussi pour SE 1988B. | 1 | |
| 8 | 7524176 Flexible Usage: 1986-1987 | 1 | |
| 8 | 7587173 Flexible Usage: 1988-1988 | I | 1 | |
| 8 | 7587181 Flexible Usage: 1988-1988 | TURBO | 1 | |
| 8 | 7587173 Flexible Usage: 1989-1989 | Valable aussi pour SE 1988B. | 1 | |
| 9 | 7963531 7970072 Collier serrage Usage: 1986-1988 | TURBO | 2 | |
| 9 | 7963549 7970080 Collier serrage Usage: 1989-1989 | TURBO | 2 | |
| 10 | 7963531 7970072 Collier serrage Usage: TURBO | 1 | |
| 11 | 7963531 7970072 Collier serrage Usage: 1986-1987 | TURBO | 1 | |
| 11 | 7963523 7970064 Collier serrage Usage: 1988-1989 | TURBO | 1 |
