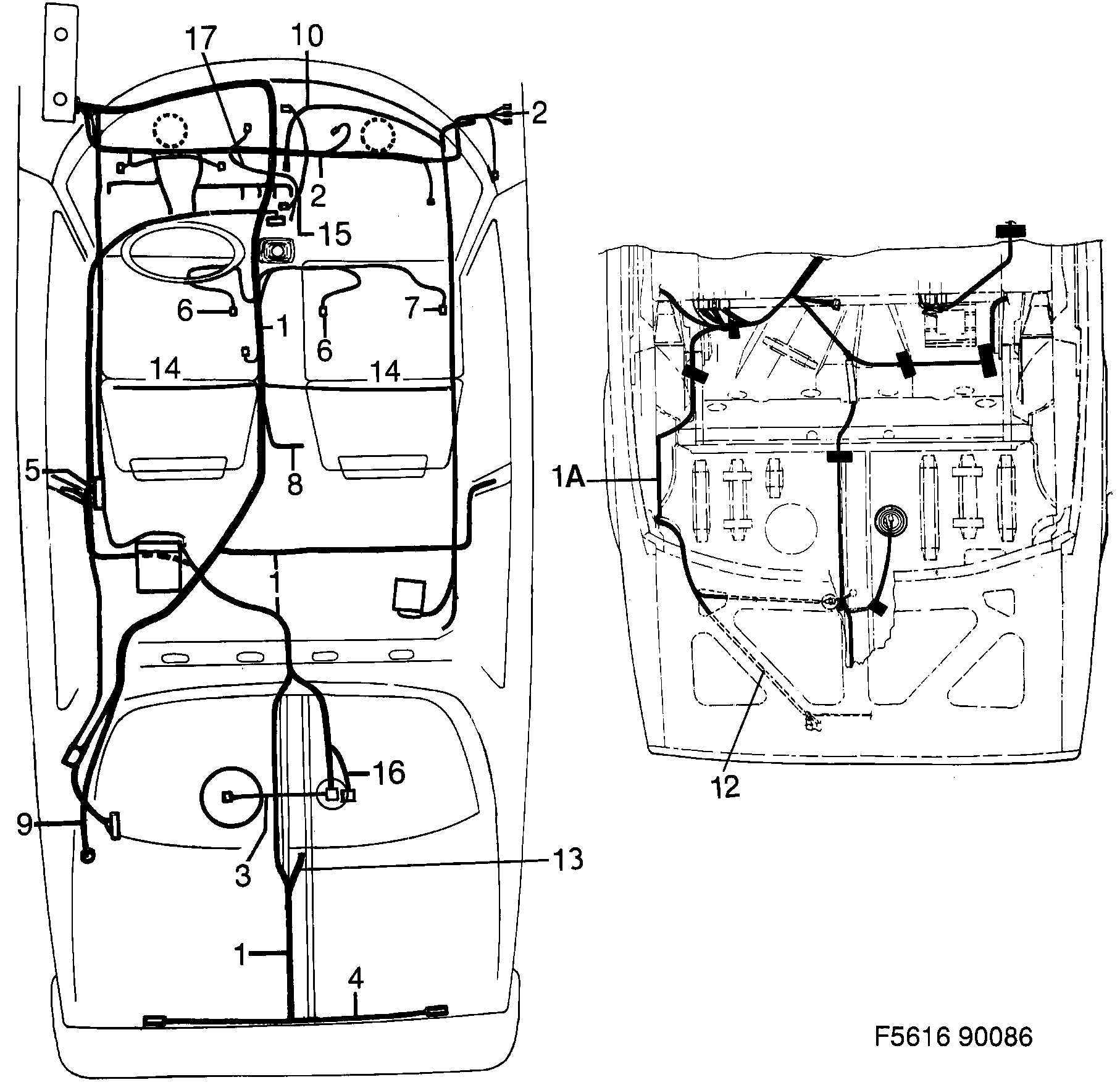

1300: Electrical, general - Wiring and fuses - Instruments and rear
(1989)
Also valid for SE 1988B.
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9568635 Cable harness Usage: B201C, I | rear | 1 | |
| 1 | 9568676 Cable harness Usage: B201TURBO, B202 | rear | 1 | |
| 1 | 9568627 Cable harness Usage: B201C, I | rear | 1 | |
| 1 | 9568650 Cable harness Usage: B201TURBO, B202 | rear | 1 | |
| 1 | 9568684 Cable harness Usage: rear | 1 | |
| 1 | 4060208 Cable harness Usage: RHD | rear | 1 | |
| 1 | 9568692 Cable harness Usage: rear | 1 | |
| 1 | 9568700 Cable harness Usage: rear | 1 | |
| 1 | 9568718 Cable harness Usage: For cars with automatic belts. rear | 1 | |
| 1A | 9597576 Cable harness Usage: rear | 1 | |
| 1A | 9597568 Cable harness Usage: rear | 1 | |
| 2 | 9568163 Cable harness Usage: B201 | instrument | 1 | |
| 2 | 9568197 Cable harness Usage: RHD | B201 | instrument | 1 | |
| 2 | 9568171 Cable harness Usage: B202 | instrument | 1 | |
| 2 | 9568205 Cable harness Usage: RHD | B202 | instrument | 1 | |
| 2 | 9568239 Cable harness Usage: B202 | instrument | 1 | |
| 2 | 9568254 Cable harness Usage: RHD | B202 | instrument | 1 | |
| 3 | 9559386 Cable harness Usage: With pre-pump. fuel pump | 1 | |
| 3 | 9568734 Cable harness Usage: B202 | With pre-pump. fuel pump | 1 | |
| 3 | 9559378 Cable harness Usage: Without pre-pump. fuel pump | 1 | |
| 4 | 8568701 Cable harness Usage: rear light | 1 | |
| 5 | 9557760 Cable harness Usage: interior lighting | 1 | |
| 6 | 8570210 Cable harness Usage: Driver's side. heating pad | 1 | |
| 6 | 8570228 Cable harness Usage: -1989 | Driver's side and passenger side. heating pad | 1 | |
| 6 | 4068839 Cable harness Usage: 1989- | Driver's side and passenger side. heating pad | 1 | |
| 6 | 9557935 Cable harness Usage: -1989 | Rheostat. heating pad | 1 | |
| 6 | 4068847 Cable harness Usage: 1989- | Rheostat. heating pad | 1 | |
| 6 | 9560343 Cable harness Usage: LHD | For cars with automatic belts. Rheostat. heating pad | LH | 1 | |
| 6 | 9560350 Cable harness Usage: LHD | For cars with automatic belts. Thermostat. heating pad | RH | 1 | |
| 7 | 8570236 Cable harness Usage: seat-belt warning | 1 | |
| 8 | 8593295 Cable harness Usage: seat-belt warning | 1 | |
| 9 | 9564477 Antenna cable Usage: antenna | 1 | |
| 10 | Cable harness Usage: speed control system | 1 | |
| 12 | 9596586 Cable harness Usage: license plate light | 1 | |
| 13 | 9553553 Cable harness Usage: high mounted brake light | 1 | |
| 14 | 9568817 Cable harness Usage: LHD | B202 | For cars with automatic belts. rear | 1 | |
| 15 | Cable harness Usage: LHD | radio-equalizer | ||
| 16 | 9122086 Cable harness Usage: C | tank sensor | 1 | |
| 16 | 9122086 Cable harness Usage: -1989 | I, TURBO | tank sensor | 1 | |
| 17 | 8529265 Cable Usage: ashtray | 1 |
