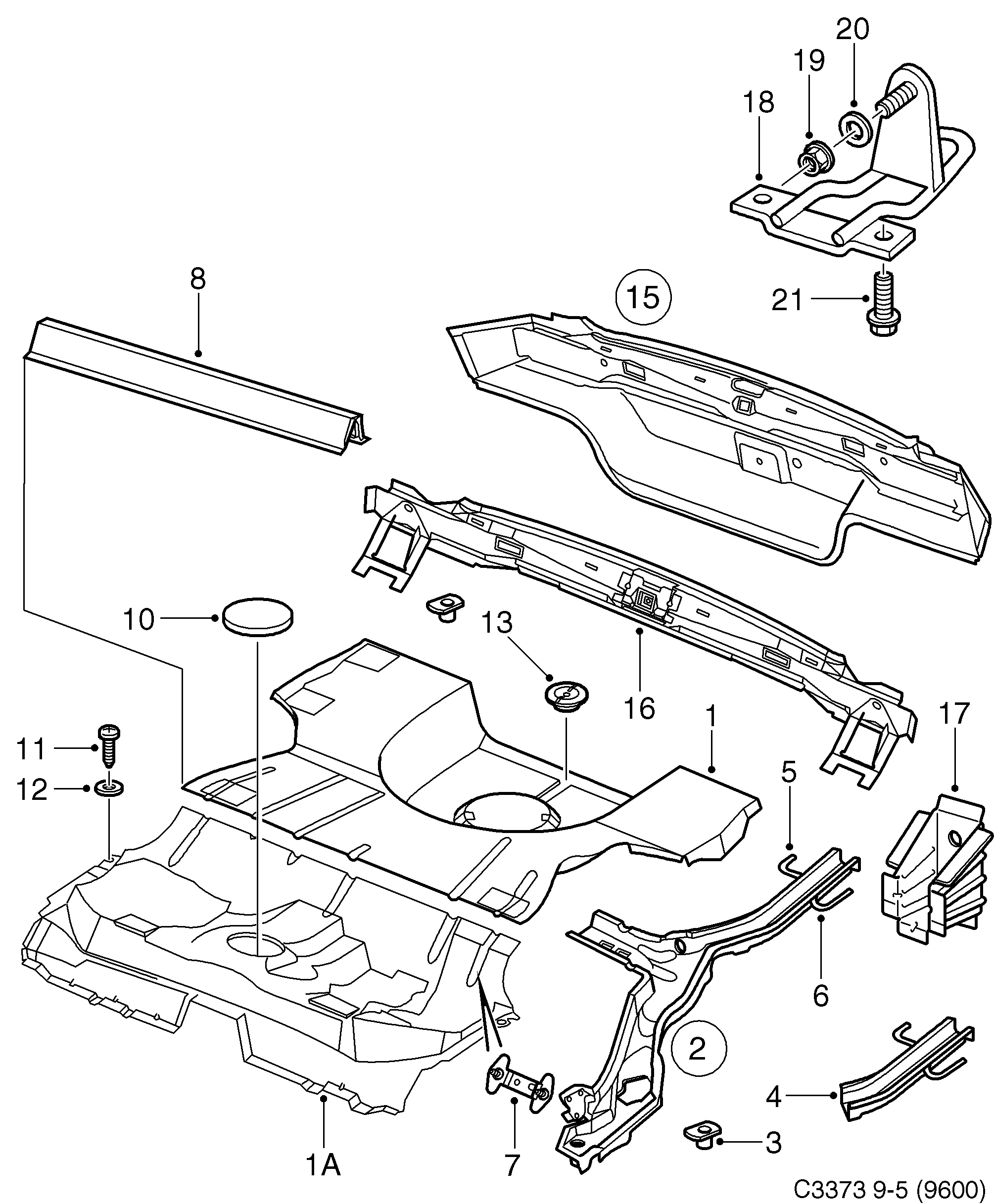

132: Carrosserie, extérieur - Corps de carrosserie - Plancher arrière
(2002 - 2010 | 4D)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 5412549 90188294 Plancher Usage: -2004 | 1 | |
| 1 | 5413968 12774547 Plancher Usage: 2004-2006 | 1 | |
| 1 | 12774547 Tôle plancher Usage: 2007-2010 | 1 | |
| 1A | Plancher complet Usage: Uniquement modèle de production courante | ||
| 2 | 4825014 Poutre plancher Usage: LH | 1 | |
| 2 | 4825022 Poutre plancher Usage: RH | 1 | |
| 3 | 4347589 Ecrou de benne | 5 | |
| 4 | 4825030 Poutre plancher Usage: LH | 1 | |
| 4 | 4825048 Poutre plancher Usage: RH | 1 | |
| 5 | 4828497 Console Usage: LH | 1 | |
| 6 | 4828505 Console Usage: RH | 1 | |
| 7 | 5412317 Plaque boulons | 2 | |
| 8 | 5071386 Poutre | 1 | |
| 10 | 8228702 Joint | 1 | |
| 10 | 12768778 Joint Usage: 2005-2005 | BioPower | 1 | |
| 10 | 12768778 Joint Usage: 2006-2010, LHD | 1 | |
| 11 | 4495065 Vis | 2 | |
| 12 | 7916521 92153204 Rondelle Usage: -2007 | 2 | |
| 12 | 92153204 Rondelle Usage: 2007- | 2 | |
| 13 | 24441493 Tampon | X | |
| 15 | 5412069 Panneau extrémité arrière | 1 | |
| 16 | 5412648 Seuil | 1 | |
| 17 | 5412077 Poutre entretoise Usage: LH | 1 | |
| 17 | 5412085 Poutre entretoise Usage: RH | 1 | |
| 18 | 4596110 Oeillet attelage | 1 | |
| 19 | 7967979 Ecrou | 1 | |
| 20 | 8934259 Rondelle Usage: 2002-2008 | 1 | |
| 20 | 12779142 Rondelle Usage: 2009-2010 | 1 | |
| 21 | 8130064 92152121 Vis | 2 |
