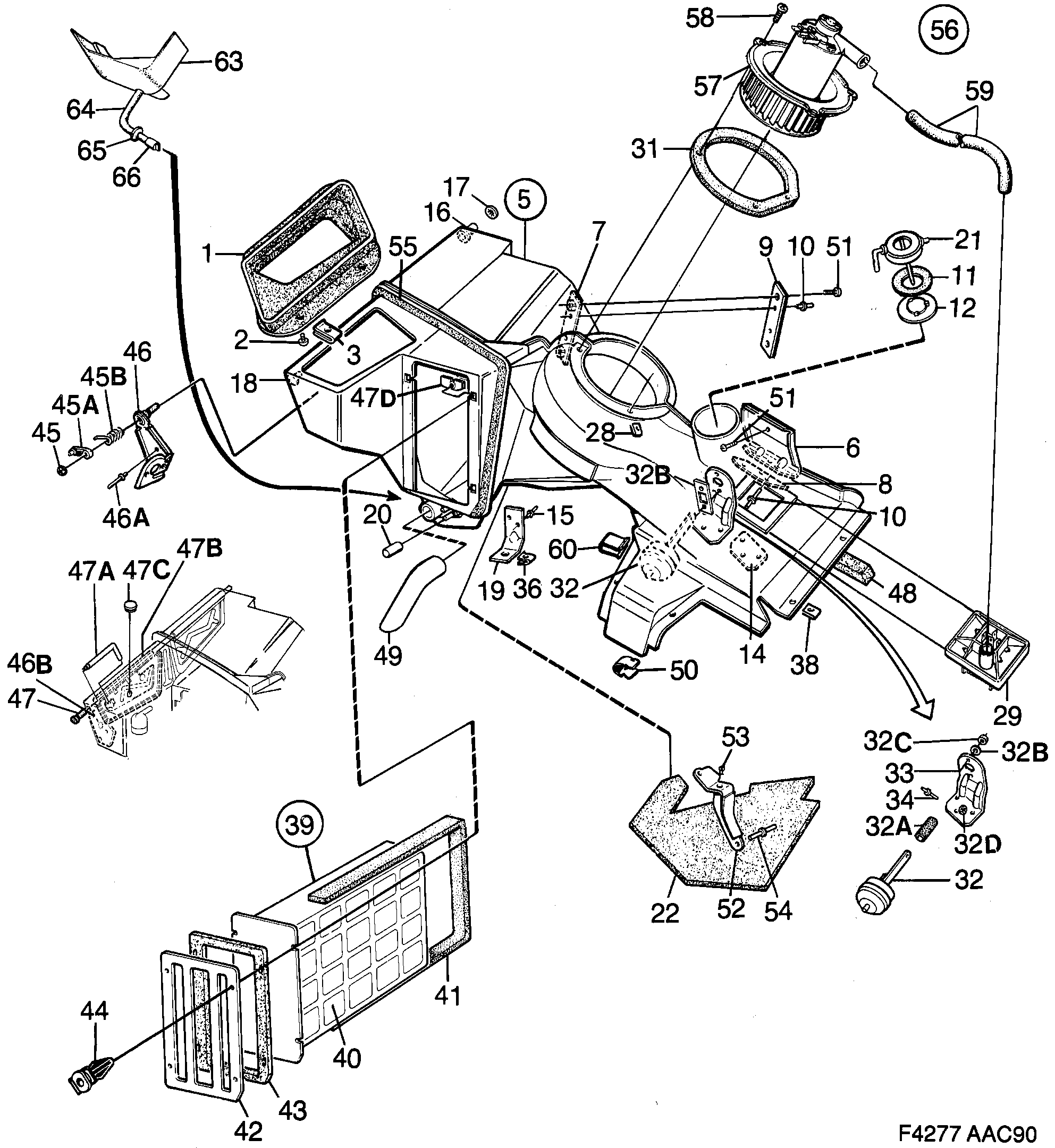

140: Chauffage et ventilation - Ventilateur - Filtre air
(1990 - 1993)
Concerne aussi CV 1994
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9400623 Prise air | 1 | |
| 2 | 7922354 92153219 Vis | 4 | |
| 3 | 9426909 Ecrou | 4 | |
| 5 | 4072583 Centrale de chauffage Usage: 1990-1990 | 1 | |
| 5 | 4074290 Centrale de chauffage Usage: 1991-1993 | 1 | |
| 5 | 4072591 Centrale de chauffage Usage: AC | 1 | |
| 6 | 9400714 Console Usage: LH | 1 | |
| 7 | 9461278 Console Usage: RH | 1 | |
| 8 | 9417874 Tôle Usage: LH | 1 | |
| 9 | 9461260 Tôle Usage: RH | 1 | |
| 10 | 7972052 Rivet | 5 | |
| 11 | 9417916 Joint | 1 | |
| 12 | 9422767 Disque papillon | 1 | |
| 14 | 9426008 Tôle | 1 | |
| 15 | 7972045 Rivet | 4 | |
| 16 | 9400805 Palier | 1 | |
| 17 | 9442203 Collier serrage | 1 | |
| 18 | 7162308 Tampon | 1 | |
| 19 | 9401282 Console | 1 | |
| 20 | 9481912 Tampon | 1 | |
| 21 | 9417908 Disque papillon | 1 | |
| 22 | 9482175 Isolant | 1 | |
| 28 | 7968555 Ecrou d'agrafe | 3 | |
| 29 | 9558784 Résistance | 1 | |
| 31 | 9418070 Joint | 1 | |
| 32 | 9479924 Servo de vide | 1 | |
| 32A | 9444811 Protection | 1 | |
| 32B | 9450487 Rondelle | 1 | |
| 32C | 7940406 Ecrou | 2 | |
| 32D | 9441221 Collier serrage | 1 | |
| 33 | 9417924 Console | 1 | |
| 34 | 7972045 Rivet | 3 | |
| 36 | 7933682 Ecrou ressort | 1 | |
| 38 | 9441239 Ecrou d'agrafe | 5 | |
| 39 | 9479981 Filtre air Usage: 1990-1990 | 1 | |
| 40 | 9401126 Filtre habitacle Usage: 1990-1990 | 1 | |
| 41 | 9418054 Joint Usage: 1990-1990 | 1 | |
| 42 | 9418062 Couvercle Usage: 1990-1990 | 1 | |
| 43 | 9481060 Joint Usage: 1990-1990 | 1 | |
| 44 | 9479973 Pince serrage Usage: 1990-1990 | 4 | |
| 40 | 4072427 Filtre habitacle Usage: 1991-1993 | 1 | |
| 42 | 4072617 Couvercle Usage: 1991-1993 | 1 | |
| 43 | 4072625 Joint Usage: 1991-1993 | 1 | |
| 44 | 9479973 Pince serrage Usage: 1991-1993 | 2 | |
| 45 | 4073748 Clip Usage: AC | 1 | |
| 45A | 9400896 Levier Usage: AC | 1 | |
| 45B | 9420274 Ressort Usage: AC | 1 | |
| 46 | 9420282 Console Usage: AC | 1 | |
| 46A | 7972326 92153058 Rivet Usage: AC | 3 | |
| 46B | 9438250 Plaque d'interrupteur Usage: AC | 1 | |
| 47 | 9422403 Axe palier Usage: AC | 1 | |
| 47A | 9420241 Arbre Usage: AC | 1 | |
| 47B | 9481680 Volet Usage: AC | 1 | |
| 47C | 7163074 Tampon Usage: AC | 2 | |
| 47D | 9465600 Ecrou Usage: AC | 4 | |
| 48 | 9401159 Joint | 1 | |
| 49 | 4070413 Durit drainage | 1 | |
| 50 | 9451253 Clip | 2 | |
| 51 | 8059602 8059610 Vis | 3 | |
| 52 | 9432964 Console | 1 | |
| 53 | 8209009 9388588 Butée Usage: 1990-1991 | 1 | |
| 53 | 9388588 Tampon Usage: 1992-1993 | 1 | |
| 54 | 7961709 Rivet Usage: 1990-1991 | 2 | |
| 54 | 8235178 Rivet pop Usage: 1992-1993 | 2 | |
| 55 | 9481789 Joint | 1 | |
| 56 | 8605172 Jeu motoventilateur Usage: 1990-1990 | 1 | |
| 56 | 8605248 Jeu motoventilateur Usage: 1991-1993 | 1 | |
| 57 | 4073474 Ventilateur Usage: 1990-1990 | N'est pas une pièce de rechange distincte. | 1 | |
| 57 | 4382362 Ventilateur Usage: 1991-1993 | N'est pas une pièce de rechange distincte. | (4073698) | 1 | |
4350427 Boîtier de connecteur Usage: 1991-1993 | 1 | ||
7155187 Cosse Usage: 1991-1993 | 1 | ||
| 58 | 7922735 Vis | 3 | |
| 59 | 8557001 Flexible | 1 | |
| 60 | 9462557 Clip | 1 | |
| 63 | 9481839 Jeu | 1 | |
| 64 | 9363276 Flexible carburant | 1 | |
| 65 | 8245888 Tampon | 1 | |
| 66 | 9481904 Valve antiretour | 1 |
