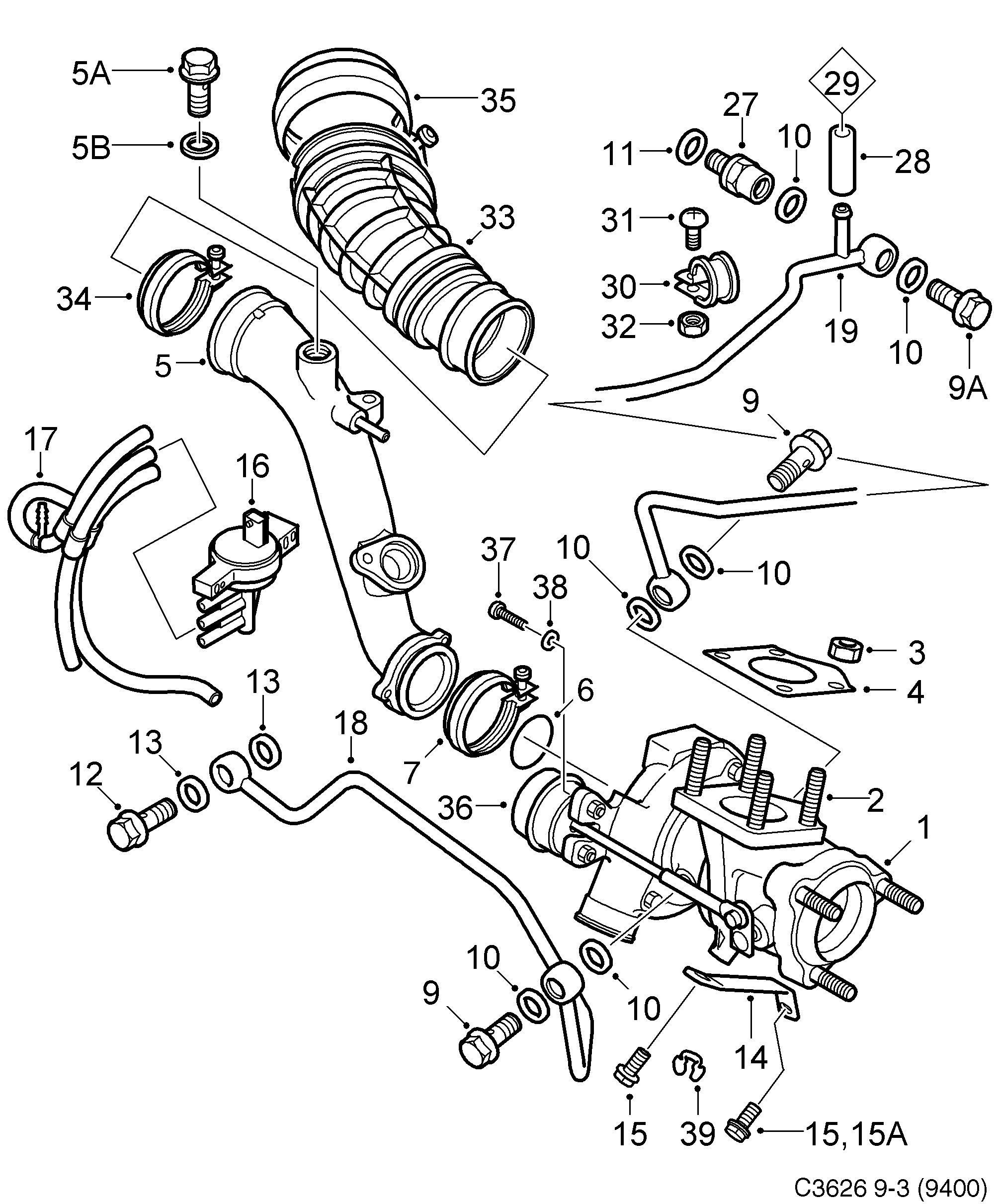

1425: Moteur - Système de suralimentation - Turbocompresseur
(1999 - 2003 | TURBO, PETROL, B205, B235)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9172180 55559825 Turbocompresseur Usage: 1999-2001 | B205R, B235R | Egalement disponible en unité de rechange. | 1 | |
| 1 | 55559825 Turbocompresseur Usage: 2002-2002 | B205R, B235R | 1 | |
| 1 | 9172180 55559825 Turbocompresseur Usage: 2003-2003 | B205R | Egalement disponible en unité de rechange. | 1 | |
| 1 | 55559825 Turbocompresseur Usage: 2003-2003 | B205R | 1 | |
| 1 | 9172123 55560913 Turbocompresseur Usage: 2000-2000 | B205L | 1 | |
| 1 | 9198631 55560913 Turbocompresseur Usage: 2001-2001 | B205L, B205E | 1 | |
| 1 | 5955703 55560913 Turbocompresseur Usage: 2001-2003 | B205L, B205E | 1 | |
| 2 | 9357138 90490326 Vis | 7 | |
| 3 | 9116674 30520445 Ecrou | 4 | |
| 4 | 9113937 Joint | 1 | |
| 5 | 5084785 30584297 Tuyau Usage: 1999-1999 | 1 | |
| 5 | 9192568 30584297 Tuyau Usage: 2000-2000 | 1 | |
| 5 | 9173378 Tuyau Usage: 2000-2000 | B205 | 1 | |
| 5 | 9192568 30584297 Tuyau Usage: 2001-2003 | 1 | |
| 5A | |||
| 5B | Rondelle | ||
| 6 | 90490362 Joint torique Usage: (9179615) | 1 | |
| 7 | 9178666 55559479 Collier serrage | 1 | |
| 9 | 9143967 90490325 Vis banjo Usage: 1999-1999 | M14 | 3 | |
| 9 | 9136524 90490324 Vis banjo Usage: 2000-2002 | B205R, B235R | M12 | 2 | |
| 9 | 8123895 92150976 Vis Usage: 2003-2003 | B205E, B205L | M12 | 1 | |
| 9 | 9136524 90490324 Vis banjo Usage: 2003-2003 | B205R | M12 | 2 | |
| 9 | 8123895 92150976 Vis Usage: 2003-2003 | B205R, B235R | M12 | 3 | |
| 9 | 9143967 90490325 Vis banjo Usage: 2000-2003 | M14 | 2 | |
| 9 | 8123903 92150977 Vis banjo Usage: 2003-2003 | B205E, B205L | M14 | 3 | |
| 9 | 8123903 92150977 Vis banjo Usage: 2003-2003 | B205R, B235R | M14 | 1 | |
| 9A | 5125406 Vis banjo Usage: 2000-2003 | 1 | |
| 10 | 92150435 Joint Usage: 1999-2003 | B205E | 6 | |
| 10 | 8124141 92150435 Joint Usage: 2000-2003 | B205L | 6 | |
| 10 | 8124133 11066422 Joint Usage: 1999-2002 | B205R, B235R | 6 | |
| 10 | 8124133 11066422 Joint Usage: 2003-2003 | B205R | 2 | |
| 11 | 8326712 4161162 Joint | 1 | |
| 12 | 9136524 90490324 Vis banjo | 1 | |
| 13 | 8124133 11066422 Joint Usage: 2000-2003 | B205L | 1 | |
| 13 | 8124133 11066422 Joint Usage: 2000-2002 | B205R, B235R | 2 | |
| 13 | 8124133 11066422 Joint Usage: 2003-2003 | B205R | 2 | |
| 13 | 8124133 11066422 Joint Usage: B205E | 2 | |
| 14 | 9179342 55559093 Tirant | 1 | |
| 15 | 7978182 92150012 Vis Usage: 1999-2001 | 2 | |
| 15 | 7978182 92150012 Vis Usage: 2002-2003 | Supérieur | 1 | |
| 15A | 7978190 55566034 Vis Usage: 2002-2003 | Inférieur | 1 | |
| 16 | 9175290 55557331 Vanne électromagnétique | 1 | |
| 17 | 9194051 30581028 Flexible à dépression | 1 | |
| 18 | 9172164 55559426 Tuyau Usage: 2000-2003 | B205E, B205L | 1 | |
| 18 | 9174947 55559428 Tuyau Usage: 1999-2001 | B205R, B235R | 1 | |
| 18 | 55559428 Tuyau Usage: 2002-2002 | B235R, B205R | 1 | |
| 18 | 9174947 55559428 Tuyau Usage: 2003-2003 | B205R | 1 | |
| 18 | 55559428 Tuyau Usage: 2003-2003 | B205R | 1 | |
| 19 | 9182445 55559430 Tuyau Usage: 2000-2003 | B205E, B205L | 1 | |
| 19 | 9182460 55559431 Tuyau Usage: 1999-2002 | B205R, B235R | 1 | |
| 19 | 9182460 55559431 Tuyau Usage: 2003-2003 | B205R | 1 | |
| 27 | 9180597 Raccord | 1 | |
| 28 | 9172487 55558606 Flexible à dépression | 1 | |
| 29 | Boîtier volet Usage: 1999-2000 | ||
| 29 | Boîtier volet Usage: 2001-2003 | ||
| 30 | 7969355 92150772 Collier serrage | 1 | |
| 31 | 7978117 11900355 Vis | 1 | |
| 32 | 7977929 11900451 Ecrou | 1 | |
| 33 | 4876124 Flexible | 1 | |
| 34 | 7970148 92153079 Collier serrage | 1 | |
| 35 | 7970163 92150224 Collier serrage | 1 | |
| 36 | 9483983 55560085 Régulateur de pression Usage: 1999-2002 | B205R, B235R | 1 | |
| 36 | 9483983 55560085 Régulateur de pression Usage: 2003-2003 | B205R | 1 | |
| 36 | 9199811 30583267 Régulateur de pression Usage: 2000-2003 | B205L | 1 | |
| 37 | 9483991 Vis Usage: 1999-2002 | B205R, B235R | 1 | |
| 37 | 9483991 Vis Usage: 2003-2003 | B205R | 1 | |
| 38 | 9542408 Rondelle Usage: 1999-2002 | B205R, B235R | 1 | |
| 38 | 9542408 Rondelle Usage: 2003-2003 | B205R | 1 | |
| 39 | 9542416 Jonc Usage: 1999-2002 | B205R, B235R | 1 | |
| 39 | 9542416 Jonc Usage: 2003-2003 | B205R | 1 |
