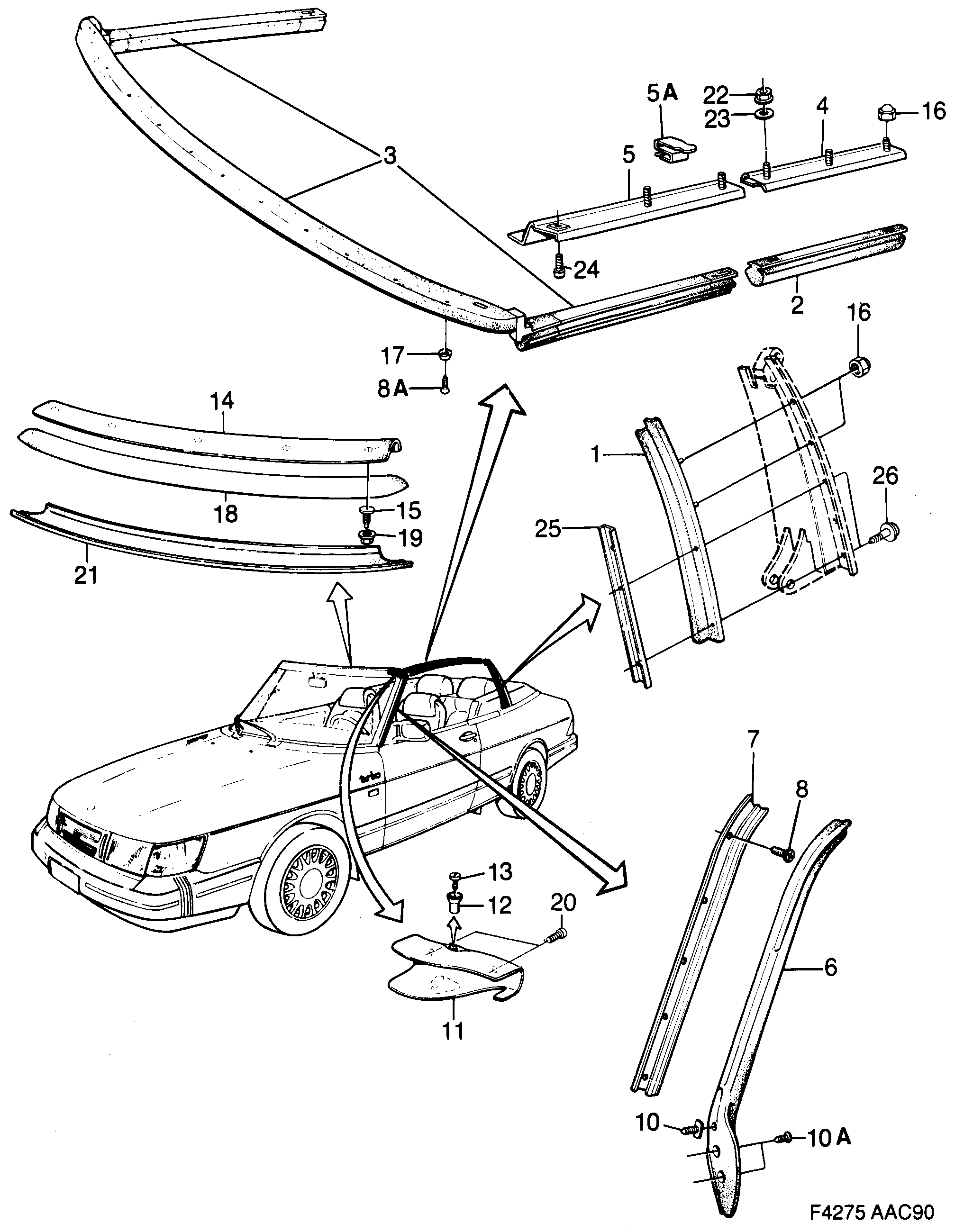

1460: Carrosserie, extérieur - Eléments extérieurs - Autres joints
(1990 - 1993 | CV)
Concerne aussi CV 1994
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 6950216 Joint Usage: -1991 | LH | 1 | |
| 1 | 6950208 4154035 Joint Usage: -1991 | RH | 1 | |
| 1 | 4154043 Joint Usage: 1991- | LH | 1 | |
| 1 | 4154035 Joint Usage: 1991- | RH | 1 | |
| 2 | 6951396 Joint Usage: -1991 | LH | 1 | |
| 2 | 6951388 Joint Usage: -1991 | RH | 1 | |
| 2 | 4154027 Joint Usage: 1991- | LH | 1 | |
| 2 | 4154019 Joint Usage: 1991- | RH | 1 | |
| 3 | 6951370 Joint Usage: -1990 | 1 | |
| 3 | 6953939 Joint Usage: 1990-1991 | 1 | |
| 3 | 4153987 Joint Usage: 1991- | 1 | |
| 4 | 6951362 Support Usage: LH | 1 | |
| 4 | 6951354 Support Usage: RH | 1 | |
| 5 | 4153037 Support Usage: LH | 1 | |
| 5 | 4153029 Support Usage: RH | 1 | |
| 5A | 6999999 Clip Usage: 1990- | 2 | |
| 6 | 6952659 Lisse étanchéité Usage: -1990 | LH | 1 | |
| 6 | 6952642 Lisse étanchéité Usage: -1990 | RH | 1 | |
| 6 | 6953954 Lisse étanchéité Usage: 1990-1991 | LH | 1 | |
| 6 | 6953947 Lisse étanchéité Usage: 1990-1991 | RH | 1 | |
| 6 | 4154001 Lisse étanchéité Usage: 1991- | LH | 1 | |
| 6 | 4153995 Lisse étanchéité Usage: 1991- | RH | 1 | |
| 7 | 6952907 Support Usage: LH | 1 | |
| 7 | 6952899 Support Usage: RH | 1 | |
| 8 | 6997894 Vis | 8 | |
| 8A | 8408882 Vis | 11 | |
| 8A | 7398993 8840068 Vis Usage: -1990 | ALT TO 8408882 7913833 | 11 | |
| 8A | 7965353 Vis Usage: 1990- | 11 | |
| 10 | 6911614 Clip | 2 | |
| 10A | 6951784 Agrafe en plastique | 4 | |
| 11 | 9161415 Armature Usage: Arrière. | LH | 1 | |
| 11 | 9161423 Armature Usage: Arrière. | RH | 1 | |
| 12 | 9824905 Bague | 2 | |
| 13 | 7972219 Vis | 2 | |
| 14 | 9881913 Profile | 1 | |
| 15 | 9881921 Vis | 5 | |
| 16 | 8594749 Ecrou | 8 | |
| 17 | 7913833 Rondelle | 11 | |
| 18 | 6935142 Protection | 1 | |
| 19 | 7973365 92150136 Ecrou | 5 | |
| 20 | 7972201 Vis | 4 | |
| 21 | Garniture habitacle | ||
| 22 | 7973365 92150136 Ecrou | 8 | |
| 23 | 7916489 92153032 Rondelle | 10 | |
| 24 | 7975758 Vis | 2 | |
| 25 | 4153417 Bande arrêtoir Usage: 1991-1993 | 2 | |
| 26 | 9571118 Vis Usage: 1991-1993 | 4 |
