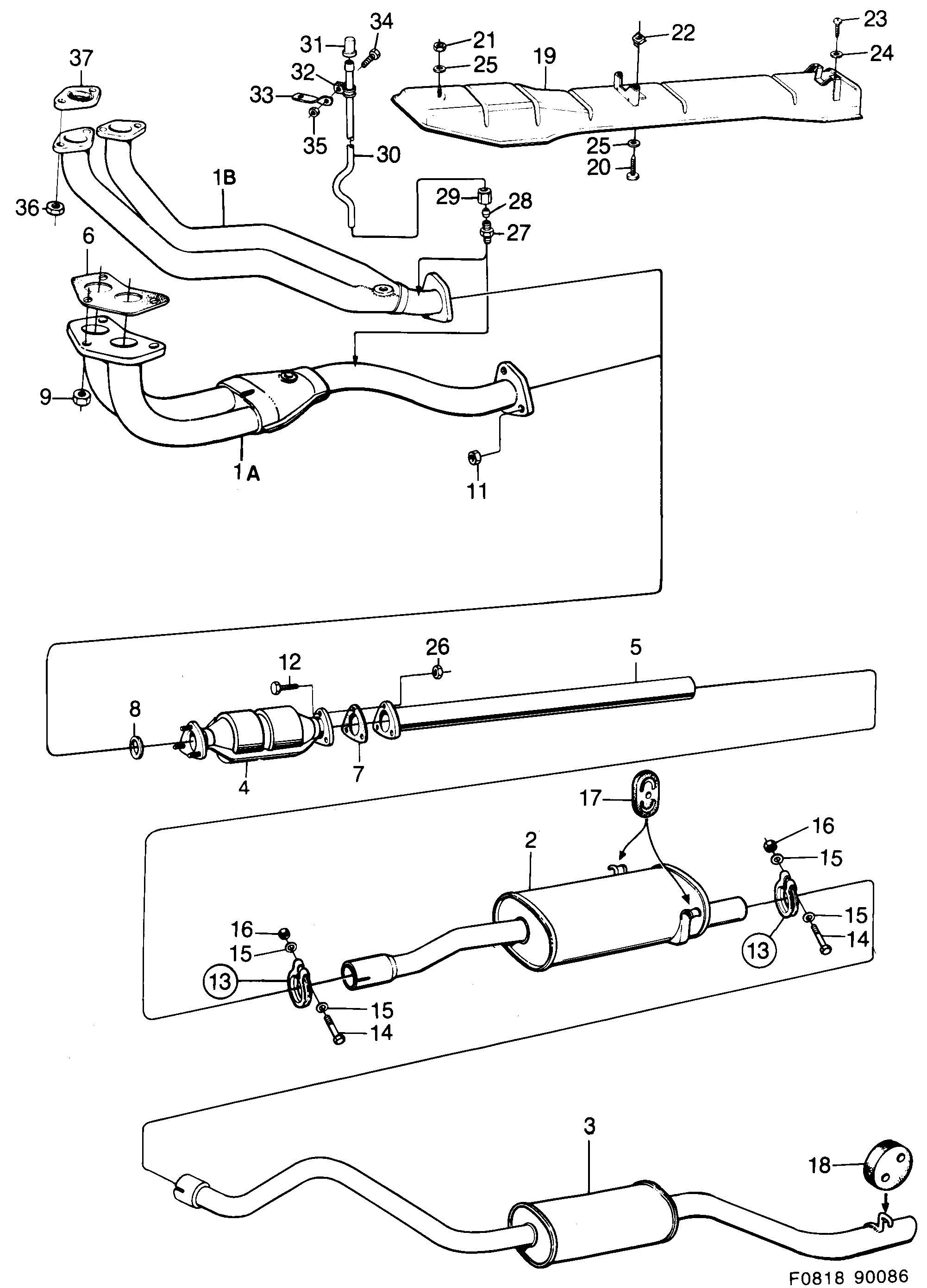

1600: Moteur - Système d'admission et d'échappement - Système d'échappement - Avec catalyseur
(1986 - 1989)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1A | 7539117 5466933 Tuyau d'échappement Usage: -1988 | 1 | |
| 1B | 8980278 Tuyau d'échappement Usage: 1988-1989 | 1 | |
| 1B | 8980278 Tuyau d'échappement Usage: 1989- | 1 | |
| 1A | 7539117 5466933 Tuyau d'échappement Usage: 1989- | 1 | |
| 1A | 8976763 Tuyau d'échappement Usage: -1988 | 1 | |
| 1B | 8980443 Tuyau d'échappement Usage: 1988-1989 | 1 | |
| 1B | 8980443 Tuyau d'échappement Usage: 1989- | 1 | |
| 1A | 8976763 Tuyau d'échappement Usage: 1989- | 1 | |
| 2 | 5466198 Silencieux Usage: (8822272) | 1 | |
| 3 | 5466180 Silencieux Usage: (8822181) | 1 | |
| 4 | 9332461 Convertisseur catalytique | 1 | |
| 4 | 4440061 Convertisseur catalytique | 1 | |
| 5 | 9333840 5466792 Tuyau d'échappement | 1 | |
| 6 | 7528136 Joint Usage: -1988 | 1 | |
| 6 | 7528136 Joint Usage: 1989- | 1 | |
| 7 | 8387052 4024089 Joint | 1 | |
| 8 | 8328726 Anneau | 1 | |
| 9 | 7967870 7979503 Ecrou Usage: -1988 | 3 | |
| 9 | 7979503 Ecrou Usage: 1989- | 3 | |
| 11 | 8074106 Ecrou Usage: 1986-1987 | 3 | |
| 11 | 8151235 Ecrou Usage: 1988-1989 | 3 | |
| 12 | 7967789 Vis | 3 | |
| 13 | 8386450 Collier serrage | 1 | |
| 14 | 8084014 32000289 Vis | 1 | |
| 15 | 9319047 Rondelle | 2 | |
| 16 | 8073942 Ecrou Usage: 1986-1987 | 1 | |
| 16 | 8151060 Ecrou Usage: 1988-1989 | 1 | |
| 17 | 9328105 Montage en caoutchouc | 2 | |
| 18 | 9365404 Montage en caoutchouc | 1 | |
| 19 | 9349804 7923014 Pare-chaleur | 1 | |
| 20 | 9368218 Vis | 2 | |
| 21 | 8074106 Ecrou Usage: 1986-1987 | 1 | |
| 21 | 8151235 Ecrou Usage: 1988-1989 | 1 | |
| 22 | 7970429 Ecrou de benne | 2 | |
| 23 | 7922503 Vis | 2 | |
| 24 | 7910540 Rondelle | 2 | |
| 25 | 7910557 Rondelle | 3 | |
| 26 | 7974264 30509159 Ecrou | 3 | |
| 27 | 8131963 Raccord Usage: 1988-1989 | 1 | |
| 28 | 8132219 Bague sûreté Usage: 1988-1989 | 1 | |
| 29 | 8145534 Ecrou accouplement Usage: 1988-1989 | 1 | |
| 30 | 8976789 Tuyau Usage: 1988-1988 | 1 | |
| 30 | 8980468 Tuyau Usage: 1988-1989 | 1 | |
| 30 | 8980468 Tuyau Usage: 1989- | 1 | |
| 30 | 8976789 Tuyau Usage: 1989- | 1 | |
| 31 | 8976680 Capot Usage: 1988-1989 | 1 | |
| 32 | 7969355 92150772 Collier serrage Usage: 1988-1989 | 1 | |
| 33 | 8976797 Fixation Usage: 1988-1989 | 1 | |
| 34 | 7969223 Vis Usage: 1988-1989 | 1 | |
| 35 | 7971658 11900428 Ecrou Usage: 1988-1989 | 1 | |
| 36 | 7979503 Ecrou Usage: 1988-1988 | 4 | |
| 36 | 7978620 11900437 Ecrou Usage: 1989-1989 | 4 | |
| 37 | 8980328 Joint Usage: 1988-1988 | 2 | |
| 37 | 8387672 8980328 Joint Usage: 1989-1989 | 2 | |
8818577 Kit montage | X | ||
8819690 Jeu silencieux | X | ||
8819229 Jeu convertisseur catalytique Usage: 1986-1986 | B201C, I | X | ||
8819237 Jeu convertisseur catalytique Usage: 1986-1986 | B201C, I | X | ||
9321555 Kit montage | X |
