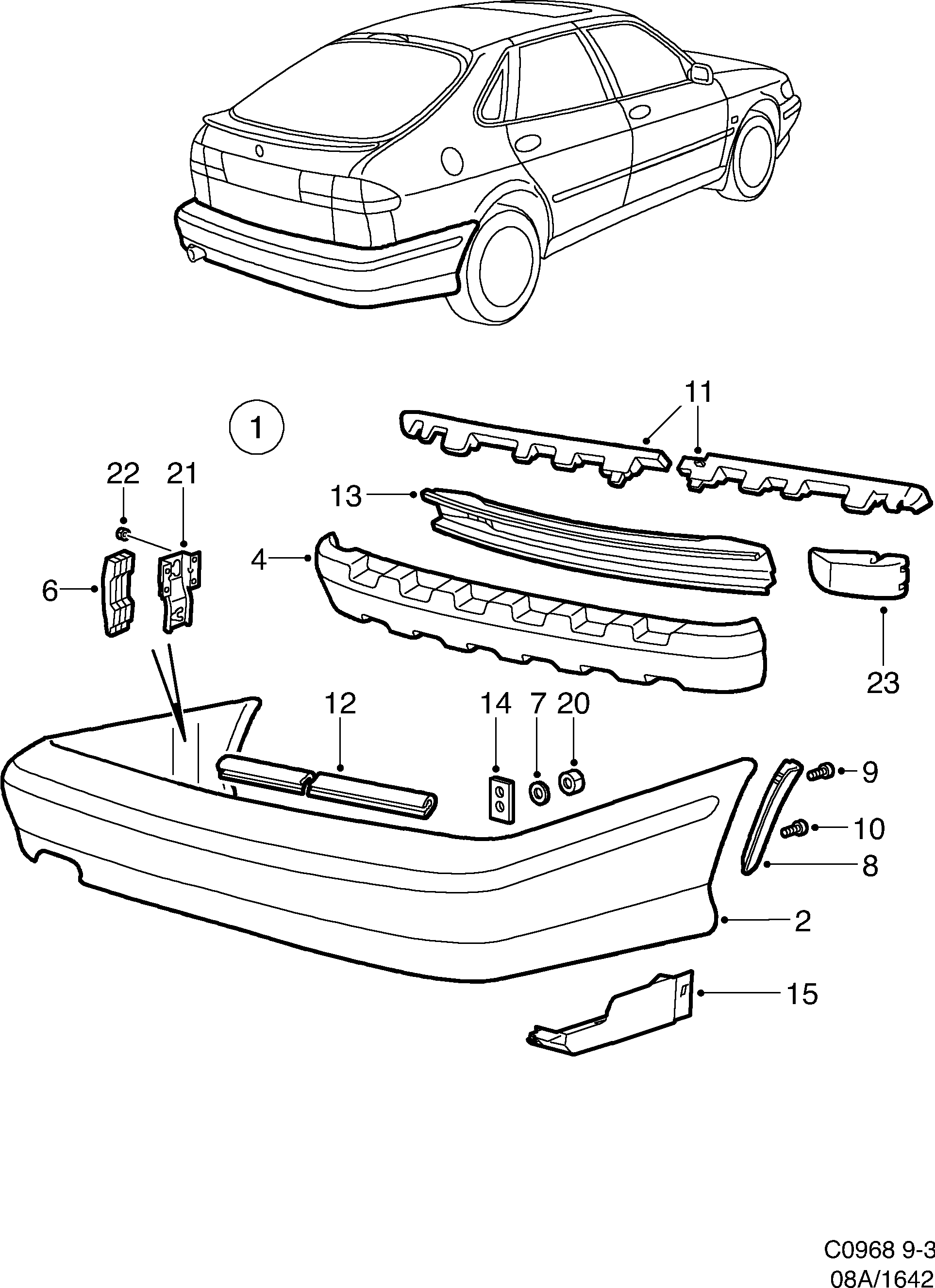

1642: Carrosserie, extérieur - Pare-chocs - Pare-chocs, arrière - Standard
(2001 - 2003)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 5400239 5332952 Pare-chocs Usage: -2001 | Modèle pouvant être peint | 1 | |
| 1 | 5332952 Pare-chocs Usage: 2001- | Modèle pouvant être peint | 1 | |
| 2 | 5400247 Gaine Usage: Modèle pouvant être peint | 1 | |
| 4 | 4676508 Partie moussant | 1 | |
| 6 | 4675278 Retenue Usage: LH | 1 | |
| 6 | 4675286 Retenue Usage: RH | 1 | |
| 7 | 6992325 9234055 Joint | 4 | |
| 8 | 5289012 Couverture Usage: LH | 1 | |
| 8 | 5289020 Couverture Usage: RH | 1 | |
| 9 | 4481834 Rivet pop | 6 | |
| 10 | 7968084 Vis | 2 | |
| 11 | 4914958 Support Usage: LH | 1 | |
| 11 | 4914966 Support Usage: RH | 1 | |
| 12 | 4959763 Lisse | 1 | |
| 13 | 4373510 Rail pare-chocs | 1 | |
| 14 | 4399721 Cale | 2 | |
| 15 | 5332630 Pare-boue Usage: 2001- | RH | 1 | |
| 20 | 7967979 Ecrou | 2 | |
| 21 | 4398632 Support Usage: LH | 1 | |
| 21 | 4787040 5332689 Retenue Usage: -2001 | RH | 1 | |
| 21 | 5332689 Retenue Usage: 2001- | cpl avec bloc mousse | RH | 1 | |
| 22 | 7977952 11900452 Ecrou hexagonal | 6 | |
| 23 | 4916854 Support | 2 |
