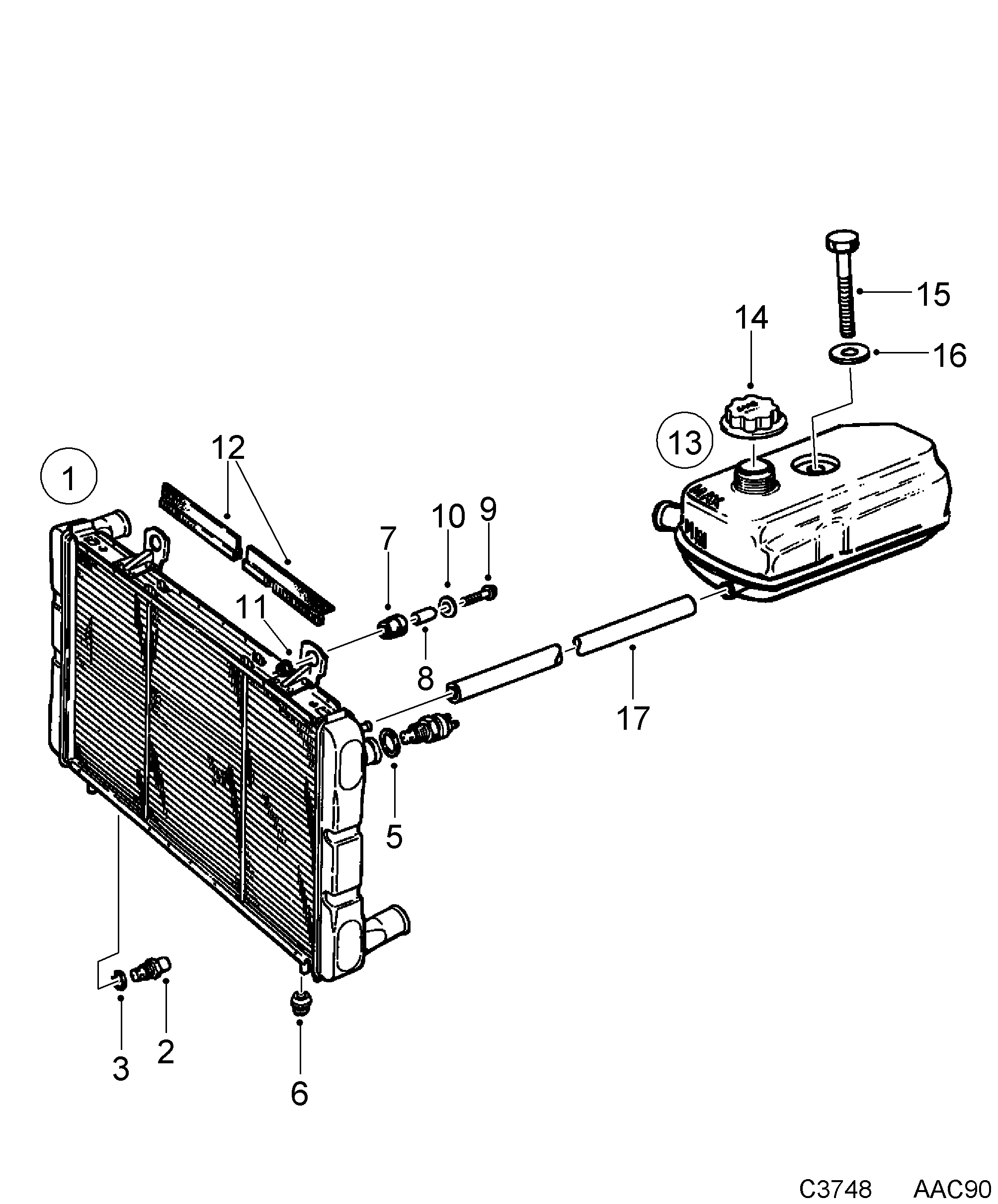

1700: Moteur - Système de refroidissement - Radiateur, etc
(1990 - 1993)
Concerne aussi CV 1994
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7549280 Radiateur | 1 | |
| 1 | 7549298 Radiateur Usage: TURBO | 1 | |
| 2 | 7549389 Robinet vidange | 1 | |
| 3 | 7975725 Joint torique | 1 | |
| 4 | 9526518 4086708 Thermocontact Usage: 1990-1991 | 1 | |
| 4 | 4086708 Thermocontact Usage: 1992-1993 | 1 | |
| 5 | 8330268 Joint | 1 | |
| 6 | 8339657 Bague caoutchouc | 2 | |
| 7 | 7513724 Bague caoutchouc | 2 | |
| 8 | 7513716 Entretoise | 2 | |
| 9 | 7975436 Vis | 2 | |
| 10 | 7975469 7987506 Rondelle | 2 | |
| 11 | 7971658 11900428 Ecrou | 2 | |
| 12 | 4120069 Lisse étanchéité | 2 | |
| 13 | 7549876 Vase expansion | 1 | |
| 14 | 7577323 4395570 Couvercle | 1 | |
| 15 | 8084055 Vis | 1 | |
| 16 | 8371650 Rondelle | 1 | |
| 17 | Flexible Usage: B201 | ||
| 17 | Flexible Usage: B202, B212 |
