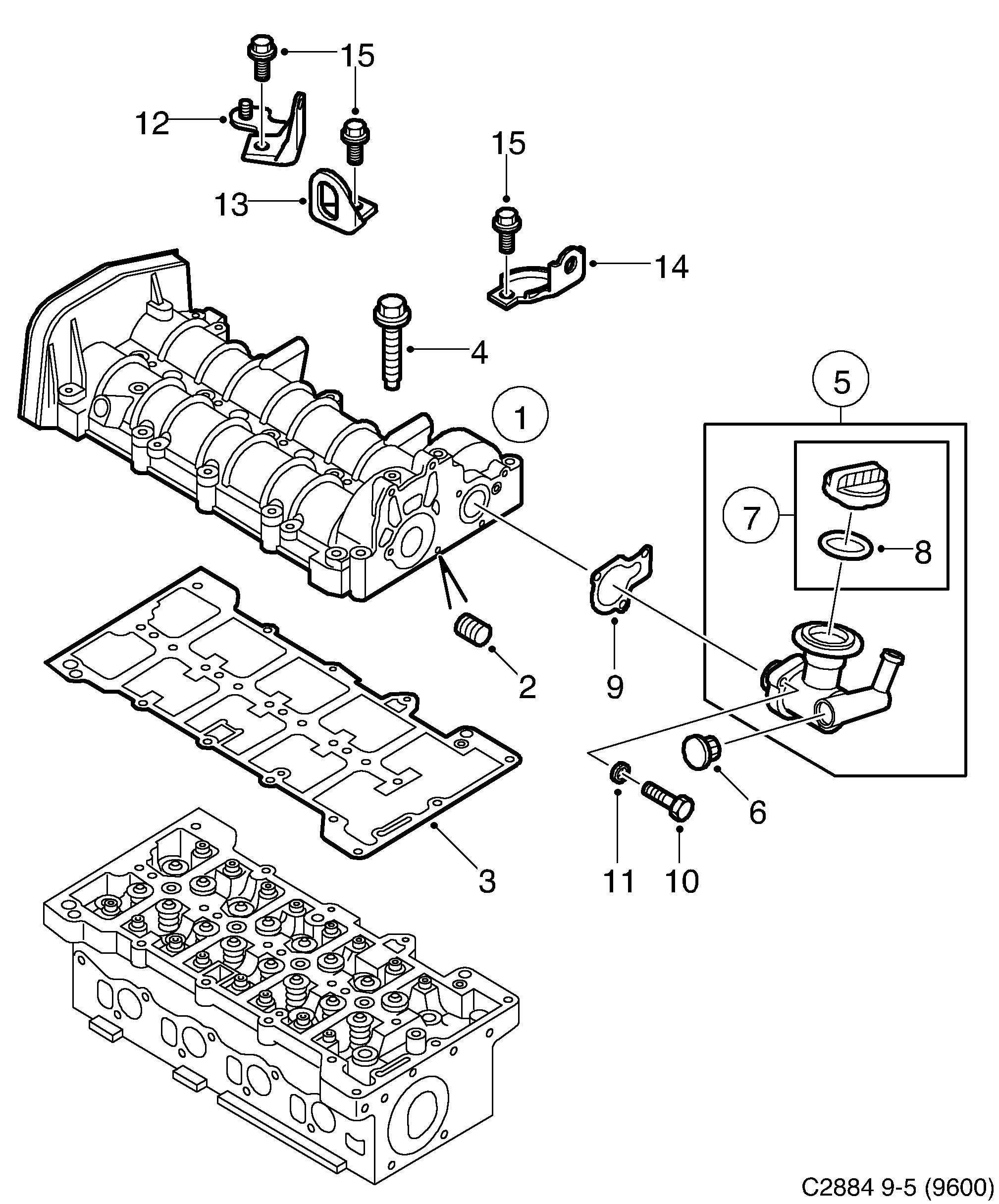

185: Moteur - Corps de moteur - Cache-soupapes
(2006 - 2010 | 4-CYL,DIESEL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 93184577 Carter Usage: 2006-2008 | 1 | |
| 1 | 55565886 Carter, arbre à cames Usage: 2008- | 1 | |
| 2 | 93178483 Rondelle étanchéité | 4 | |
| 3 | 93178481 Joint Usage: -2008 | 1 | |
| 3 | 55566654 Joint Usage: 2008- | 1 | |
| 4 | 93178486 Vis Usage: M8X35 | 5 | |
| 4 | 93179142 Vis Usage: M8X71 | 5 | |
| 4 | 93178488 Vis Usage: M8X125 | 1 | |
| 5 | 93183234 Carter Usage: (93 179 103) | 1 | |
| 6 | 93179105 Joint | 1 | |
| 7 | 93179106 Bouchon de remplissage d'huile | 1 | |
| 8 | 93179107 Joint | 1 | |
| 9 | 93179108 Joint | 1 | |
| 10 | 93179110 Vis | 3 | |
| 11 | 93178882 Rondelle | 3 | |
| 12 | 55195254 Oeillet levage | 1 | |
| 13 | 55187743 Oeillet levage | 1 | |
| 14 | 55198472 Oeillet levage | 1 | |
| 15 | 12855066 Vis | 3 |
