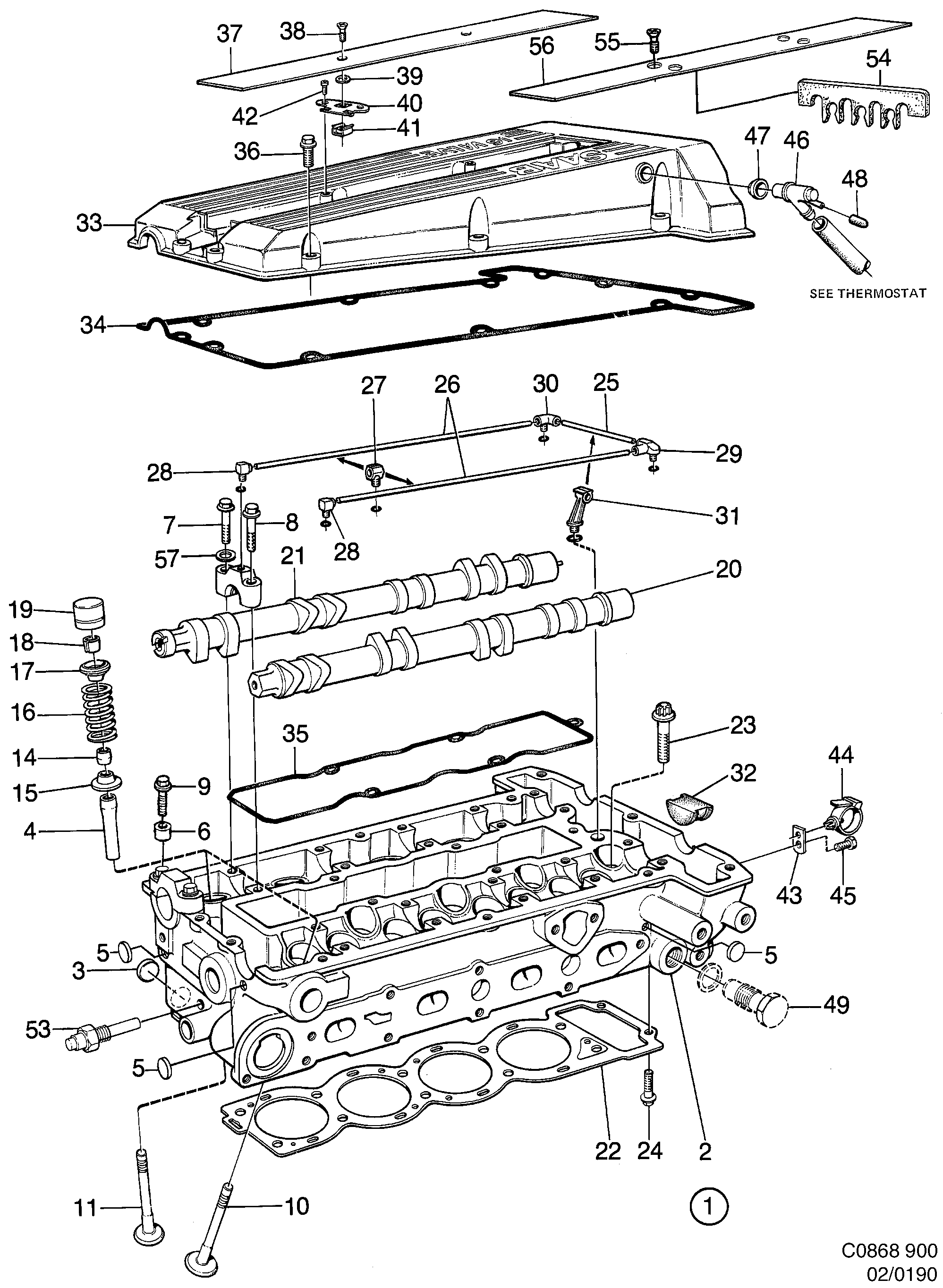

| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7561988 Culasse Usage: 1986-1986 | Pour TURBO avec catalyseur. Egalement disponible en unité de rechange. | 1 | |
| 1 | 7561996 Culasse Usage: 1988-1988 | Egalement disponible en unité de rechange. | 1 | |
| 1 | 7586134 Culasse Usage: 1988-1988 | Egalement disponible en unité de rechange. | 1 | |
| 2 | 7523996 Culasse Usage: 1988-1988 | 1 | |
| 2 | 7586142 9107053 Culasse Usage: 1988-1988 | 1 | |
| 3 | 8123218 Rondelle étanchéité Usage: 1986-1987 | 2 | |
| 3 | 7588320 Rondelle étanchéité Usage: 1988-1989 | 2 | |
| 4 | 7560154 Guide soupape | 16 | |
| 4 | 7569734 Guide soupape Usage: Taille au dessus | 16 | |
| 5 | 8123143 4940466 Tampon Usage: 1988-1988 | 3 | |
| 6 | 7504566 Douille guide | 2 | |
| 7 | 8125213 Vis | 12 | |
| 8 | 9358870 Vis Usage: 1988-1988 | 8 | |
| 8 | 7585847 55559477 Vis Usage: 1988-1988 | 8 | |
| 9 | 7504178 92151833 Vis | 2 | |
| 10 | 7562002 7484801 Soupape admission Usage: Admission. | 8 | |
| 11 | 7500085 9165598 Soupape d'échappement Usage: Echappement. | 8 | |
| 14 | 7500713 Joint | 16 | |
| 15 | 7505134 Rondelle | 16 | |
| 16 | 9358391 9129651 Ressort | 16 | |
| 17 | 7501349 Rondelle | 16 | |
| 18 | 7515547 Taquet | 32 | |
| 19 | 9357716 55557388 Poussoir soupape | 16 | |
| 20 | 7518913 Arbre cames Usage: 1986-1986 | Pour TURBO avec catalyseur. Admission. | 1 | |
| 20 | 7560808 Arbre cames Usage: TURBO | Admission. | 1 | |
| 20 | 7561467 Arbre cames Usage: I | Admission. | 1 | |
| 21 | 7560964 Arbre cames Usage: Echappement. | 1 | |
| 22 | 7516529 9181348 Joint Usage: 1986-1986 | 1 | |
| 22 | 7561301 9181348 Joint culasse Usage: 1986-1986 | TURBO | 1 | |
| 22 | 7561301 9181348 Joint culasse Usage: 1987-1989 | 1 | |
| 23 | 7518335 5955794 Vis | 10 | |
| 24 | 8125189 Vis | 2 | |
| 25 | 7508468 Tuyau Usage: 1988-1988 | 1 | |
| 26 | 7508476 Tuyau Usage: 1988-1988 | 2 | |
| 27 | 7518434 7480429 Raccord Usage: 1986-1987 | 6 | |
| 27 | 7480429 Raccord Usage: 1988-1989 | 6 | |
| 28 | 7518442 7480437 Raccord Usage: 1986-1987 | 2 | |
| 28 | 7480437 Raccord Usage: 1988-1989 | 2 | |
| 29 | 7518459 7480445 Raccord Usage: 1986-1987 | 1 | |
| 29 | 7480445 Raccord Usage: 1988-1989 | 1 | |
| 30 | 7518467 Raccord Usage: 1986-1987 | 1 | |
| 30 | 7480452 Raccord Usage: 1988-1989 | 1 | |
| 31 | 7519523 7480460 Raccord Usage: 1986-1987 | 1 | |
| 31 | 7480460 Raccord Usage: 1988-1989 | 1 | |
| 32 | 7500069 Tampon | 3 | |
| 33 | 7522303 8822041 Cache-soupapes Usage: 1986-1986 | 1 | |
| 33 | 7523939 7586837 Cache-soupapes Usage: 1988-1988 | 1 | |
| 33 | 7586308 5959416 Cache-soupapes Usage: 1988-1988 | 1 | |
| 33 | 9115973 5959416 Cache-soupapes Usage: 1989-1989 | 1 | |
| 33 | 9116062 5959416 Cache-soupapes Usage: 1989-1989 | 1 | |
| 34 | 7520380 Joint Usage: 1986-1986 | 1 | |
| 34 | 7523954 55555635 Joint Usage: 1986-1987 | 1 | |
| 34 | 7588056 55555635 Joint Usage: 1988-1989 | 1 | |
| 35 | 9359647 Joint Usage: 1986-1986 | 1 | |
| 35 | 7523962 55555634 Joint Usage: 1986-1986 | 1 | |
| 36 | 7560931 Vis | 16 | |
| 37 | 7503709 Couvercle Usage: 1988-1988 | 1 | |
| 38 | 7522790 Vis Usage: 1988-1988 | 2 | |
| 39 | 7561673 Jonc Usage: 1988-1988 | 2 | |
| 40 | 7503469 Fixation Usage: 1988-1988 | 2 | |
| 41 | 7970403 Ecrou de benne Usage: 1988-1988 | 2 | |
| 42 | 7520240 Vis Usage: 1988-1988 | 4 | |
| 43 | 7511975 Console | 2 | |
| 44 | 7512015 Ruban serrage | 2 | |
| 45 | 8082919 8082935 Vis | 2 | |
| 46 | 7517048 Raccord | 1 | |
| 47 | 8360257 9549593 Bague Usage: 1986-1986 | 1 | |
| 47 | 7515190 9549593 Bague Usage: 1987-1989 | 1 | |
| 48 | 8335614 Bouchon | 1 | |
| 49 | Tendeur chaîne | ||
| 53 | 8800914 30539720 Capteur | 1 | |
| 54 | Retenue | ||
| 55 | 7586837 Vis Usage: 1988-1988 | 4 | |
| 56 | 7585532 Couvercle Usage: 1988-1988 | 1 | |
| 57 | 9114885 Rondelle étanchéité Usage: 1988-1989 | 16 | |
8817512 Kit joints Usage: 1986-1986 | X | ||
8818254 8822041 Kit joints Usage: 1986-1986 | X | ||
8818007 Pochette Rodage Usage: 1986-1986 | X | ||
8819823 Pochette Rodage Usage: 1988-1988 | X | ||
8819823 Pochette Rodage Usage: 1988-1988 | X | ||
8819831 Pochette Rodage Usage: 1988-1988 | X |
