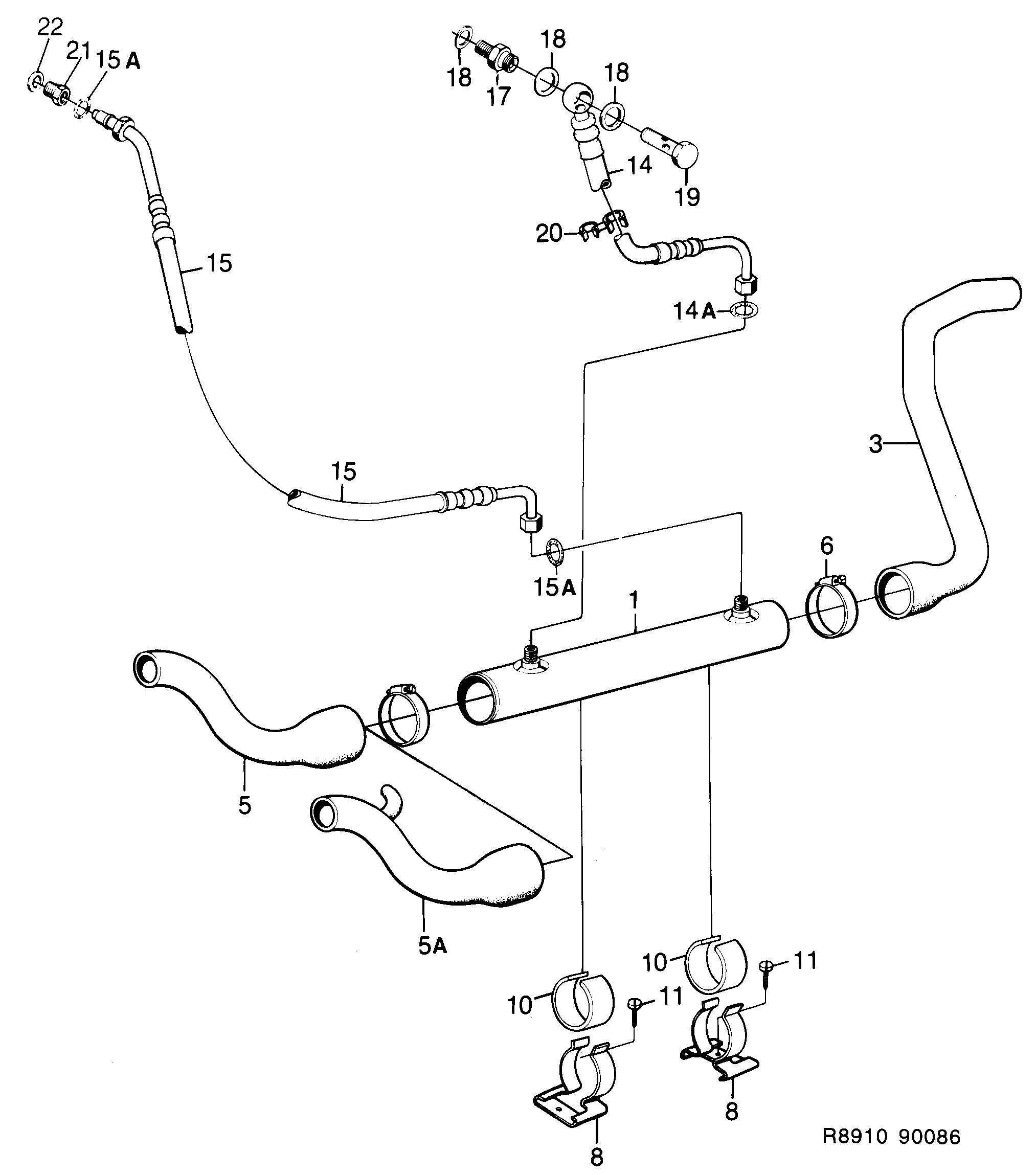

1930: Moteur - Système de refroidissement - Refroidisseur d'huile à eau - Boîte de vitesses automatique
(1986 - 1989)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9362997 Radiateur huile Usage: -1987 | 1 | |
| 1 | 7547730 Radiateur huile Usage: 1987- | 1 | |
| 3 | 9363615 Flexible | 1 | |
| 5 | 7546393 Flexible Usage: 1986-1987 | 1 | |
| 5 | 7546393 Flexible Usage: 1988-1988 | C, I | 1 | |
| 5 | 7548811 Flexible Usage: 1988- | C, I | 1 | |
| 5A | 7548829 4121802 Flexible Usage: 1988-1988 | TURBO | 1 | |
| 6 | 7970130 92153077 Collier serrage | 2 | |
| 8 | 7540917 Support | 2 | |
| 10 | 9301383 Valve | 2 | |
| 11 | 7922891 Vis | 2 | |
| 14 | 7546385 Flexible hydraulique Usage: -1987 | 1 | |
| 14 | 7547813 Flexible hydraulique Usage: 1987- | 1 | |
| 14A | 7977580 Joint torique Usage: 1987- | 2 | |
| 15 | 7543770 Flexible hydraulique Usage: -1986 | 1 | |
| 15 | 7547292 Flexible hydraulique Usage: 1986-1987 | 1 | |
| 15 | 7547805 Flexible hydraulique Usage: 1987- | 1 | |
| 15A | 7977580 Joint torique Usage: 1987- | 1 | |
| 17 | 7540032 Raccord | 1 | |
| 18 | 8326712 4161162 Joint Usage: -1988 | 3 | |
| 18 | 8981961 4161162 Joint Usage: 1988- | 3 | |
| 19 | 9301532 12773569 Vis banjo | 1 | |
| 20 | 8986440 30507607 Collier serrage Usage: -1987 | 1 | |
| 20 | 7559768 92152223 Clip Usage: 1987- | 1 | |
| 21 | 7546971 Raccord Usage: 1987- | 1 | |
| 22 | 9301508 7599426 Joint Usage: 1987-1988 | 1 | |
| 22 | 7599426 Joint Usage: 1989-1989 | 1 |
