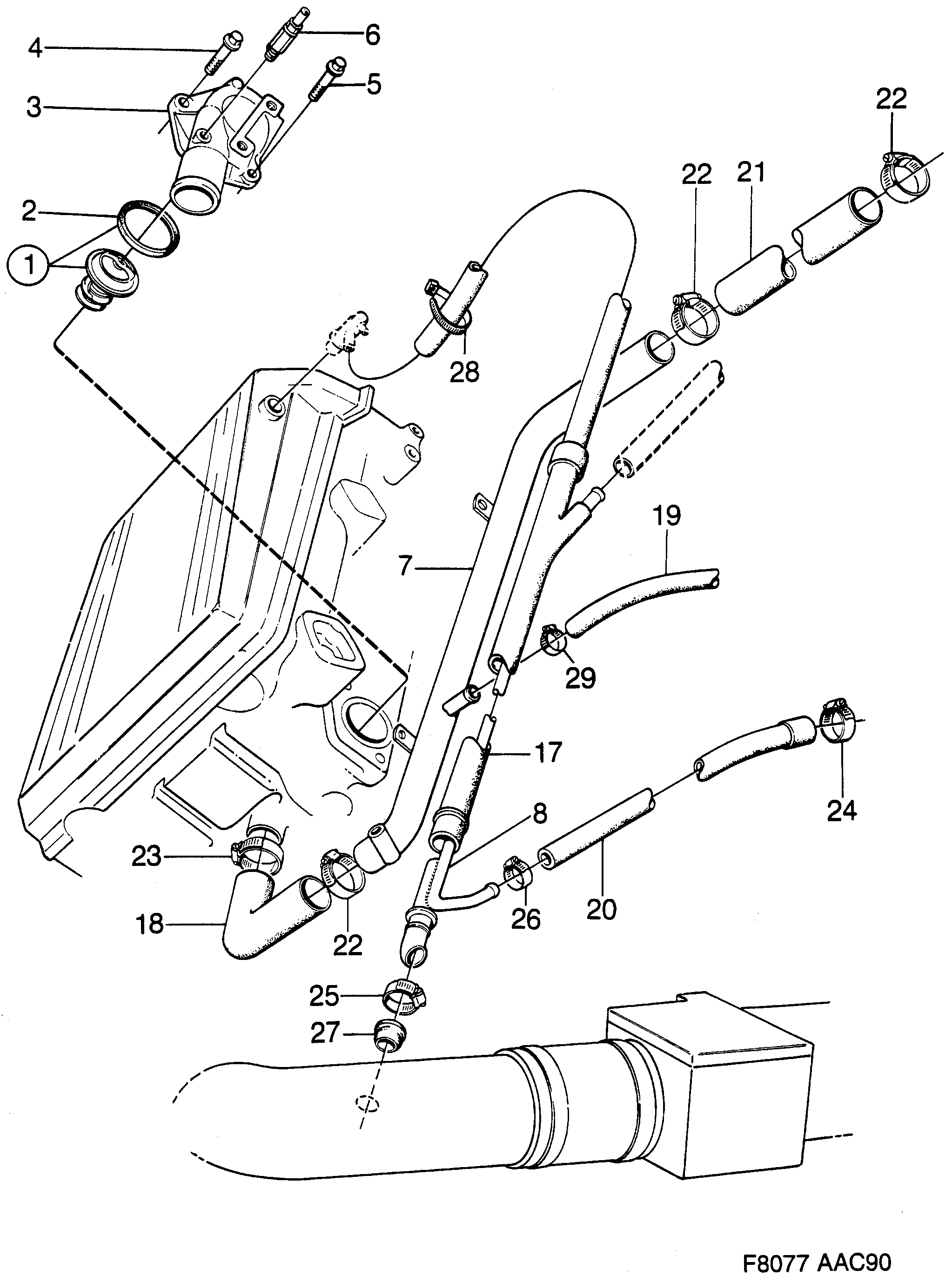

1970: Moteur - Système de refroidissement - Thermostat, etc
(1990 - 1993 | B212)
Concerne aussi CV 1994
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 8817298 30577561 Jeu thermostat Usage: 89°C | 1 | |
| 1 | 8817538 Jeu thermostat Usage: 82°C | 1 | |
| 2 | 8352692 9176165 Joint | 1 | |
| 3 | 9117516 30520465 Couvercle | 1 | |
| 4 | 8125189 Vis Usage: I | 2 | |
| 4 | 8125189 Vis Usage: TURBO | 1 | |
| 5 | 8125197 Vis Usage: 1990-1990 | TURBO | 1 | |
| 5 | 8125189 Vis Usage: 1991-1993 | TURBO | 1 | |
| 6 | Soupape | 1 | |
| 7 | 7480759 Conduit eau | 1 | |
| 8 | 8859548 Tuyau Usage: TURBO | 1 | |
| 17 | 7517014 Flexible Usage: TURBO | 1 | |
| 17 | 7523913 Flexible Usage: I | 1 | |
| 18 | 7504624 Flexible | 1 | |
| 19 | 7482953 Flexible | 1 | |
| 20 | 7519531 Flexible Usage: TURBO | 1 | |
| 21 | Flexible | 1 | |
| 22 | Collier serrage | 3 | |
| 23 | 7970098 Collier serrage | 1 | |
| 24 | 7970056 90572589 Collier serrage Usage: TURBO | 1 | |
| 25 | 7963523 7970064 Collier serrage Usage: TURBO | 1 | |
| 26 | 7970049 Collier serrage Usage: TURBO | 1 | |
| 27 | 7517147 Bague Usage: TURBO | 1 | |
| 28 | 1800259 Ruban serrage Usage: 1990-1990 | 1 | |
| 28 | 8153611 Ruban serrage Usage: 1991-1993 | 1 | |
| 29 | 7970056 90572589 Collier serrage Usage: TURBO | 2 | |
| 29 | 7963515 90572589 Collier serrage Usage: B212 | 2 |
