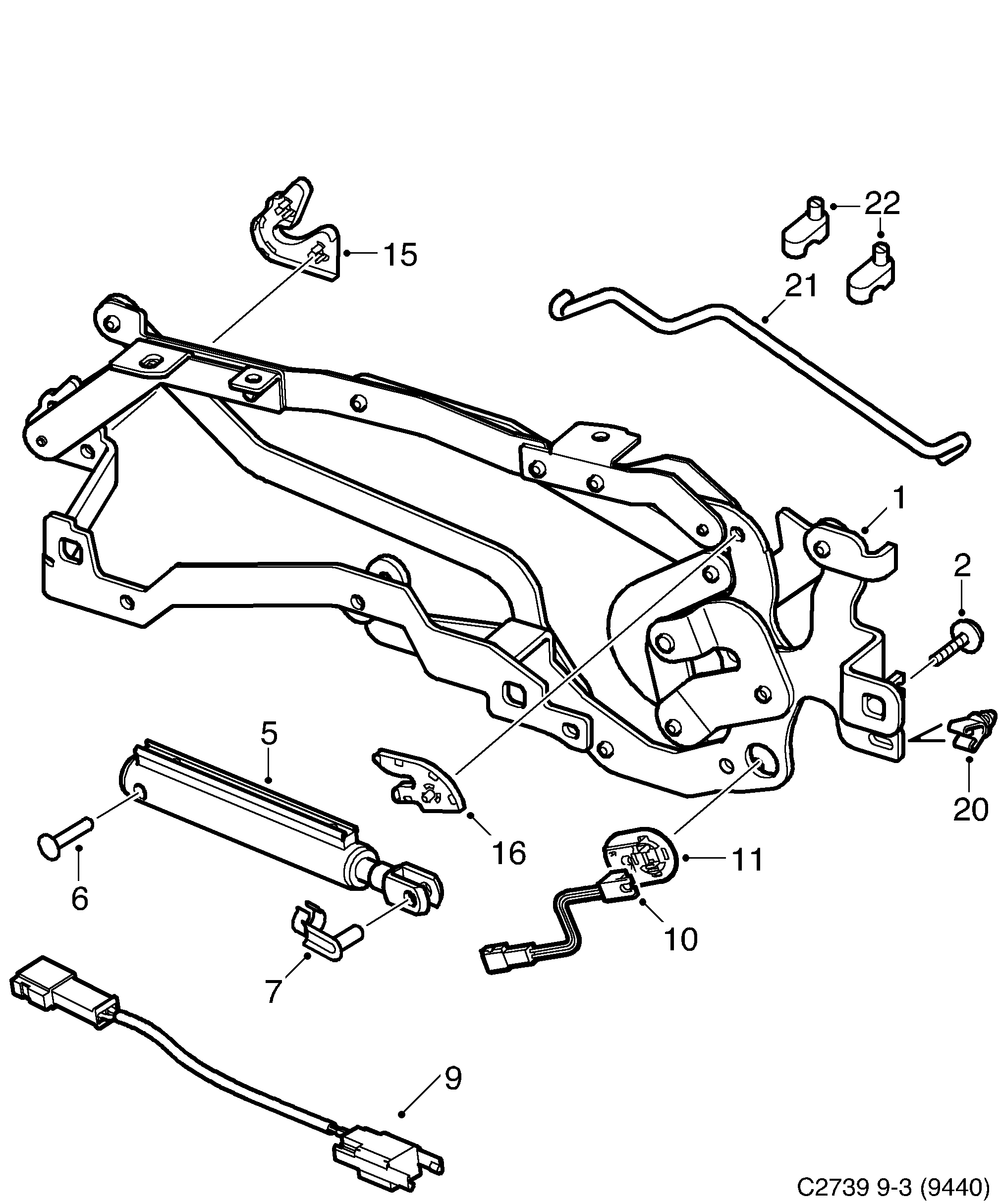

205: Carrosserie, extérieur - Corps de carrosserie - Couvre capote - 1ère partie
(2004 - 2011 | CV)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 93166840 Charnière Usage: 2004-2006 | Jeu | LH, RH | 1 | |
| 1 | 12833560 Charnière Usage: 2007-2011 | LH | 1 | |
| 1 | 12833561 Charnière Usage: 2007-2011 | RH | 1 | |
| 2 | 11900329 Vis | X | |
| 5 | 12833501 Vérin hydraulique Usage: LH | 1 | |
| 5 | 12833502 Vérin hydraulique Usage: RH | 1 | |
| 6 | 12833580 Boulon palier | 2 | |
| 7 | 12833581 Boulon palier | 1 | |
| 9 | 12833507 Elément sensible Usage: Couvercle de capote relevé | RH | 1 | |
| 10 | 12833637 12772594 Elément sensible Usage: 2004-2005 | Couvercle de capote bas | 2 | |
| 10 | 12772594 Elément sensible Usage: 2006-2011 | Compartiment de capote | 1 | |
| 11 | 12760319 12772593 Support Usage: 2004-2005 | 2 | |
| 11 | 12772593 Fixation Usage: 2006-2011 | 2 | |
| 15 | 12833564 Capot recouvrement | 1 | |
| 16 | 12833565 Capot recouvrement | 1 | |
| 20 | 12833898 Clip | 1 | |
| 21 | 12833196 Tige-poussoir Usage: LH | 1 | |
| 21 | 12833352 Tige-poussoir Usage: RH | 1 | |
| 22 | 12833374 Clip | 2 |
