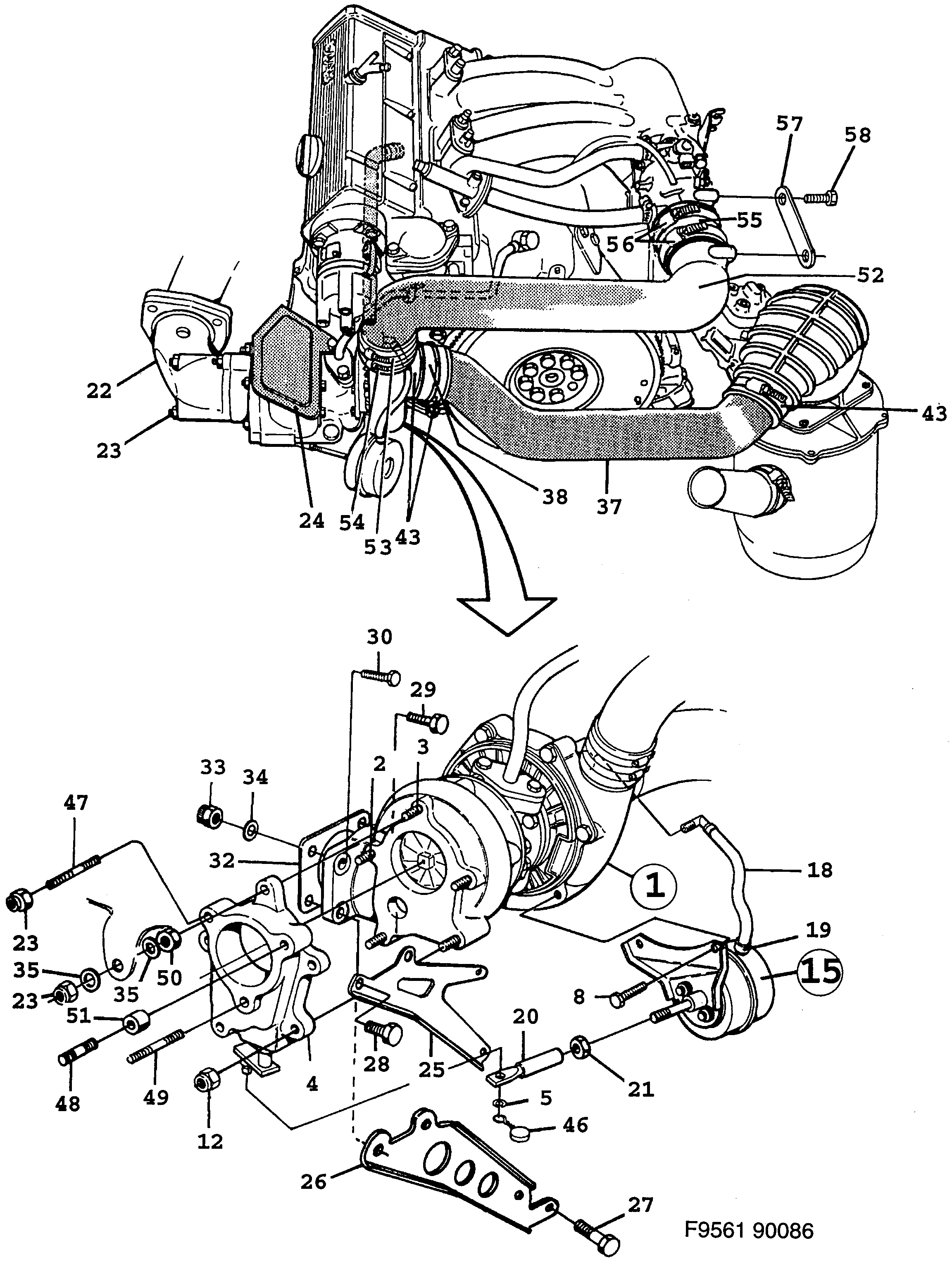

2110: Moteur - Système de suralimentation - Turbocompresseur
(1986 - 1989 | TURBO)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7524200 Turbocompresseur Usage: 1986-1987 | Egalement disponible en unité de rechange. | 1 | |
| 1 | 7567589 Turbocompresseur Usage: 1988-1989 | Egalement disponible en unité de rechange. | 1 | |
| 2 | 7565658 Goujon | 4 | |
| 3 | 7565716 Goujon | 1 | |
| 4 | 9356304 Boîtier volet | 1 | |
| 5 | 9350505 55558372 Jonc | 1 | |
| 8 | 9350471 Vis | 6 | |
| 12 | 7519432 92152032 Ecrou | 4 | |
| 15 | 9356312 Régulateur de pression | 1 | |
| 18 | 9350372 Flexible | 1 | |
| 19 | 9350380 Collier serrage | 2 | |
| 20 | 9356338 Pièce extrémité | 1 | |
| 21 | 9350570 Bague de presse | 1 | |
| 22 | 7517378 Raccord d'échappement | 1 | |
| 23 | 7519432 92152032 Ecrou | 4 | |
| 24 | 9314048 Tôle isolante | 1 | |
| 25 | 7513674 Tirant | 1 | |
| 26 | 7513682 Tirant | 1 | |
| 27 | 8083933 Vis Usage: 1986-1988 | 2 | |
| 27 | 8082976 8083933 Vis Usage: 1989-1989 | 2 | |
| 27 | 8083941 Vis | 2 | |
| 28 | 8084147 7979156 Vis Usage: 1986-1988 | 2 | |
| 28 | 7979156 Vis Usage: 1989-1989 | 2 | |
| 29 | 8084154 Vis Usage: 1986-1988 | 1 | |
| 29 | 8148769 Vis Usage: 1989-1989 | 1 | |
| 30 | 8084139 7979156 Vis Usage: 1986-1988 | 1 | |
| 30 | 8148744 7978794 Vis Usage: 1989-1989 | 1 | |
| 32 | 8366262 Joint | 1 | |
| 33 | 7519291 Ecrou | 4 | |
| 34 | 8073108 Rondelle | 4 | |
| 35 | 8029985 92153033 Rondelle | 2 | |
| 37 | 7532120 Tuyau d'admission | 1 | |
| 38 | 7529027 Flexible | 1 | |
| 43 | 7970148 92153079 Collier serrage | 3 | |
| 46 | 9301706 Etanchéité Usage: 1986-1986 | X | |
| 46 | 8818569 9185489 Kit plombage Usage: 1987-1989 | X | |
| 47 | 7520216 Vis | 1 | |
| 48 | 7520190 Vis | 1 | |
| 49 | 7520208 Vis | 1 | |
| 50 | 8073942 Ecrou Usage: 1986-1987 | 1 | |
| 50 | 8151060 Ecrou Usage: 1988-1989 | 1 | |
| 51 | 8367864 Douille | 1 | |
| 52 | 7501562 Tuyau | 1 | |
| 53 | 8367187 Flexible | 1 | |
| 54 | 7970163 92150224 Collier serrage | 2 | |
| 55 | 8367179 Flexible | 1 | |
| 56 | 7970155 92153080 Collier serrage | 2 | |
| 57 | 9311598 Gâche | 1 | |
| 58 | 8129876 Vis | 1 | |
8817264 Kit joints | X |
