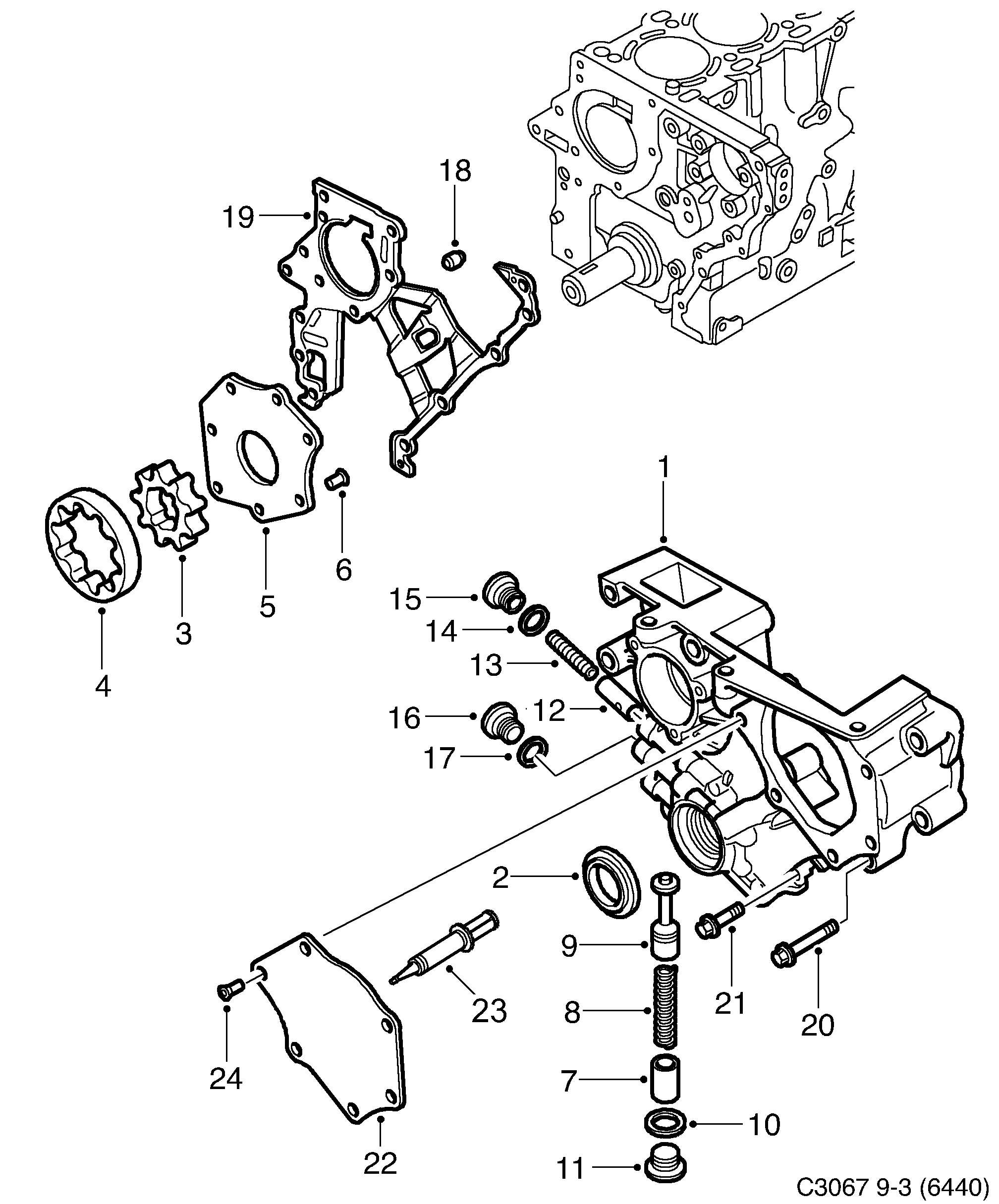

2151: Moteur - Système de graissage - Pompe huile
(2003 - 2004 | 4-CYL,DIESEL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 24426999 Capot | 1 | |
| 2 | 90500805 Joint | 1 | |
| 3 | 9228266 Rotor pompe | 1 | |
| 4 | 9228265 Rotor pompe | 1 | |
| 5 | 9129049 Couvercle | 1 | |
| 6 | 11093893 Vis | 7 | |
| 7 | 90502640 Piston | 1 | |
| 8 | 90502641 Ressort | 1 | |
| 9 | 90502639 Piston | 1 | |
| 10 | 9148404 11093042 Joint | 1 | |
| 11 | 11097551 Bouchon | 1 | |
| 12 | 90502642 Plongeur | 1 | |
| 13 | 90502643 Ressort | 1 | |
| 14 | 11016289 11016282 Bague étanchéité | 1 | |
| 15 | 90528616 Tampon | 1 | |
| 16 | 11097541 Tampon | 1 | |
| 17 | 11017111 Joint | 1 | |
| 18 | 90281475 Goujon élastique | 2 | |
| 19 | 9202219 Joint | 1 | |
| 20 | 11093792 Vis | 11 | |
| 21 | 11093612 Vis | 2 | |
| 22 | 90530170 Couvercle | 1 | |
| 23 | Joint | 1 | |
| 24 | 11093893 Vis | 6 |
