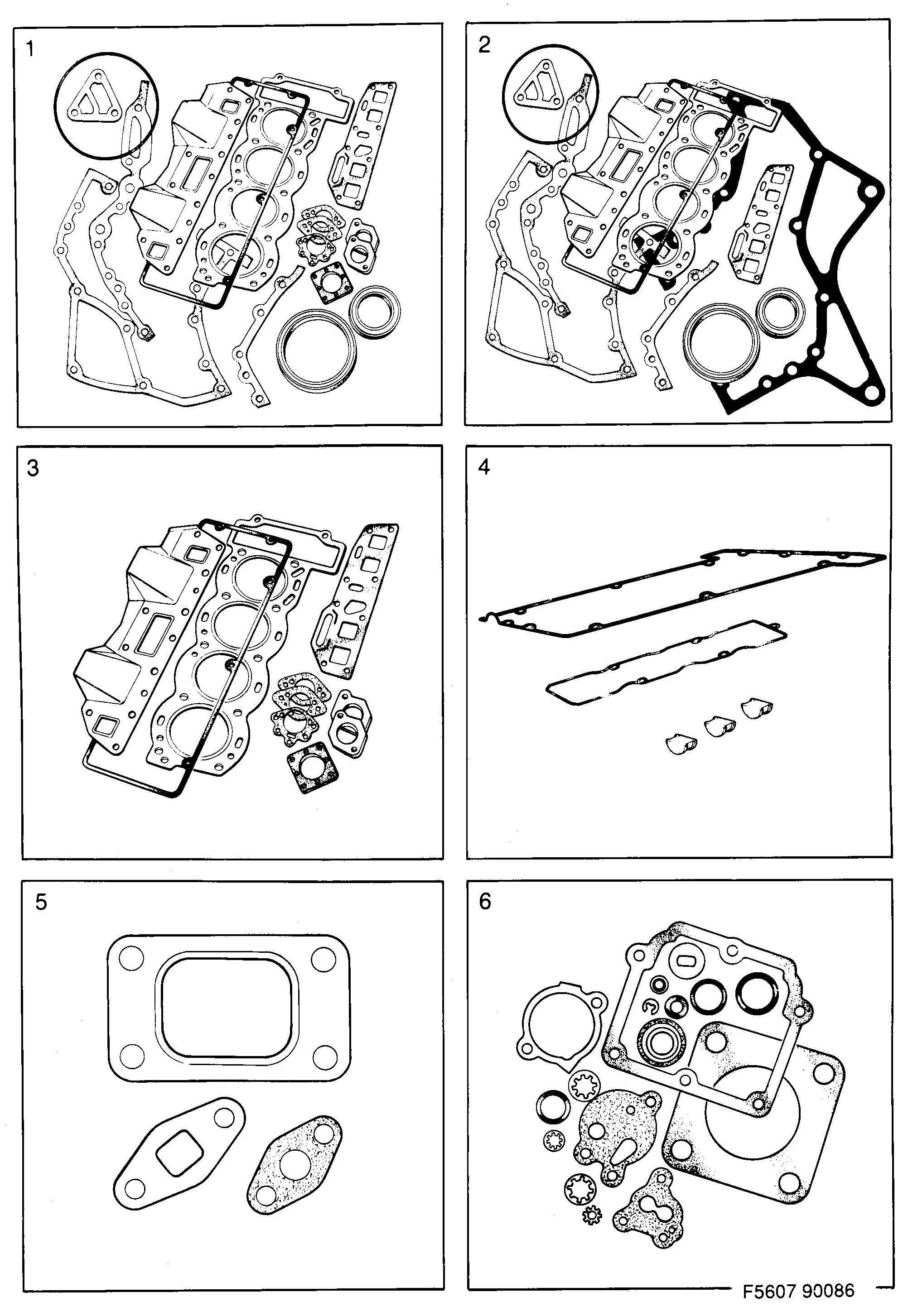

| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9337213 Kit joints Usage: C, T | X | |
7585037 Joint | 1 | ||
9355991 Joint | 1 | ||
7589039 Joint | 1 | ||
9350158 55557240 Joint | 1 | ||
9309204 55557231 Joint | 1 | ||
7563646 9321795 Joint | 1 | ||
9117839 Joint | 1 | ||
7569346 Joint | 1 | ||
7561772 Joint | 1 | ||
7566433 Joint | 1 | ||
8369829 30543193 Joint | 1 | ||
7588981 Joint | 1 | ||
7588916 Joint Usage: T | 2 | ||
8374639 Joint Usage: C | 1 | ||
8336877 Joint Usage: T | 2 | ||
| 2 | 9337221 Kit joints Usage: B201TURBO, B201I | X | |
7585037 Joint | 1 | ||
9355991 Joint Usage: (9306911) | 1 | ||
7589039 Joint | 1 | ||
9350158 55557240 Joint | 1 | ||
9309204 55557231 Joint | 1 | ||
7563653 9321795 Joint Usage: (7509375) | 1 | ||
9117839 Joint | 1 | ||
9117847 9321795 Joint | 1 | ||
7582315 Joint Usage: (9307265) | 1 | ||
7561772 Joint | 1 | ||
7566433 Joint Usage: (9308180) | 1 | ||
8369829 30543193 Joint | 1 | ||
| 3 | 9337239 Pochette Rodage Usage: C, T | X | |
7585037 Joint | 1 | ||
9355991 Joint Usage: (9306911) | 1 | ||
7569346 Joint | 1 | ||
7561772 Joint | 1 | ||
7588981 Joint Usage: C | (8368334) | 1 | ||
7588916 Joint Usage: T | 2 | ||
8374639 Joint Usage: C | 1 | ||
8336877 Joint Usage: T | 2 | ||
| 3 | 9337247 Pochette Rodage Usage: B201I | X | |
7585037 Joint | 1 | ||
9355991 Joint Usage: (9306911) | 1 | ||
7582315 Joint | 1 | ||
7561772 Joint | 1 | ||
| 3 | 9337254 Pochette Rodage Usage: B201TURBO | X | |
7585037 Joint | 1 | ||
9355991 Joint Usage: (9306911) | 1 | ||
7582315 Joint Usage: (9307265) | 1 | ||
9314139 Joint | 1 | ||
8366262 Joint Usage: TURBO | 1 | ||
8124141 92150435 Joint Usage: GUIDE TUBE | 1 | ||
8361842 7588940 Joint | 2 | ||
8361859 7588957 Joint | 1 | ||
| 3 | 8818007 Pochette Rodage Usage: 1986-1986 | B202 | X | |
7518996 Joint | 1 | ||
7585045 9181348 Joint | 1 | ||
8817512 Kit joints | 1 | ||
7515190 9549593 Bague | 1 | ||
7480429 Raccord | 6 | ||
7480437 Raccord | 2 | ||
7480445 Raccord | 1 | ||
7480452 Raccord | 1 | ||
7480460 Raccord | 1 | ||
7584436 Joint | 1 | ||
| 3 | 8819823 Pochette Rodage Usage: 1988-1988 | B202 | X | |
7518996 Joint | 1 | ||
8818254 8822041 Kit joints | 1 | ||
7584436 Joint | 1 | ||
7480429 Raccord | 6 | ||
7480437 Raccord | 2 | ||
7480445 Raccord | 1 | ||
7480452 Raccord | 1 | ||
7515190 9549593 Bague | 1 | ||
7484405 9181348 Joint | 1 | ||
| 3 | 8819831 Pochette Rodage Usage: 1988-1988 | B202 | X | |
7518996 Joint | 1 | ||
7584436 Joint | 1 | ||
8818254 8822041 Kit joints | 1 | ||
7585045 9181348 Joint | 1 | ||
| 4 | 8817512 Kit joints Usage: 1986-1986 | B202 | X | |
7520380 Joint | 1 | ||
9359647 Joint | 1 | ||
7500069 Tampon | 3 | ||
| 4 | 8818254 8822041 Kit joints Usage: 1986-1986 | B202 | X | |
7500069 Tampon | 3 | ||
7588056 55555635 Joint | 1 | ||
7523962 55555634 Joint | 1 | ||
| 5 | 8817264 Kit joints Usage: TURBO | X | |
8366262 Joint | 1 | ||
2303279 7507700 Joint | 1 | ||
9300476 7518970 Joint | 1 | ||
| 6 | 8364234 Kit joints Usage: C | (SOLEX) | X | |
8351348 Rondelle | 1 | ||
8305419 Rondelle | 1 | ||
8305336 Rondelle | 2 | ||
8308652 Joint | 1 | ||
8309098 Rondelle | 2 | ||
8309064 Joint | 1 | ||
8309072 Joint | 1 | ||
8305773 Joint torique | 1 | ||
8305849 Joint Usage: FLOAT CHAMBER | 1 | ||
8305823 Rondelle Usage: NEEDLE VALVE | 1 | ||
8366643 Joint | 1 | ||
8305484 Rondelle | 2 | ||
8366650 Joint torique | 1 | ||
8366668 Bague retenue Usage: DAMP PISTON | 1 | ||
8366676 Rondelle | 1 |
