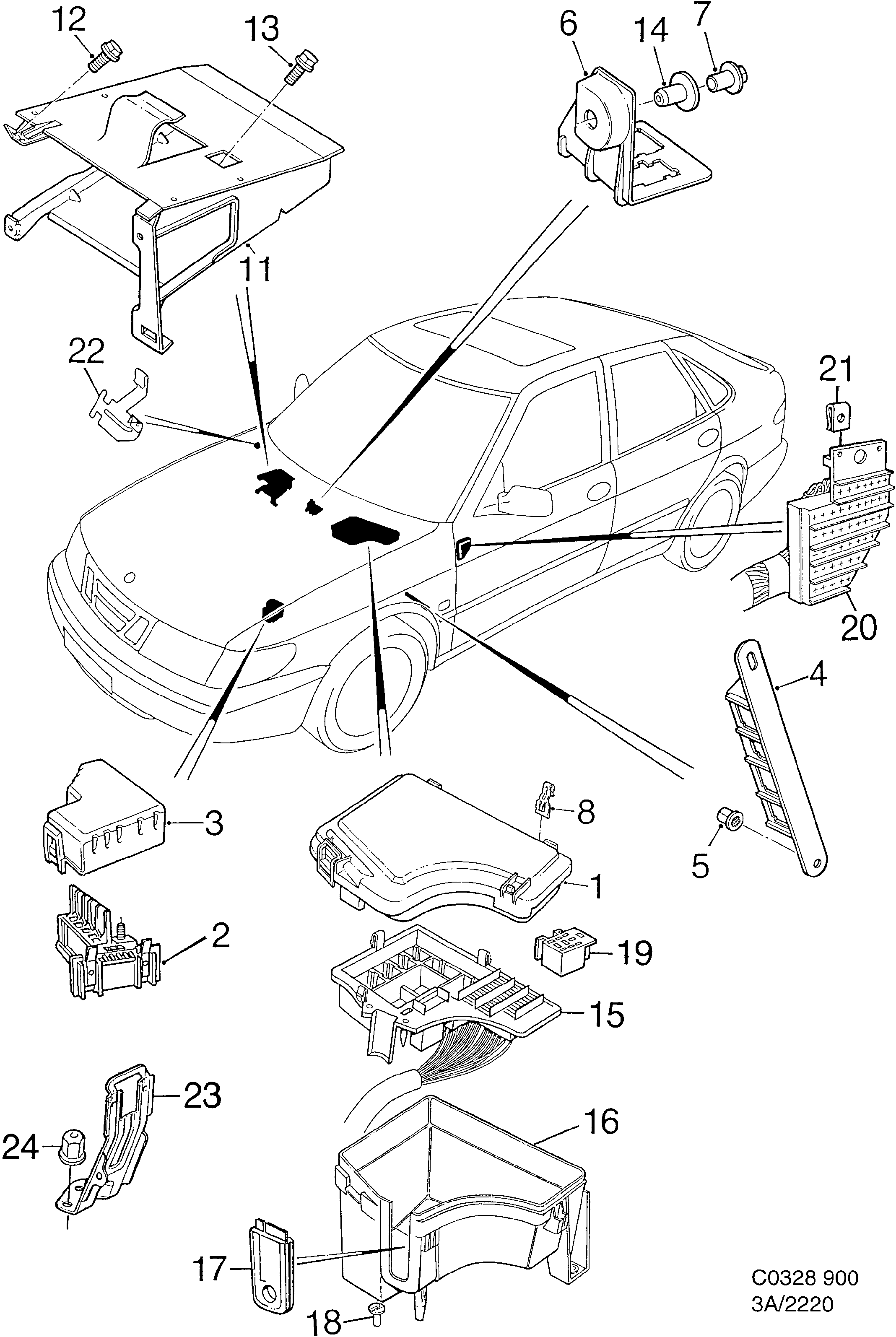

2220: Système électrique, généralités - Conduites et fusibles - Supports et consoles
(1994 - 1998)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 4537403 Couvercle Usage: 1994-1994 | 1 | |
| 1 | 4537403 Couvercle Usage: -1995 | 1 | |
| 1 | 4584157 4694352 Couvercle Usage: -1995 | 1 | |
| 1 | 4584157 4694352 Couvercle Usage: 1995-1995 | 1 | |
| 1 | 4694352 Couvercle Usage: 1995-1995 | 1 | |
| 1 | 4693081 Couvercle Usage: 1996-1996 | 1 | |
| 1 | 4807947 Couvercle Usage: 1997-1997 | 1 | |
| 1 | 4941621 Couvercle Usage: 1998-1998 | 1 | |
| 2 | 4410577 4814349 Porte-fusible Usage: -1995 | 1 | |
| 2 | 4694634 4814349 Porte-fusible Usage: 1995-1997 | 1 | |
| 2 | 4814349 Porte-fusible Usage: 1997- | 1 | |
| 3 | 4230207 Couvercle | 1 | |
| 4 | 4409348 30550924 Console | 1 | |
| 5 | 4087128 92152035 Ecrou plastique | 2 | |
| 6 | 4222824 Console Usage: 1994-1995 | 1 | |
| 6 | 4735825 Console Usage: 1996-1998 | 1 | |
| 7 | 4238291 Ecrou | 1 | |
| 8 | 4409371 30550925 Clip | 1 | |
| 11 | 4408472 32000170 Console Usage: RHD | ICE/DICE | 1 | |
| 12 | 7978372 11900378 Vis | 4 | |
| 13 | 7970536 92150118 Vis | 2 | |
| 14 | 4238309 Agrafe entretoise | 1 | |
| 15 | 4230017 Support | 1 | |
| 16 | 4230009 4811006 Boîte | 1 | |
| 17 | 4233375 Passe-câble | 1 | |
| 18 | 7116452 Bouchon drainage | 1 | |
| 19 | 4409934 Support Usage: 5-WAY MINIMODULE | X | |
| 19 | 4409942 Support Usage: 5-WAY RELAYMODULE | X | |
| 19 | 4409959 30560919 Support Usage: 9-WAY RELAYMODULE | X | |
| 20 | 4230074 Retenue Usage: 1994-1996, LHD | 1 | |
| 20 | 4736930 Retenue Usage: 1997-1998, LHD | 1 | |
| 20 | 4230140 4736948 Retenue Usage: 1994-1996, RHD | 1 | |
| 20 | 4736948 Retenue Usage: 1997-1998, RHD | 1 | |
| 21 | 7967995 Ecrou d'agrafe | 2 | |
| 22 | 4811048 Console Usage: 1997-1998 | câblage | 1 | |
| 23 | 4694337 Console | 1 | |
| 24 | 4087128 92152035 Ecrou plastique | 2 |
