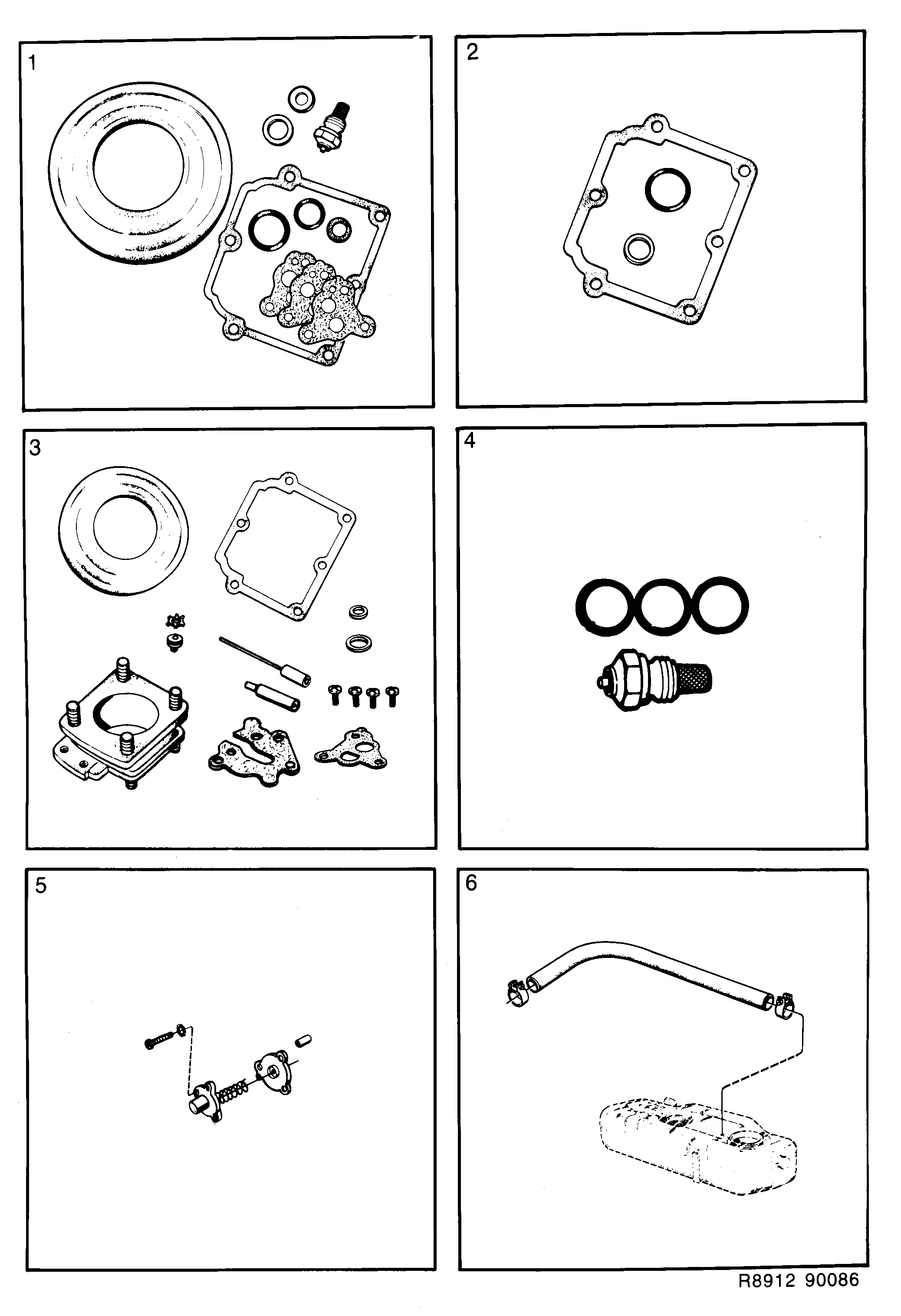

| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 8364259 Kit joints Usage: C | (SOLEX) | X | |
8308652 Joint | 1 | ||
8309064 Joint | 1 | ||
8309072 Joint | 1 | ||
8305823 Rondelle Usage: NEEDLE VALVE | 1 | ||
8305575 Ressort | 1 | ||
8305849 Joint Usage: FLOAT CHAMBER | 1 | ||
8308678 Aiguille carburant | 1 | ||
8352494 Joint | 1 | ||
8351413 Pointeau | 1 | ||
| 2 | 8364242 Kit joints Usage: C, T | (SOLEX) | X | |
8305823 Rondelle Usage: NEEDLE VALVE | 1 | ||
8305773 Joint torique | 1 | ||
8305849 Joint Usage: FLOAT CHAMBER | 1 | ||
| 3 | 8818767 Kit réparation Usage: C | (SOLEX) | X | |
7508203 Joint | 1 | ||
8305849 Joint | 1 | ||
8308892 Vis | 1 | ||
8309064 Joint | 1 | ||
8309072 Joint | 1 | ||
8364192 Anneau verrouillage | 1 | ||
8365850 Gicleur | 1 | ||
8366312 Aiguille carburant | 1 | ||
7588981 Joint | 1 | ||
8369647 Joint | 1 | ||
8388670 Diaphragme | 1 | ||
9308792 Vis | 1 | ||
| 4 | 8361644 Pointeau ens Usage: C | (SOLEX) | X | |
8351413 Pointeau Usage: N'est pas une pièce de rechange distincte. | 1 | ||
8305823 Rondelle | 1 | ||
| 5 | 7509128 Diaphragme Usage: C, T | (SOLEX) | X | |
7509136 Diaphragme | 1 | ||
9352063 Couvercle | 1 | ||
9352055 Ressort | 1 | ||
7508732 Douille | 3 | ||
7972789 Vis | 3 | ||
| 6 | 8817256 Flexible carburant | X | |
9363359 Flexible | 1 | ||
7977697 90530642 Collier serrage | 4 |
