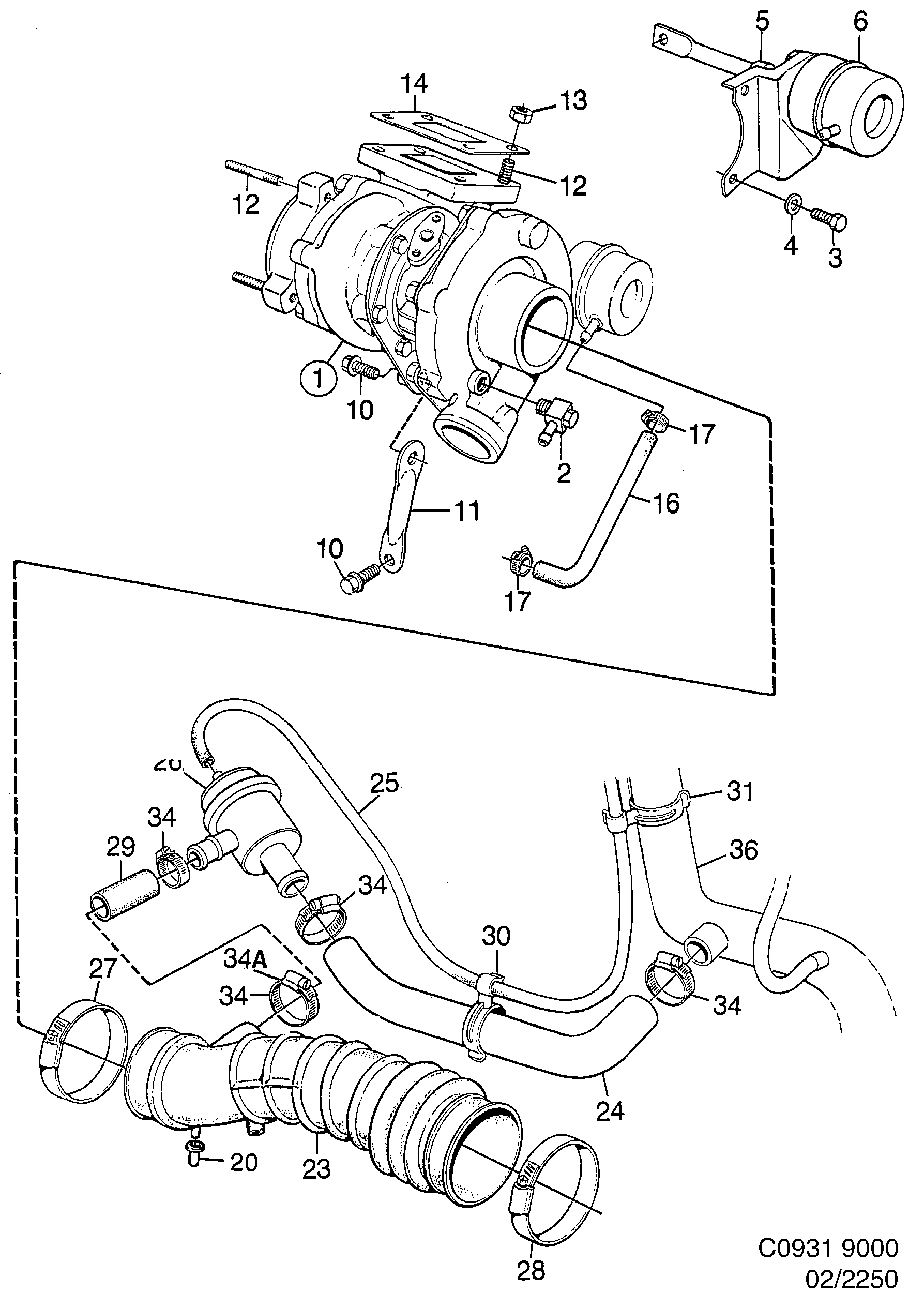

2250: Moteur - Système de suralimentation - Turbocompresseur
(1994 - 1998 | TURBO)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9146051 30551906 Turbocompresseur Usage: T25 | 1 | |
| 1 | 9149634 Turbocompresseur Usage: B234R | TD04 | 1 | |
| 2 | 9169517 Raccord Usage: T25 | 1 | |
| 2 | 8787319 Raccord Usage: B234R | TD04 | 1 | |
| 3 | 8082935 Vis Usage: B234R | TD04 | 2 | |
| 4 | 7915572 Rondelle Usage: B234R | TD04 | 2 | |
| 5 | 9169426 Ecrou Usage: T25 | 1 | |
| 6 | 9169491 Régulateur de pression Usage: T25 | 1 | |
| 6 | 9169483 Régulateur de pression Usage: B234R | TD04 | 1 | |
| 10 | 7978182 92150012 Vis | 2 | |
| 11 | 9146812 30551920 Tirant | 1 | |
| 12 | 9357138 90490326 Vis Usage: T25 | 7 | |
| 12 | 9141730 Vis Usage: B234R | TD04 | 7 | |
| 13 | 9116674 30520445 Ecrou | 4 | |
| 14 | 9113937 Joint | 1 | |
| 16 | 9168899 9169467 Flexible Usage: -1995 | B234E, B204E | 1 | |
| 16 | 9169467 Flexible Usage: 1995- | B234E, B204E | 1 | |
| 17 | 7973522 Collier serrage Usage: -1995 | B234E, B204E | 2 | |
| 17 | 7973605 Collier serrage Usage: 1995- | B234E, B204E | 2 | |
| 20 | 9253329 Clip Usage: 1994-1995 | B234E | 1 | |
| 20 | 4509626 Douille Usage: 1996-1998 | B234E | 1 | |
| 23 | 4163416 Flexible | 1 | |
| 24 | 7591936 Flexible | 1 | |
| 25 | 9136243 Flexible à dépression Usage: Vendu par longueurs de 5m | L=650MM | 1 | |
| 25 | 9136243 Flexible à dépression Usage: B204S | Vendu par longueurs de 5m | L=1250MM | 1 | |
| 26 | 4391157 4441895 Soupape by-pass | 1 | |
| 27 | 7970148 92153079 Collier serrage | 1 | |
| 28 | 7970155 92153080 Collier serrage | 1 | |
| 29 | 4163432 Flexible | 1 | |
| 29 | 4441994 Flexible Usage: B204S | 1 | |
| 30 | 7398407 Collier serrage | 1 | |
| 31 | 7398415 Pince serrage | 1 | |
| 34 | 7970098 Collier serrage | 3 | |
| 34A | 7982937 Collier serrage Usage: B204S | 1 | |
| 36 | 1 | ||
8818569 9185489 Kit plombage Usage: 1994-1996 | X | ||
9185489 Kit plombage Usage: 1997-1998 | X | ||
9136243 Flexible à dépression Usage: Vendu par longueurs de 5m | L=5000MM | X |
