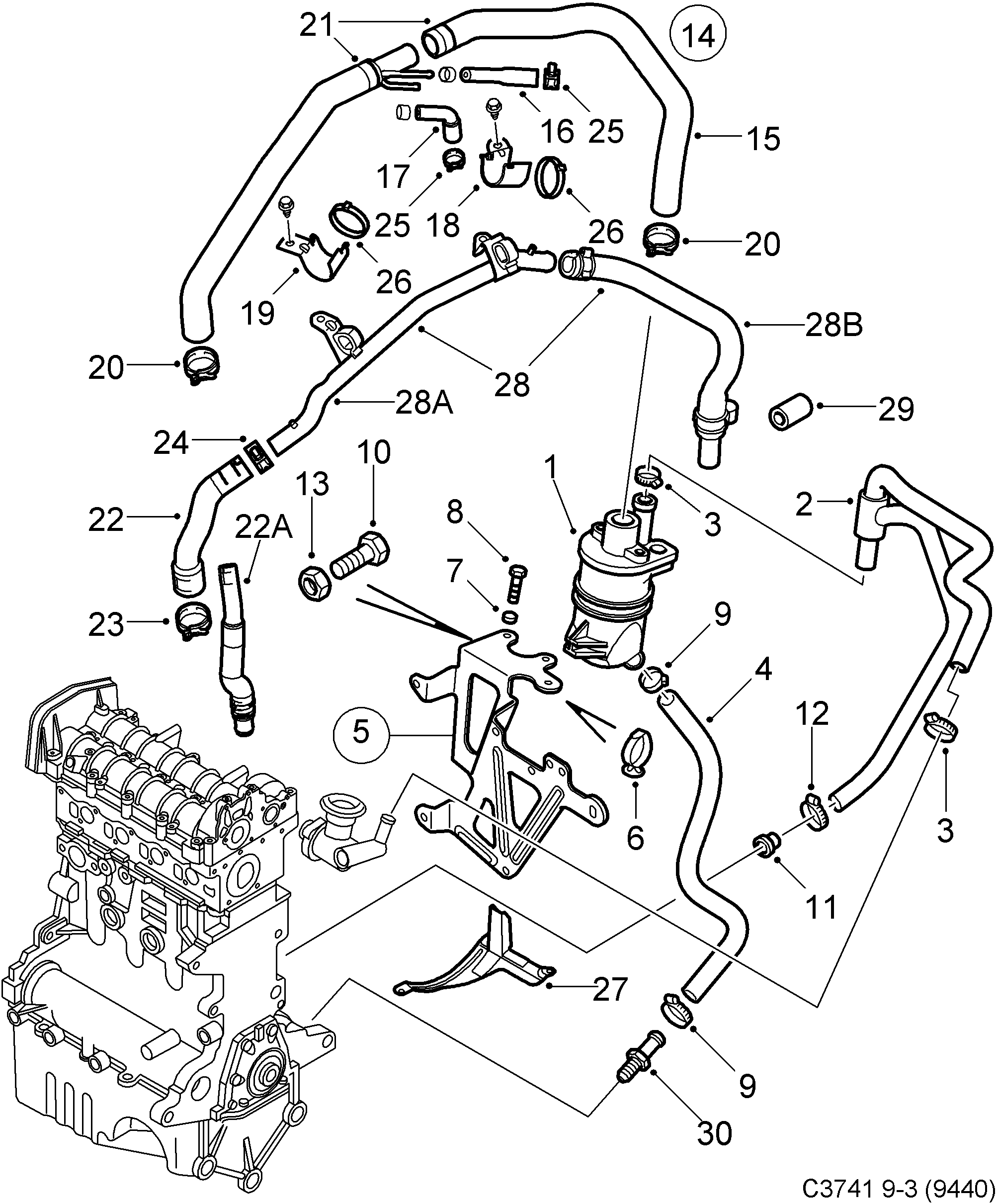

2275: Moteur - Système de graissage - Ventilation de carter supérieur
(2005 - 2011 | 4-CYL,DIESEL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 93179199 55217793 Capteur huile Usage: 2005-2007 | Z19DTH | 1 | |
| 1 | 55217793 Déshuileur Usage: 2005-2007 | Z19DTH | 1 | |
| 1 | 55192366 Déshuileur Usage: 2005-2007 | Z19DTH | 1 | |
| 1 | 55217795 Déshuileur Usage: 2008-2010 | Z19DTH | 1 | |
| 1 | 93167121 93167153 Déshuileur Usage: 2008-2011 | Z19DTR, A19DTR | 1 | |
| 1 | 93167153 Déshuileur Usage: 2008-2011 | Z19DTR, A19DTR | 1 | |
| 4 | Flexible Usage: 2008-2011 | Z19DTR | N'est pas une pièce de rechange distincte. | 1 | |
| 2 | 55566680 93179200 Flexible Usage: 2005-2010 | Z19DTH | 1 | |
| 2 | 93179200 Flexible Usage: 2005-2010 | Z19DTH | 1 | |
| 3 | 93179201 Collier serrage Usage: 2005-2010 | Z19DTH | Ø24 MM | 2 | |
| 4 | 93179202 Flexible Usage: 2005-2010 | Z19DTH | 1 | |
| 5 | 93179203 Console Usage: 2005-2010 | Z19DTH | 1 | |
| 6 | 93179204 Collier serrage Usage: 2005-2010 | Z19DTH | 1 | |
| 7 | 93179205 Rondelle Usage: 2005-2010 | Z19DTH | 3 | |
| 8 | 93183430 Vis Usage: 2005-2010 | Z19DTH | M5X12 | 3 | |
| 9 | 93179207 Collier serrage Usage: 2005-2010 | Z19DTH | Ø20,5-22,5 MM | 2 | |
| 10 | 93177489 Vis Usage: 2005-2010 | Z19DTH | M6X14 | 1 | |
| 10 | 93177417 Vis Usage: 2005-2010 | Z19DTH | M6X22 | 1 | |
| 11 | 55574449 Ecrou raccord Usage: 2005-2010 | Z19DTH | 1 | |
| 12 | 93179209 Collier serrage Usage: 2005-2010 | Z19DTH | Ø26 MM | 1 | |
| 13 | 93179210 Ecrou Usage: 2005-2010 | Z19DTH | M6 | 1 | |
| 14 | 55559053 Tuyau Usage: 2005-2006 | Z19DTH | Climat froid. | 1 | |
| 14 | 55566851 Tuyau Usage: 2007-2009 | Z19DTH | Climat froid. | 1 | |
| 15 | 55559058 Tuyau Usage: 2005-2010 | Z19DTH | 1 | |
| 16 | 55559059 Flexible Usage: Z19DTH | 1 | |
| 17 | 55559060 Flexible Usage: 2005-2010 | Z19DTH | 1 | |
| 18 | 55559063 Fixation Usage: 2005-2010 | Z19DTH | 1 | |
| 19 | 55559056 Fixation Usage: 2005-2010 | Z19DTH | 1 | |
| 20 | 90499093 Collier serrage Usage: 2005-2010 | Z19DTH | 2 | |
| 21 | 92152409 Collier serrage Usage: 2005-2010 | Z19DTH | 2 | |
| 22 | 55351569 Flexible Usage: 2005-2010 | Z19DTH | 1 | |
| 22A | 55567272 Flexible Usage: 2008-2011 | Z19DTR, A19DTR | 1 | |
| 23 | 90572594 Collier serrage | 1 | |
| 24 | 90467194 Collier serrage | 1 | |
| 25 | 90530642 Collier serrage Usage: Climat froid. | 2 | |
| 26 | 11900512 Ruban serrage Usage: Climat froid. | 2 | |
| 27 | 55565118 Baffle Usage: 2007-2010 | Z19DTH | 1 | |
| 28 | 93184683 Flexible Usage: 2005-2010 | Z19DTH | 1 | |
| 28A | 55207543 Flexible Usage: 2005-2010 | Z19DTH | 1 | |
| 28B | 55209237 Flexible Usage: 2005-2010 | Z19DTH | 1 | |
| 29 | 55567315 Obturateur Usage: 2005-2010 | Z19DTH | Ventilation de carter supérieur Tuyau | 1 | |
| 30 | 93178968 Raccord Usage: 2005-2010 | Z19DTH | Ventilation de carter supérieur Tuyau | 1 |
