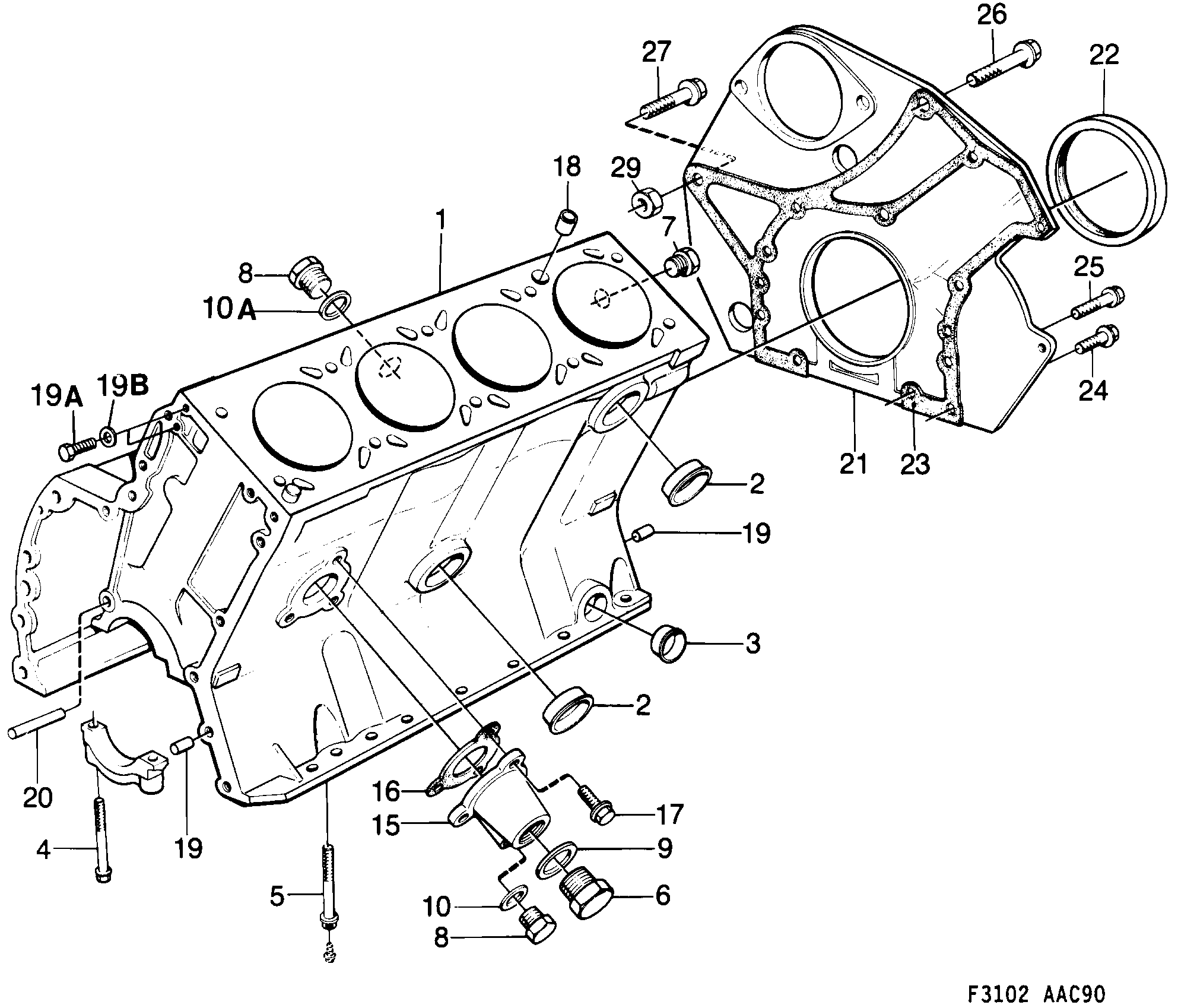

230: Moteur - Corps de moteur - Bloc-cylindres
(1990 - 1993)
Concerne aussi CV 1994
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7516826 Bloc-cylindres | 1 | |
| 1 | 7516834 Bloc-cylindres Usage: TURBO | 1 | |
| 1 | 9116294 Bloc-cylindres Usage: B212 | 1 | |
| 2 | 9116757 32000339 Rondelle étanchéité | 2 | |
| 3 | 7588320 Rondelle étanchéité | 1 | |
| 4 | 8352502 9128687 Vis | 6 | |
| 5 | 9308537 Vis Usage: Paliers principaux 2 et 3. | 4 | |
| 6 | 8123788 Bouchon | 1 | |
| 7 | 8348047 Bouchon | 1 | |
| 8 | 8123721 7563042 Bouchon | 2 | |
| 9 | 9116856 Joint | 1 | |
| 10 | 8326712 4161162 Joint | 2 | |
| 10A | 8326712 4161162 Joint | 2 | |
| 10A | 8124141 92150435 Joint Usage: B212 | 2 | |
| 15 | 7581259 9144684 Couvercle Usage: 1990-1991 | 1 | |
| 15 | 9144684 Couvercle Usage: 1992-1993 | 1 | |
| 16 | 7523897 Joint | 1 | |
| 17 | 8125189 Vis | 3 | |
| 18 | 8346470 Guide | 2 | |
| 19 | 8366007 Guide | 4 | |
| 19A | 9166273 Vis Usage: 1990-1991 | B212 | (8019895) | 2 | |
| 19B | 8073223 Rondelle Usage: 1990-1991 | B212 | 2 | |
| 20 | Goupille | 1 | |
| 21 | 7516255 Flasque | 1 | |
| 22 | 9350158 55557240 Joint Usage: 1990-1991 | 1 | |
| 22 | 8787764 55557240 Joint Usage: 1992-1993 | 1 | |
| 23 | 7563661 Joint Usage: -1992 | 1 | |
| 23 | 90297970 Instajoint Usage: 1992- | 50 ML | X | |
| 24 | 8125189 Vis | 9 | |
| 25 | 8125197 Vis | 2 | |
| 26 | 8150500 Vis | 1 | |
| 27 | 8150534 Vis Usage: C | 1 | |
| 27 | 8150559 Vis | 1 | |
| 29 | 8151086 Ecrou | 1 |
