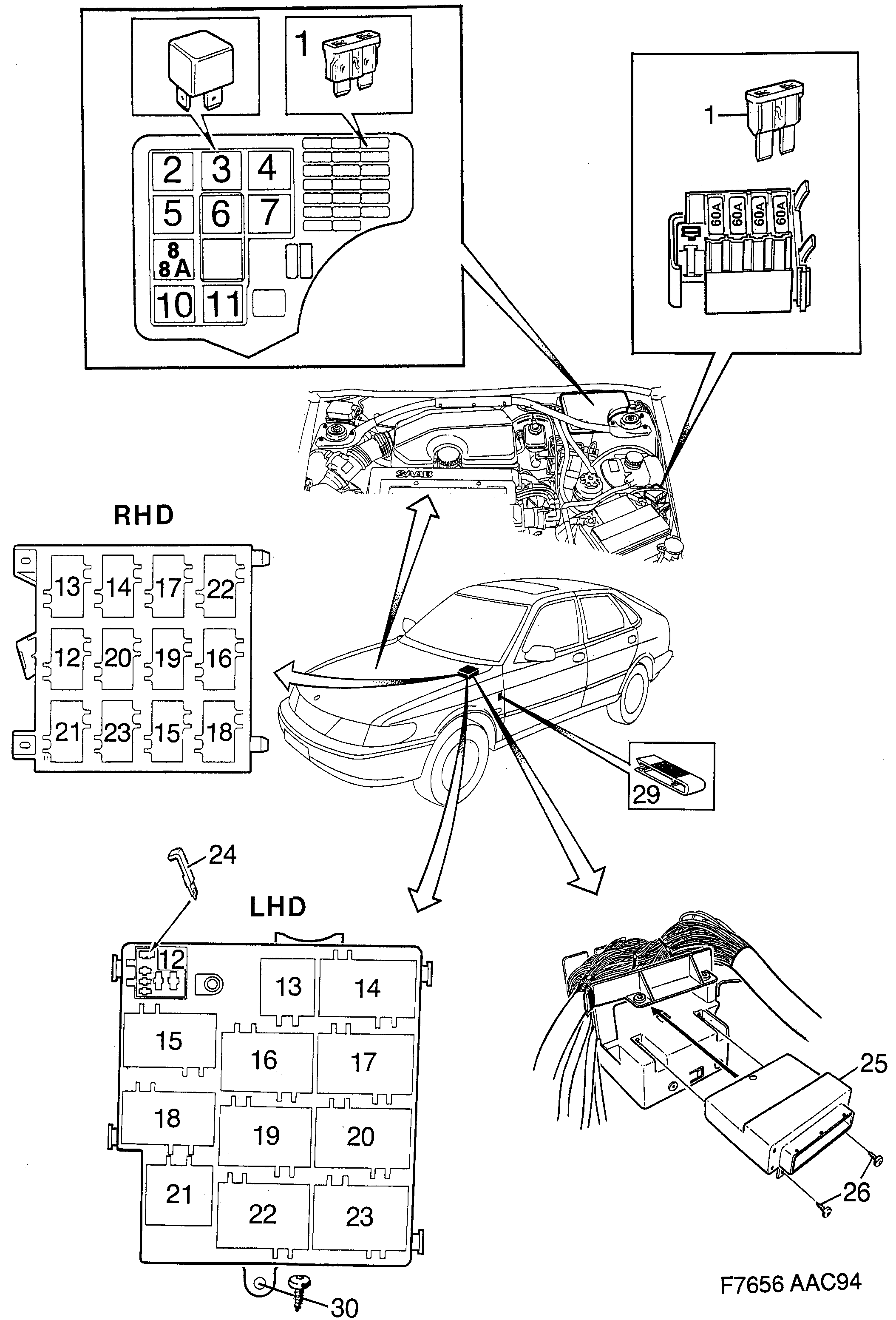

2310: Système électrique, généralités - Conduites et fusibles - Relais et fusibles - ICE
(1996)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7974611 Fusible Usage: 5A | X | |
| 1 | 7974629 Fusible Usage: 7,5A | X | |
| 1 | 7974637 Fusible Usage: 10A | X | |
| 1 | 7974645 Fusible Usage: 15A | X | |
| 1 | 7974652 Fusible Usage: 20A | X | |
| 1 | 7974660 Fusible Usage: 25A | X | |
| 1 | 7974678 Fusible Usage: 30A | X | |
| 1 | 7983034 Fusible Usage: 30A,MAXI | X | |
| 1 | 4087698 Fusible Usage: 40A | X | |
| 1 | 7983042 Fusible Usage: 40A,MAXI | X | |
| 1 | 7983059 Fusible Usage: 50A,MAXI | X | |
| 1 | 7983067 Fusible Usage: 60A,MAXI | X | |
| 2 | 8533176 Relais Usage: feux de route/croisement | 1 | |
| 3 | 8533176 Relais Usage: phare | 1 | |
| 4 | 9522061 Relais Usage: SAI | 1 | |
| 4 | 9522061 Relais Usage: plaque chauffante | 1 | |
| 5 | 8533176 Relais Usage: ventilateur de refroidissement | 1 | |
| 6 | 4109070 Relais Usage: contrôle d'ampoule | 1 | |
| 7 | 4224192 4947115 Relais Usage: phare antibrouillard | 1 | |
| 8 | 4224192 4947115 Relais Usage: avertisseur sonore | 1 | |
| 8A | 4224192 4947115 Relais Usage: SAI | 1 | |
| 10 | 9522061 Relais Usage: ventilateur, 2 vitesses | 1 | |
| 11 | 8533176 Relais Usage: AC compresseur | 1 | |
| 12 | 4224192 4947115 Relais Usage: banquette arrière | 1 | |
| 13 | 4224192 4947115 Relais Usage: Feux de recul latéraux | 1 | |
| 14 | 4238234 Relais Usage: blocage au démarrage | 1 | |
| 15 | 8533176 Relais Usage: essuie-glace arrière | 1 | |
| 16 | 9522061 Relais Usage: Contacteur d'allumage | 1 | |
| 17 | 4433322 Relais Usage: catalyseur surchauffé | 1 | |
| 18 | 8533176 Relais Usage: essuie-glace intermittent | 1 | |
| 19 | 9522061 Relais Usage: lunette arrière | 1 | |
| 20 | 8533176 Relais Usage: pompe à carburant | 1 | |
| 21 | 4224200 13266315 Relais Usage: pompe de lave-glace | 1 | |
| 22 | 8533176 Relais Usage: relais démarrage | 1 | |
| 23 | 8533176 Relais Usage: système d'injection | 1 | |
| 24 | 4230108 Collier serrage | X | |
| 25 | 4536785 4711263 Unité électronique Usage: ICE | 1 | |
| 26 | 7970536 92150118 Vis | 2 | |
| 29 | 8587636 Agrafe-fusible | 1 | |
| 30 | 7970536 92150118 Vis | 1 |
