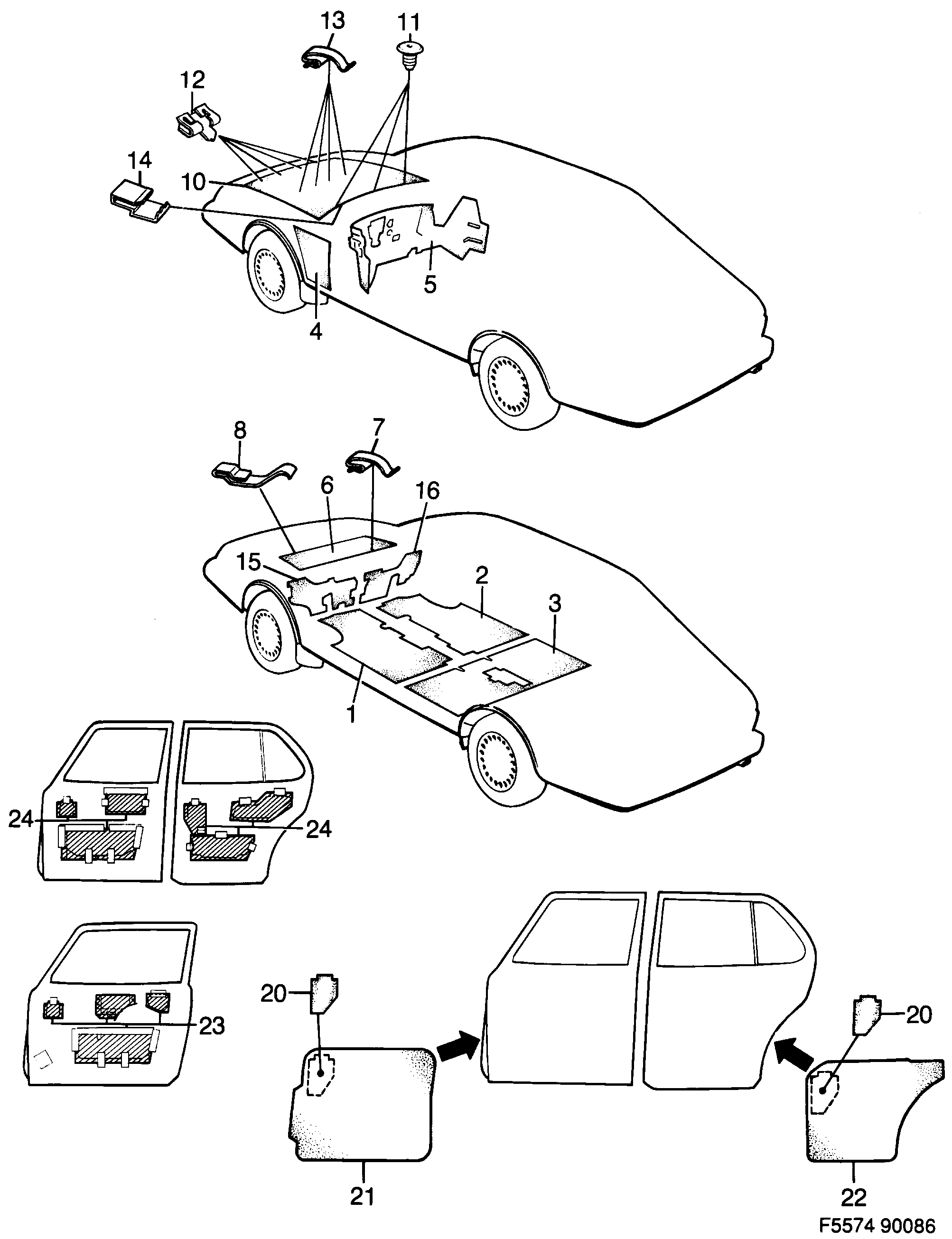

250: Carrosserie, intérieur - Garnitures - Isolement
(1986 - 1989)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9849811 Isolant Usage: LH | 1 | |
| 1 | 9837170 Isolant Usage: 1986-1986 | B202 | LH | 1 | |
| 1 | 9686023 Isolant Usage: 1987-1989 | B202 | LH | 1 | |
| 2 | 9849829 Isolant Usage: RH | 1 | |
| 2 | 9837188 Isolant Usage: 1986-1986 | B202 | RH | 1 | |
| 2 | 9686031 Isolant Usage: 1987-1989 | B202 | RH | 1 | |
| 3 | 9723701 Isolant Usage: 1986-1986 | I | 1 | |
| 3 | 9674847 Isolant Usage: 1987-1989 | I | 1 | |
| 4 | 9449877 Isolant Usage: I | LH | 1 | |
| 4 | 9449885 Isolant Usage: -1987 | I | RH | 1 | |
| 4 | 9685694 Isolant Usage: 1987- | I | RH | 1 | |
| 5 | 9833856 Isolant Usage: -1988 | B202 | 1 | |
| 5 | 9541657 Isolant Usage: 1988-1988 | 1 | |
| 5 | 4042032 Isolant Usage: 1989-1989 | Valable aussi pour SE 1988B. | 1 | |
| 6 | 9703414 Isolation de capot | 1 | |
| 7 | 9706573 Clip | 4 | |
| 8 | 9857921 Collier serrage | 4 | |
| 10 | 9534439 Isolation de capot Usage: 1988- | B201 | 1 | |
| 10 | 9833849 Isolation de capot Usage: 1986-1986 | B202 | 1 | |
| 10 | 9617085 Isolation de capot Usage: 1987-1988 | B202 | 1 | |
| 10 | 9534439 Isolation de capot Usage: 1989-1989 | B202 | Valable aussi pour SE 1988B. | 1 | |
| 10 | 4042735 Isolation de capot Usage: 1989- | B202 | Valable aussi pour SE 1988B. | 1 | |
| 11 | 9760497 Pince serrage Usage: 1988- | B201 | 3 | |
| 11 | 9760497 Pince serrage Usage: B202 | 3 | |
| 12 | 9722075 Pince serrage Usage: 1988- | B201 | 4 | |
| 12 | 9722075 Pince serrage Usage: B202 | 4 | |
| 13 | 9706573 Clip Usage: 1988- | B201 | 4 | |
| 13 | 9706573 Clip Usage: B202 | 4 | |
| 14 | 9492885 Clip Usage: 1988- | B201 | 1 | |
| 14 | 9492885 Clip Usage: 1987-1989 | B202 | 1 | |
| 15 | 9829136 Isolant Usage: -1986 | I | LH | 1 | |
| 15 | 9615188 Isolant Usage: 1986-1987 | I | LH | 1 | |
| 15 | 9676248 Isolant Usage: 1987- | I | LH | 1 | |
| 16 | 9741612 Isolant Usage: -1986 | I | RH | 1 | |
| 16 | 9615196 Isolant Usage: 1986-1987 | I | RH | 1 | |
| 16 | 9676255 Isolant Usage: 1987-1987 | I | RH | 1 | |
| 16 | 9688672 Isolant Usage: 1988-1989 | RH | 1 | |
| 20 | 9235342 Evacuation d'eau Usage: 1986- | 4 | |
| 21 | 9814344 Evacuation d'eau Usage: 1989-1989 | Valable aussi pour SE 1988B. | LH | 1 | |
| 21 | 4048997 Evacuation d'eau Usage: 1989- | LH | 1 | |
| 21 | 9814351 Evacuation d'eau Usage: 1989-1989 | Valable aussi pour SE 1988B. | RH | 1 | |
| 21 | 4049003 Evacuation d'eau Usage: 1989- | RH | 1 | |
| 21 | 9814302 Evacuation d'eau Usage: 1986-1986 | LH | 1 | |
| 21 | 9617374 Evacuation d'eau Usage: 1986-1989 | LH | 1 | |
| 21 | 4049011 Evacuation d'eau Usage: 1989- | LH | 1 | |
| 21 | 9814310 Evacuation d'eau Usage: 1986-1986 | RH | 1 | |
| 21 | 9617366 Evacuation d'eau Usage: 1986-1989 | RH | 1 | |
| 21 | 4049029 Evacuation d'eau Usage: 1989- | RH | 1 | |
| 21 | 9814344 Evacuation d'eau Usage: -1986 | LH | 1 | |
| 21 | 9617382 Evacuation d'eau Usage: 1986-1989 | LH | 1 | |
| 21 | 4048997 Evacuation d'eau Usage: 1989- | LH | 1 | |
| 21 | 9814351 Evacuation d'eau Usage: -1986 | RH | 1 | |
| 21 | 9617390 Evacuation d'eau Usage: 1986-1989 | RH | 1 | |
| 21 | 4049003 Evacuation d'eau Usage: 1989- | RH | 1 | |
| 22 | 9814328 9617358 Evacuation d'eau Usage: 1986-1986 | LH | 1 | |
| 22 | 9617358 Evacuation d'eau Usage: 1986- | LH | 1 | |
| 22 | 9814336 Evacuation d'eau Usage: 1986-1986 | RH | 1 | |
| 22 | 9617341 Evacuation d'eau Usage: 1986- | RH | 1 | |
| 23 | 9746272 Kit de drainage d'eau Usage: 1986-1988 | 1 | |
| 24 | 9746280 Kit de drainage d'eau Usage: -1986 | 1 | |
9288127 Ruban Usage: Butyl tape 6MM diameter, L=8 DM | X |
