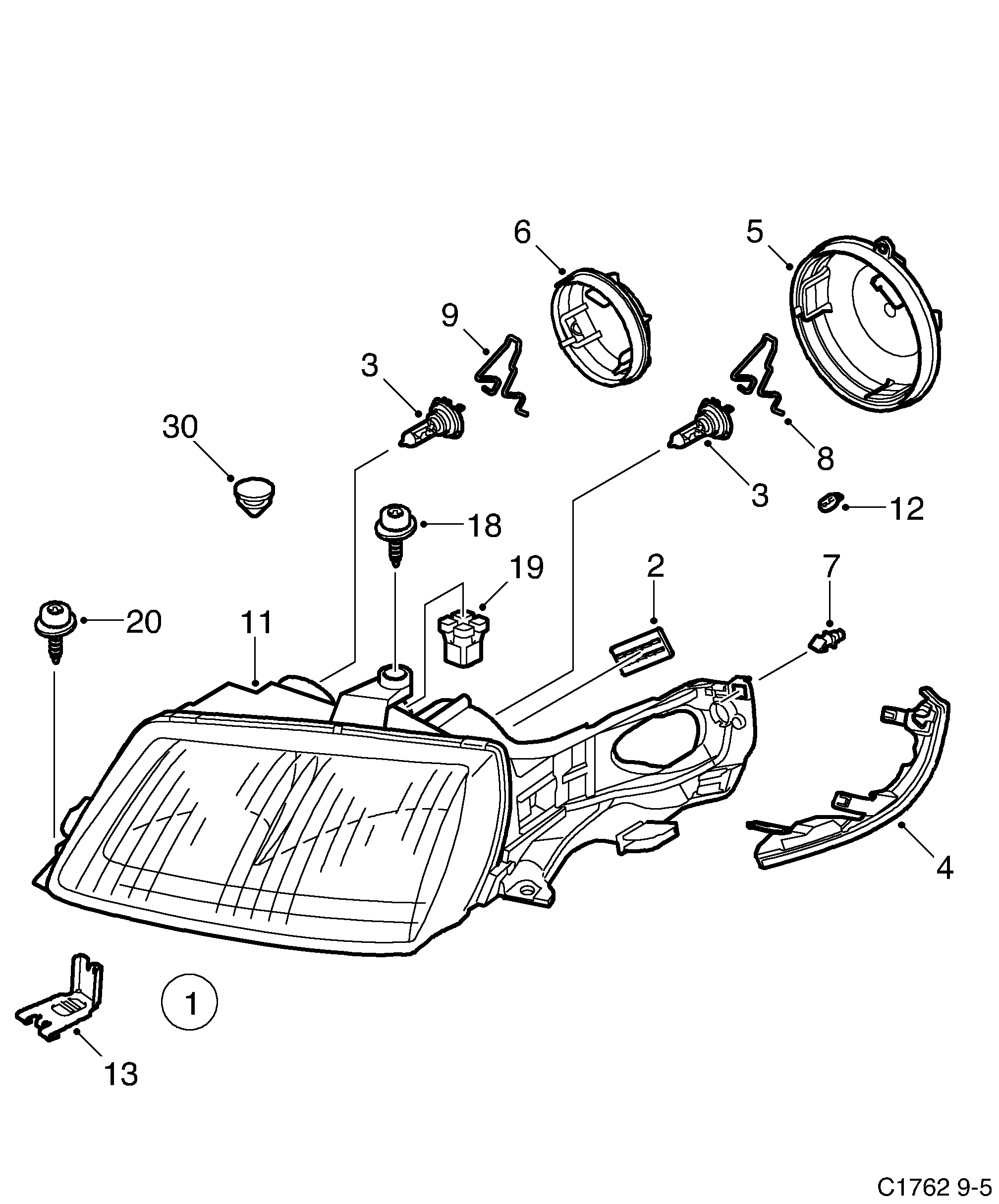

252: Système électrique, généralités - Eclairage - Phare
(2002 - 2005)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 5142070 Phare Usage: Pour circulation à droite | LH | 1 | |
| 1 | 5142088 Phare Usage: Pour circulation à droite | RH | 1 | |
| 1 | 5142096 Phare Usage: Pour circulation à gauche. | LH | 1 | |
| 1 | 5142104 Phare Usage: Pour circulation à gauche. | RH | 1 | |
| 2 | 4114153 12788965 Joint | 1 | |
| 3 | 4685202 93169007 Ampoule | 2 | |
| 4 | 5402342 Joint Usage: LH | 1 | |
| 4 | 5403555 Joint Usage: RH | 1 | |
| 5 | 5402383 Capot | 1 | |
| 6 | 5402391 Capot | 1 | |
| 7 | 5403571 Clip Usage: LH | 1 | |
| 7 | 5402359 Clip Usage: RH | 1 | |
| 8 | 5409610 Ressort | 1 | |
| 9 | 5400007 Ressort | 1 | |
| 11 | 5408513 Boîtier phare Usage: LH | 1 | |
| 11 | 5408521 Boîtier phare Usage: RH | 1 | |
| 12 | 9512880 93190471 Ampoule | 1 | |
| 13 | 5409537 Clip | 1 | |
| 18 | 7985690 Vis Usage: -2003 | 2 | |
| 18 | 4348793 24413560 Vis Usage: 2003- | 2 | |
| 19 | 7982929 92150170 Ecrou de compression Usage: -2003 | 2 | |
| 19 | 4348785 90506890 Clip Usage: 2003- | 2 | |
| 20 | 7982325 92153216 Vis | 4 | |
| 30 | 7982762 92150200 Tampon Usage: 2003-2005 | Radiator member | 2 |
