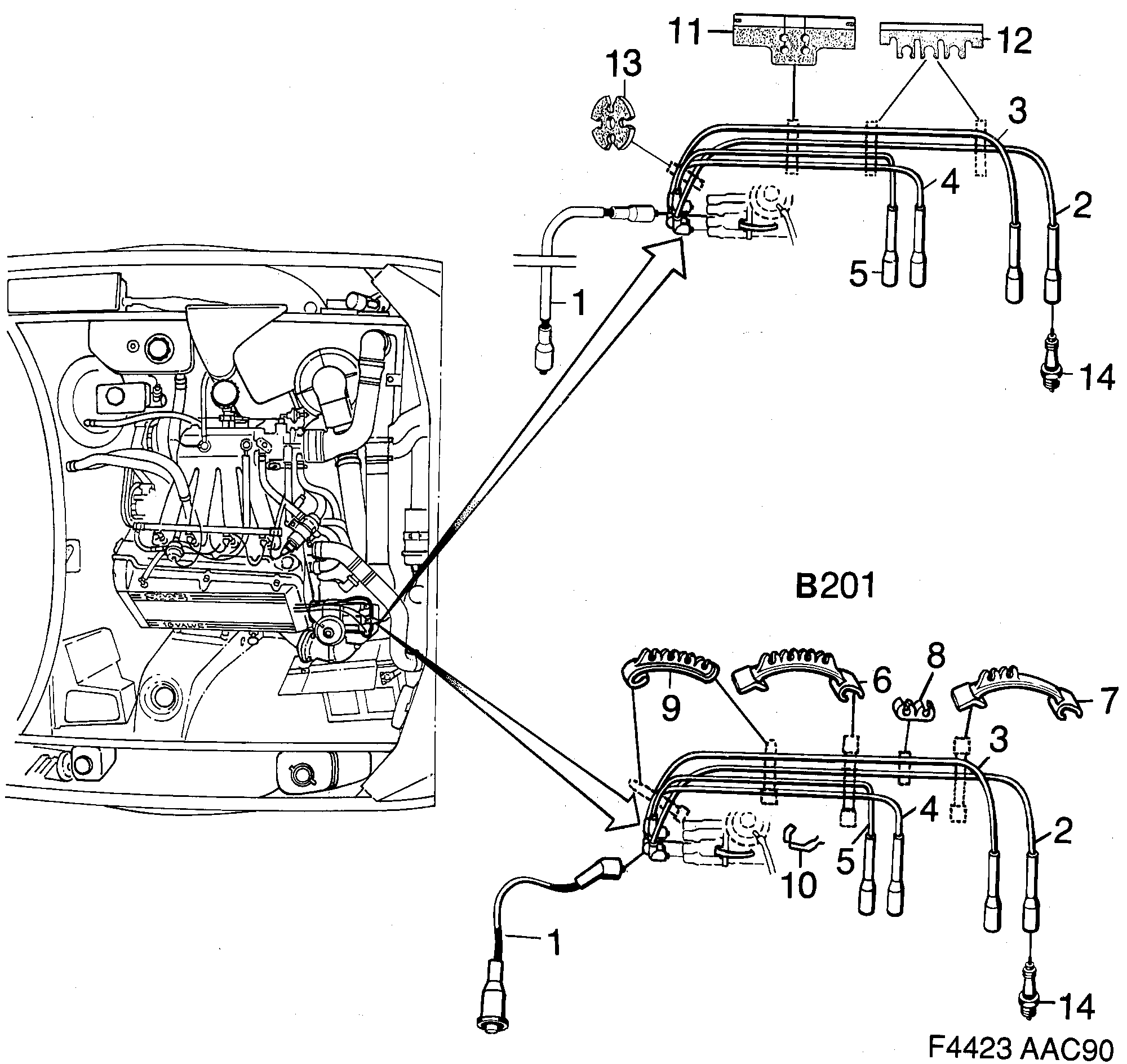

260: Système électrique, généralités - Système d'allumage - Câble d'allumage, - bougies, etc
(1990 - 1993)
Concerne aussi CV 1994
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7511157 Câble allumage Usage: 1990-1990 | B201 | bobine d'allumage | 1 | |
| 1 | 7510548 Câble allumage Usage: B202, B212 | bobine d'allumage | 1 | |
| 2 | 7561061 Câble allumage Usage: 1990-1990 | B201 | cylindre 1 | 1 | |
| 2 | 7504483 Câble allumage Usage: B202, B212 | cylindre 1 | 1 | |
| 3 | 7561079 Câble allumage Usage: 1990-1990 | B201 | cylindre 2 | 1 | |
| 3 | 7504491 Câble allumage Usage: B202, B212 | cylindre 2 | 1 | |
| 4 | 7561087 Câble allumage Usage: 1990-1990 | B201 | cylindre 3 | 1 | |
| 4 | 7504509 Câble allumage Usage: B202, B212 | cylindre 3 | 1 | |
| 5 | 7561095 Câble allumage Usage: 1990-1990 | B201 | cylindre 4 | 1 | |
| 5 | 7504517 Câble allumage Usage: B202, B212 | cylindre 4 | 1 | |
| 6 | 9358086 Retenue | 1 | |
| 7 | 9358094 Retenue | 1 | |
| 8 | 9353673 Support | 1 | |
| 9 | 9358102 Retenue | 2 | |
| 10 | 9353905 Collier serrage Usage: TURBO | 1 | |
| 11 | 7504525 Retenue Usage: B202, B212 | 1 | |
| 12 | 7585540 Retenue Usage: B202, B212 | 2 | |
| 13 | 7506793 Retenue Usage: B202, B212 | 1 | |
| 14 | 8350076 Bougie Usage: B201 | NGK BP6ES | 4 | |
| 14 | 9116385 Bougie Usage: 1990-1991 | B202I, B212I | NGK BCP5ES, | 4 | |
| 14 | 9136276 5958780 Bougie Usage: 1992-1993 | B202I, B212I | NGK BCP5EV, | 4 | |
| 14 | 8819302 5962485 Bougie Usage: B202TURBO | NGK BCP7EV | 4 | |
9337346 Jeu câble allumage Usage: B201 | X | ||
8817314 Jeu câble allumage Usage: B202 | X | ||
8819278 Bougie Usage: B201 | NGK BP6ES | X |
