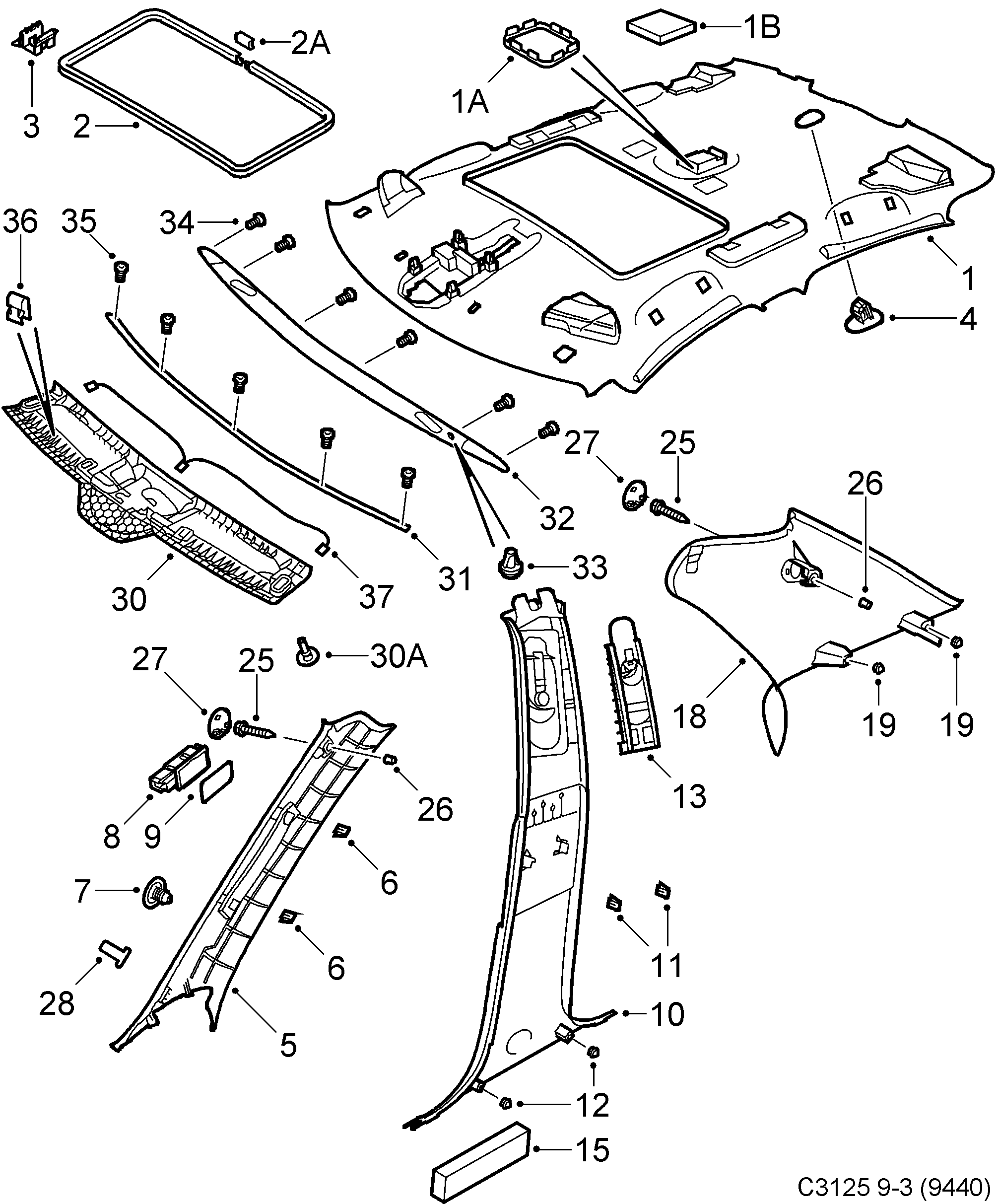

2800: Carrosserie, intérieur - Garnitures - Garniture de toit - Garniture montage portière
(2003 - 2011 | 4D, CV)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 12787518 12755680 Garnissage d'appui-tête Usage: -2004 | 1 | |
| 1 | 12755680 Garnissage d'appui-tête Usage: 2004-2005 | 1 | |
| 1 | 12761126 12844498 Garnissage d'appui-tête Usage: 2005-2007 | 1 | |
| 1 | 12779050 12844498 Garnissage d'appui-tête Usage: 2008-2008 | 1 | |
| 1 | 12844498 Garnissage d'appui-tête Usage: 2009-2011 | 1 | |
| 1 | 12787519 12764784 Garnissage d'appui-tête Usage: -2004 | SR | 1 | |
| 1 | 12755679 12764784 Garnissage d'appui-tête Usage: 2004-2005 | SR | 1 | |
| 1 | 12761125 12844499 Garnissage d'appui-tête Usage: 2005-2007 | SR | 1 | |
| 1 | 12779047 12844499 Garnissage d'appui-tête Usage: 2008-2008 | SR | 1 | |
| 1 | 12844499 Garnissage d'appui-tête Usage: 2009-2011 | SR | 1 | |
| 1A | 12795571 Bague de renforcement | 1 | |
| 1B | 12798251 Entretoise | 2 | |
| 2 | 12794031 Lisse Usage: 2003-2004 | SR | 1 | |
| 2 | 12758880 Lisse Usage: 2005-2011 | SR | 1 | |
| 2A | 12758882 Lisse Usage: 2005-2011 | SR | 1 | |
| 3 | 12765188 Pince serrage Usage: 2003-2004 | X | |
| 4 | 12792581 12796022 Clip Usage: -2005 | 1 | |
| 4 | 12796022 Support Usage: 2003- | 1 | |
| 5 | 12785375 Garniture montage portière Usage: -2005 | LH | 1 | |
| 5 | 12761124 12775969 Garniture montage portière Usage: 2005-2005 | LH | 1 | |
| 5 | 12771203 12775969 Garniture montage portière Usage: 2006-2006 | LH | 1 | |
| 5 | 12775969 Garniture montage portière Usage: 2007-2009 | LH | 1 | |
| 5 | 12775969 Garniture montage portière Usage: 2010-2011 | LH | 1 | |
| 5 | 12844207 Garniture montage portière Usage: 2009-2009 | LH | 1 | |
| 5 | 12785376 Garniture montage portière Usage: -2005 | RH | 1 | |
| 5 | 12761123 12775970 Garniture montage portière Usage: 2005-2005 | RH | 1 | |
| 5 | 12771204 12775970 Garniture montage portière Usage: 2006-2006 | RH | 1 | |
| 5 | 12775970 Garniture montage portière Usage: 2007-2009 | RH | 1 | |
| 5 | 12775970 Garniture montage portière Usage: 2010-2011 | RH | 1 | |
| 5 | 12844208 Garniture montage portière Usage: 2009-2011 | RH | 1 | |
| 5 | 12833173 Garniture montage portière Usage: 2004-2007 | Beige | LH | 1 | |
| 5 | 12833174 Garniture montage portière Usage: 2004-2007 | Beige | RH | 1 | |
| 5 | 12832749 Garniture montage portière Usage: 2004-2007 | Gris | LH | 1 | |
| 5 | 12832750 Garniture montage portière Usage: 2004-2007 | Gris | RH | 1 | |
| 5 | 12773323 Garniture montage portière Usage: 2008-2011 | noir | LH | 1 | |
| 5 | 12773324 Garniture montage portière Usage: 2008-2011 | noir | RH | 1 | |
| 6 | 92152124 12763576 Pince serrage | 2 | |
| 6 | 92152124 12763576 Pince serrage Usage: 2004-2004 | 2 | |
| 7 | 92152268 Clip Usage: 2004-2004 | 2 | |
| 8 | 12785240 12806039 Microphone Usage: 2004-2011 | 1 | |
| 9 | 12833585 Joint Usage: 2004-2011 | 3 | |
| 10 | 12796682 Garniture montage portière Usage: 2003-2011 | Gris | LH | 1 | |
| 10 | 12796684 Garniture montage portière Usage: 2003-2011 | Gris | RH | 1 | |
| 10 | 12796681 Garniture montage portière Usage: Beige | LH | 1 | |
| 10 | 12796683 Garniture montage portière Usage: Beige | RH | 1 | |
| 11 | 92152124 12763576 Pince serrage | 2 | |
| 12 | 92152125 Pince serrage | 2 | |
| 13 | 12789186 Tiroir Usage: LH | 1 | |
| 13 | 12789187 Tiroir Usage: RH | 1 | |
| 10 | 12763563 Garniture montage portière Usage: 2008-2011 | Noir | LH | 1 | |
| 10 | 12763562 Garniture montage portière Usage: 2008-2011 | Noir | RH | 1 | |
| 15 | 12799335 Entretoise | 2 | |
| 18 | 12785379 Garniture montage portière Usage: -2005 | LH | 1 | |
| 18 | 12761122 12775971 Garniture montage portière Usage: 2005-2006 | LH | 1 | |
| 18 | 12769374 12775971 Garniture montage portière Usage: 2006-2006 | LH | 1 | |
| 18 | 12771197 12775971 Garniture montage portière Usage: 2007-2011 | LH | 1 | |
| 18 | 12785380 Garniture montage portière Usage: -2005 | RH | 1 | |
| 18 | 12761121 12775972 Garniture montage portière Usage: 2005-2006 | RH | 1 | |
| 18 | 12769375 12775972 Garniture montage portière Usage: 2006-2006 | RH | 1 | |
| 18 | 12771198 12775972 Garniture montage portière Usage: 2007-2011 | RH | 1 | |
| 19 | 92152125 Pince serrage Usage: 2003-2004 | 2 | |
| 19 | 4644670 Pince serrage Usage: 2005-2011 | 2 | |
| 25 | 11900325 Vis | 4 | |
| 26 | 92152291 Ecrou rivet | 4 | |
| 27 | 12796680 12771202 Couvercle Usage: (AIRBAG) | 4 | |
| 28 | 12785368 Serre-billets Usage: 2003-2007 | 1 | |
| 28 | 12841543 Fixation Usage: 2008-2011 | 1 | |
| 30 | 12833191 Garniture habitacle Usage: 2004-2011 | Beige | 1 | |
| 30 | 12833192 Garniture habitacle Usage: 2004-2007 | Gris | 1 | |
| 30 | 12773457 Plaque Usage: 2008-2011 | noir | 1 | |
| 30A | 4518668 Amortisseur caoutchouc | 2 | |
| 31 | 12831313 Joint Usage: 2004-2011 | 1 | |
| 32 | 12831561 Garniture habitacle Usage: 2004-2011 | 1 | |
| 33 | 12830928 Clip Usage: 2004-2011 | 1 | |
| 34 | 92152257 Clip Usage: 2004-2011 | 6 | |
| 35 | 92150177 92153058 Rivet borgne Usage: 2004-2009 | 5 | |
| 35 | 92153058 Rivet Usage: 2010-2011 | 5 | |
| 36 | 92152124 12763576 Pince serrage Usage: 2004-2011 | 4 | |
| 37 | 12830813 Câblage Usage: 2004-2011 | 1 |
